B1B94






B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the seat track position sensors to verify the integrity of the sensors and wiring. The use of the SRS Load Tool Kit 8443 in the tests below provides a test point in place of the module.
- When Monitored:
While the CAN bus ignition status is in IGN_RUN with a minimum of 8.5 volts at startup and the module is configured for a Passenger Seat Track Position Sensor, the module checks the sensor input current ranges.

- Set Condition:
If the module detects that the sensor input is greater than 5K Ohms for a minimum of 2 seconds.





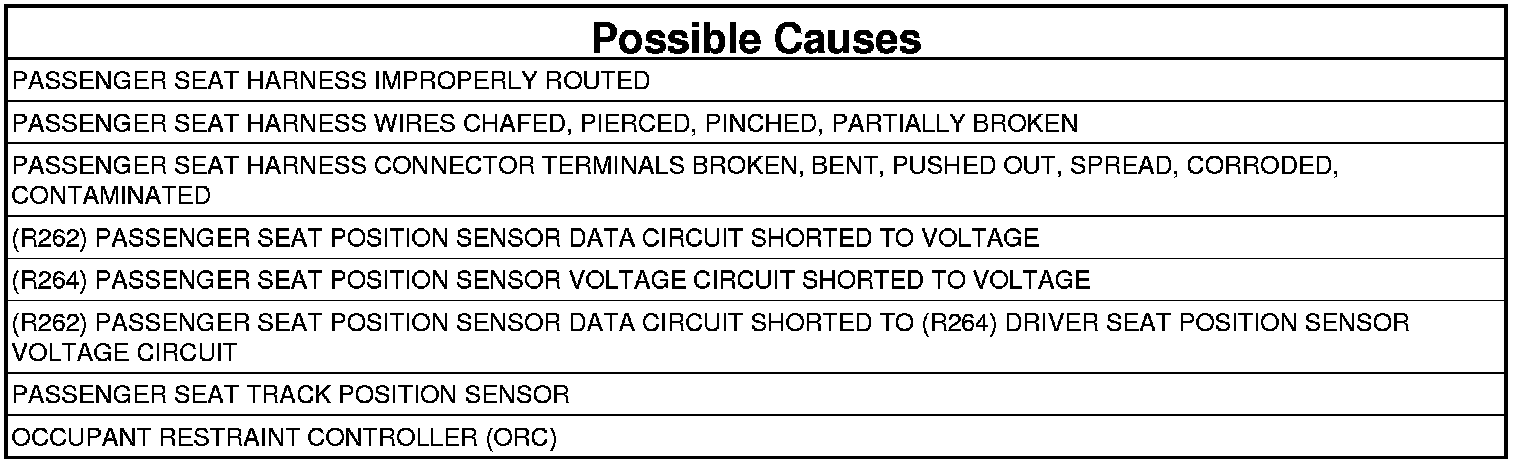

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

1. IDENTIFYING VEHICLE EQUIPMENT

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC active DTCs.

Does the scan tool display active DTC: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. . Restraints System Intermittent Condition Test

2. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)
1. With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

- Diagnose and repair the DTCs. Testing and Inspection for a complete list of diagnostic procedures.

No

- Go To 3

3. INSPECT DRIVER SEAT HARNESS WIRES AND CONNECTORS

WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Using the wiring diagram/schematic as a guide, inspect the driver seat harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of these conditions present?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the passenger seat harness.
- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. . Restraints System Intermittent Condition Test

No

- Go To 4

4. VERIFY THAT DRIVER SEAT HARNESS IS ROUTED CORRECTLY
1. Verify that the driver seat harness is routed correctly.

Is the Driver Seat Harness routed correctly?

Yes

- Go To 5

No

- Reroute the driver seat harness as necessary.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

5. CHECK FOR DTC B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH WITH PASSENGER SEAT TRACK POSITION SENSOR DISCONNECTED

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Passenger Seat Track Position Sensor connector.

WARNING: Turn the ignition on, then reconnect the battery and wait two minutes to proceed. Failure to follow these instructions may result in possible serious or fatal injury.

2. Wait two minutes, and then with the scan tool, read ORC DTCs.

Does the scan tool display: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes

- Go To 6

No

- WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Passenger Seat Track Position Sensor.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

6. CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT AND (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO VOLTAGE





WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the ORC connectors.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

2. Measure the voltage of the (R262) Passenger Seat Position Sensor Data circuit at the Driver Seat Track Position Sensor connector cavity 1.
3. Measure the voltage of the (R264) Passenger Seat Position Sensor Voltage circuit at the Driver Seat Track Position Sensor connector cavity 2.

Is the voltage above 0.2 of a volt on either circuit?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Passenger Seat Harness.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

7. CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT FOR A SHORT TO (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT

WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Measure the resistance between the (R262) Passenger Seat Position Sensor Data circuit cavity 1 and the (R264) Passenger Seat Position Sensor Voltage circuit cavity 2 in the Passenger Seat Track Position Sensor connector.

Is the resistance below 10K Ohms?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

- Replace the Passenger Seat Harness.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Replace the ORC.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
