Radio Amplifier C2 (Midline II/Highline) (Instrument Panel) 20 Way

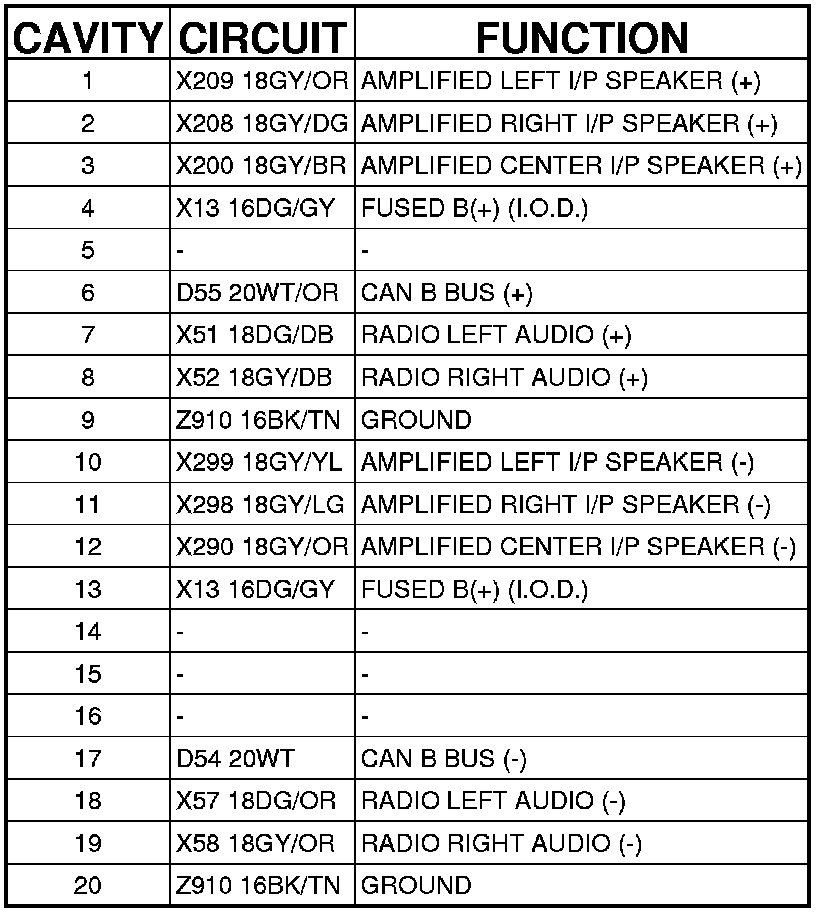

Connector C2 (MIDLINE II/HIGHLINE) - (INSTRUMENT PANEL) 20 WAY

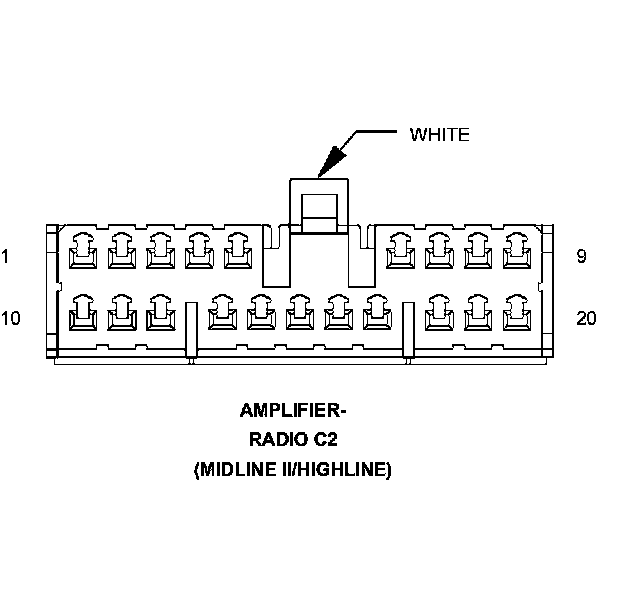

AMPLIFIER-RADIO (MIDLINE II/HIGHLINE) - (INSTRUMENT PANEL) 20 WAY
