C105 (Export/Police) (Body Side) 8 Way
C105 (Export/Police) (Body Side) 8 Way

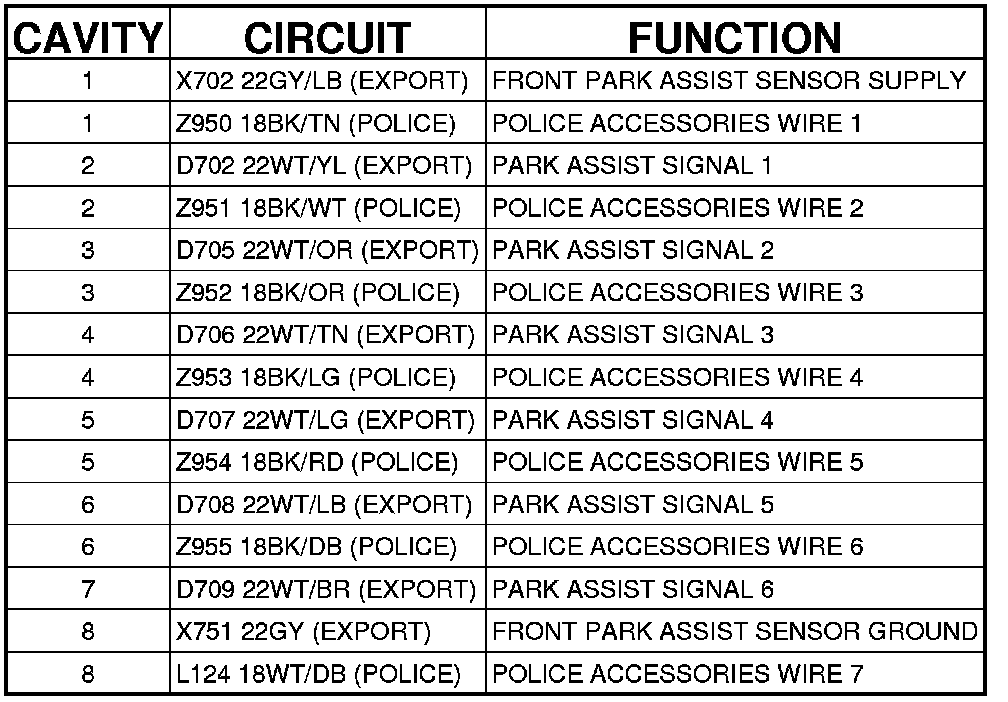

Connector (EXPORT/POLICE) - (BODY SIDE) 8 WAY

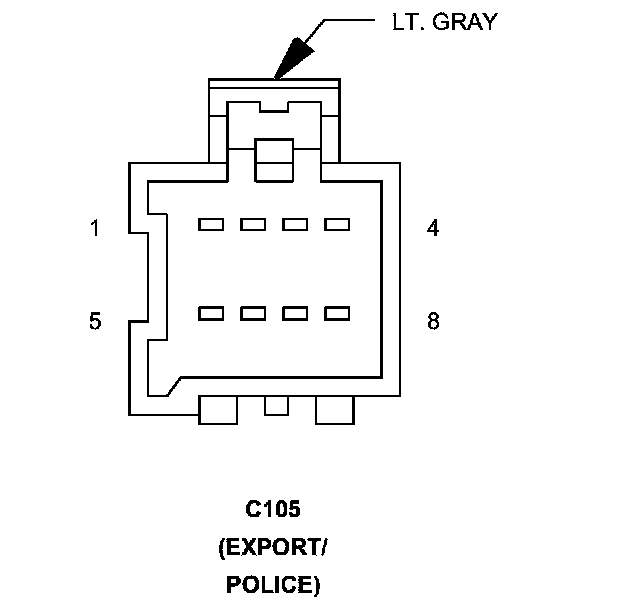

C105 (EXPORT/POLICE) - (BODY SIDE) 8 WAY
