C110 (AWD) (Headlamp And Dash Side) 4 Way
C110 (AWD) (Headlamp And Dash Side) 4 Way

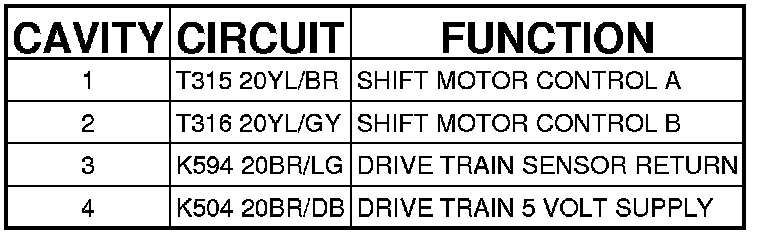

Connector (AWD) - (
HEADLAMP
AND DASH SIDE) 4 WAY

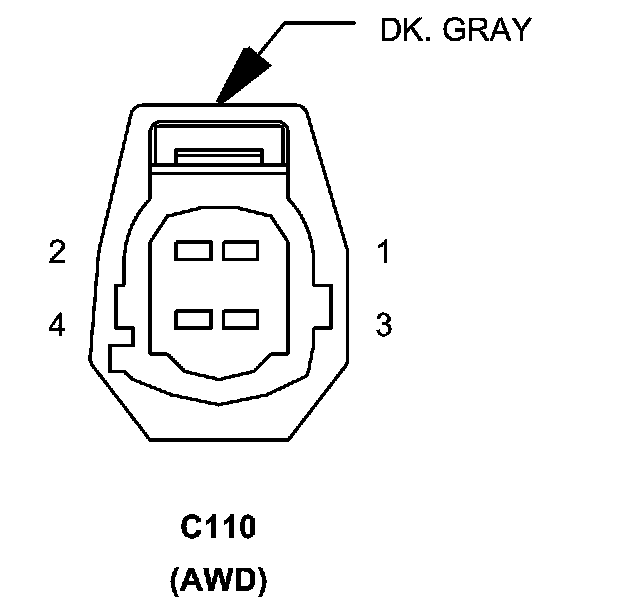

C110 (AWD) - (
HEADLAMP
AND DASH SIDE) 4 WAY
