Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

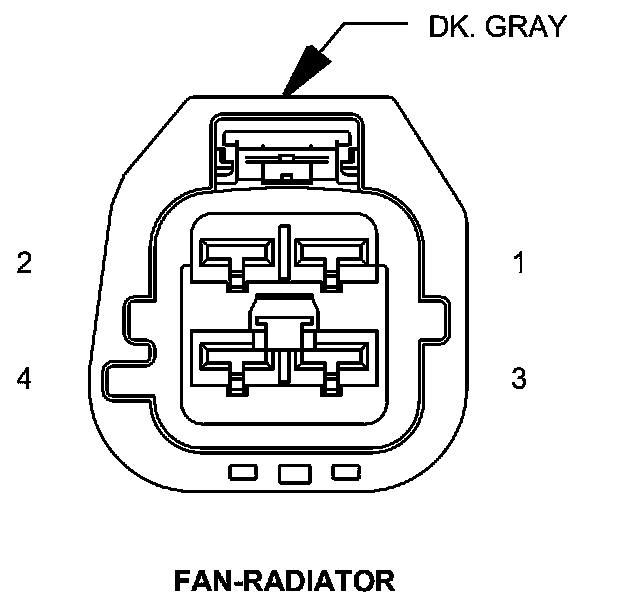

Connector - (HEADLAMP AND DASH) 4 WAY

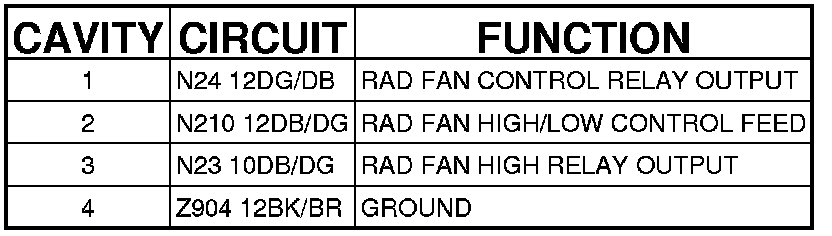

FAN-RADIATOR - (HEADLAMP AND DASH) 4 WAY
