Solenoid, Differential Lock
Solenoid, Differential Lock

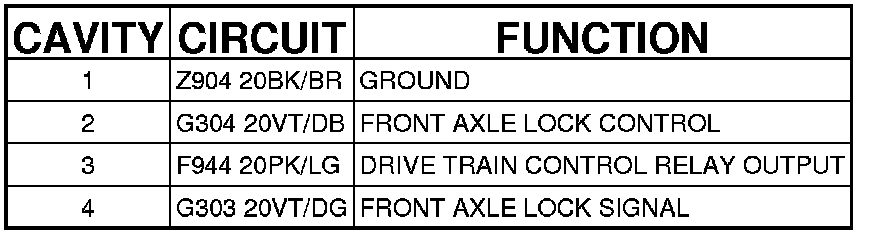

Connector (AWD) - (HEADLAMP AND DASH) 4 WAY
MODULE-AXLE DISCONNECT-FRONT (AWD) - (HEADLAMP AND DASH) 4 WAY
