Variable Induction Control Solenoid
Variable Induction Control Solenoid

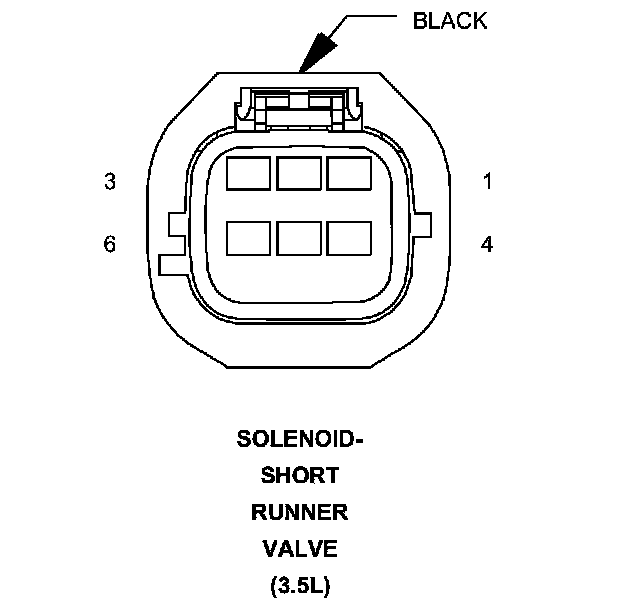

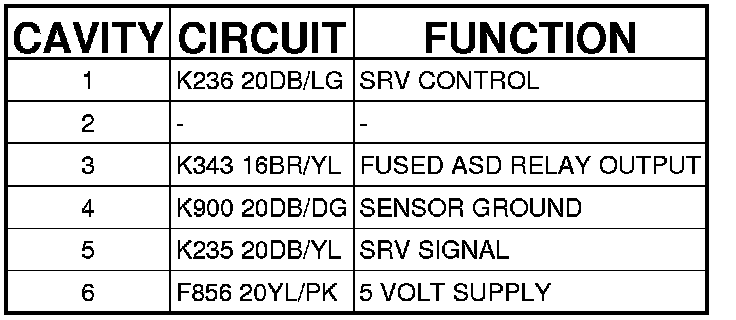

Connector (3.5L) - (ENGINE) 6 WAY
SOLENOID
-SHORT RUNNER VALVE (3.5L) - (ENGINE) 6 WAY
