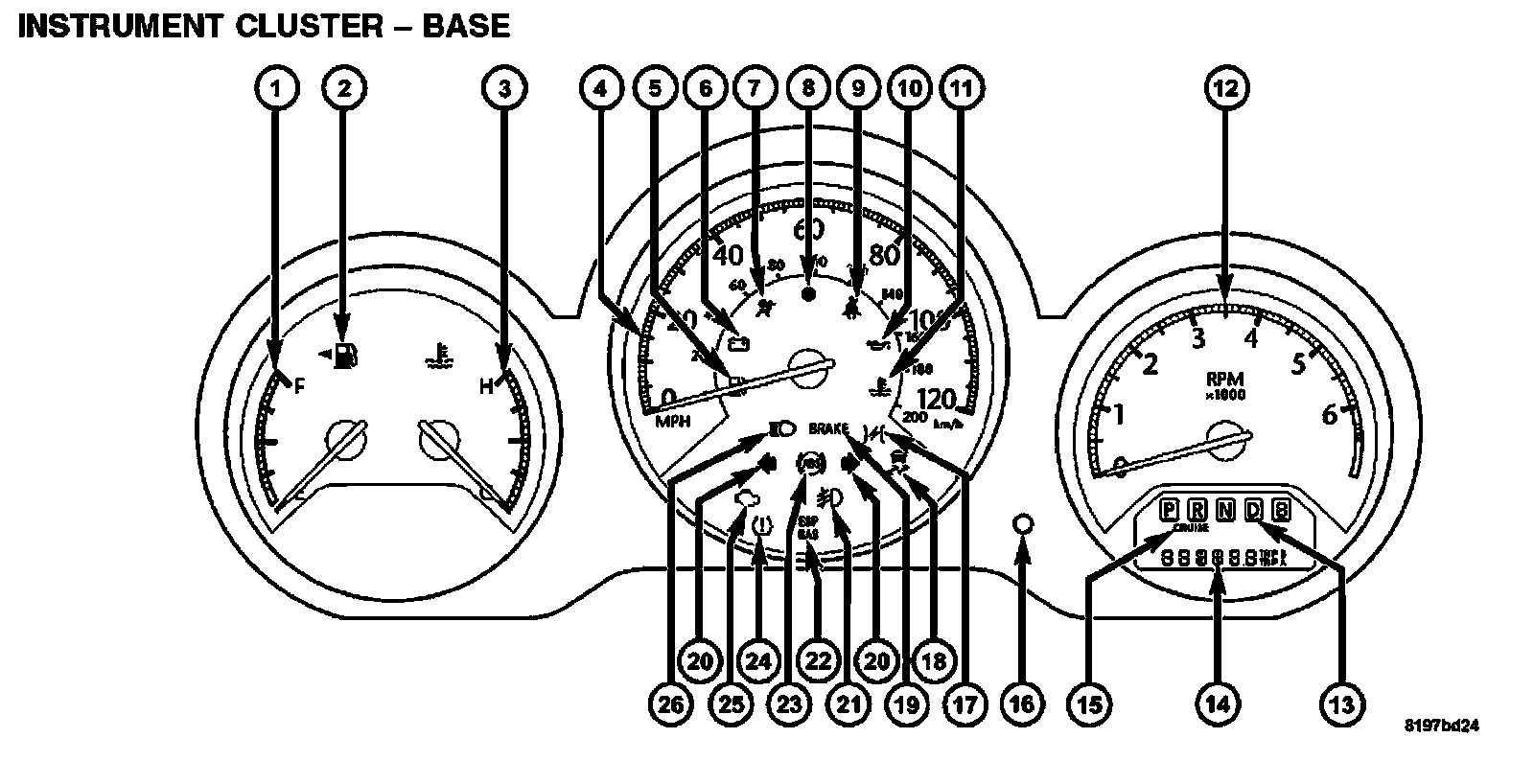

Indicator Lamp Identification

1. Fuel Gauge
2. Fuel Door Reminder
3. Temperature Gauge
4. Speedometer
5. Low Fuel Light
6. Charging System Light
7. Airbag Warning Light
8. Vehicle Security Light - If Equipped
9. Seat Belt Reminder Light
10. Oil Pressure Warning Light
11. Engine Temperature Warning Light
12. Tachometer
13. Shift Lever Indicator
14. Odometer/Trip Odometer
- Vehicle Warning Messages
- LoW TirE
- HOTOIL
- GASCAP
- CHAngE OIL
15. Cruise Indicator - If Equipped
16. Odometer/Trip Odometer Reset Button
17. Electronic Throttle Control (ETC) Indicator Light
18. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light - If Equipped
19. Brake Warning Light
20. Turn Signal Indicators
21. Front Fog Light Indicator - If Equipped
22. Electronic Stability Program (ESP) Indicator Light/Brake Assist System (BAS) Indicator Light
23. Anti-Lock Brake (ABS) Light - If Equipped
24. Tire Pressure Monitoring Telltale Light
25. Malfunction Indicator Light (MIL)
26. High Beam Indicator
27. Electronic Vehicle Information Center (EVIC) Display - Premium Cluster Only
