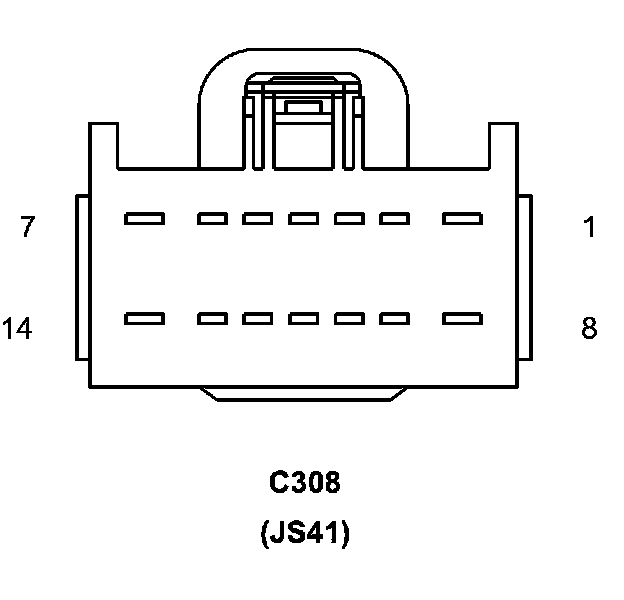

C308 (JS41) (Body Side) 14 Way
C308 (JS41) (Body Side) 14 Way

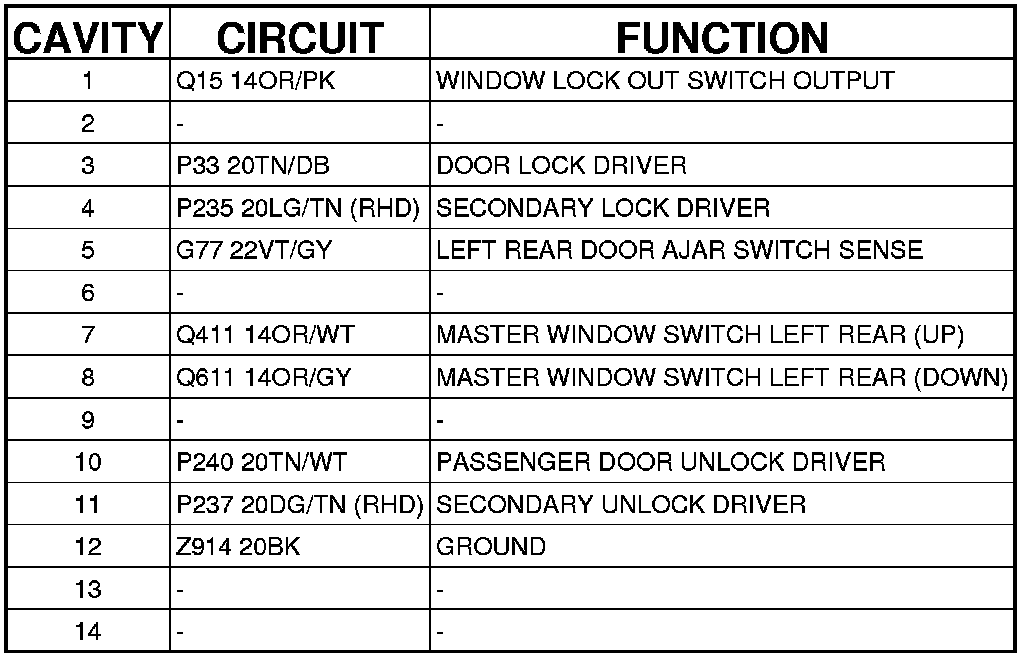

Connector (JS41) - (BODY SIDE) 14 WAY
C308 (JS41) - (BODY SIDE) 14 WAY
