Front Tension Strut - Installation

INSTALLATION






NOTE: If installing a tension strut engine cradle bolt that is a wheel alignment adjustment bolt (lengthwise grooved shaft (2)), make sure to install it in the same position which it was in upon removal. For more details on installation of this special bolt, Service and Repair .

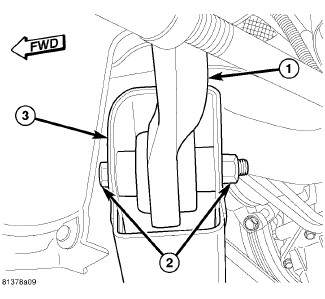

1. Slide bushing end of tension strut (1) into cradle bracket (3).
2. Install mounting bolt (2) from front through cradle and bushing.
3. Install nut (2), but do not tighten at this time.





4. Insert tension strut (2) ball joint stud downward, into knuckle hole.
5. Completely install NEW nut (3) on ball joint stud attaching tension strut (2) to knuckle (1). Tighten nut by holding ball joint stud with a hex wrench while turning nut with a wrench. Tighten nut using crow foot wrench on torque wrench to 68 Nm + 90° turn (50 ft. lbs. + 90° turn).

6.



Install tire and wheel assembly (1) Tires and Wheels - Installation. Tighten wheel mounting nuts (3) to 150 Nm (110 ft. lbs.) (Police - 190 Nm (140 ft. lbs.)).
7. Lower vehicle.
8. Position vehicle on an alignment rack/drive-on lift.





9. Perform wheel alignment. Service and Repair

CAUTION: If the tension strut engine cradle bolt is a wheel alignment adjustment bolt (lengthwise grooved shaft (2)), be sure to only tighten the nut. Do not rotate the bolt head (1) or damage to the bushing will occur.






10. Once alignment is found to be within specifications, using a crowfoot wrench, tighten tension strut cradle bolt nut (2) to 176 Nm (130 ft. lbs.) while holding the bolt stationary.
11. Install belly pan Belly Pan - Installation
