Police/Taxi Interface Module - Installation

INSTALLATION





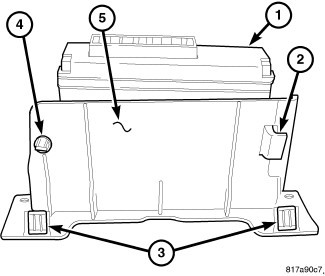

1. Install the Police/Taxi Interface Module (PTIM) (1) onto the mounting bracket (5) by inserting the locating tab (2) and rotating the PTIM downward until the retaining clip (4) is securely snapped into place.





2. Position the PTIM (3) into the vehicle and connect the electrical connectors (2).





3. Push the PTIM (1) forward to insert the PTIM mounting bracket clips into the instrument panel center stack (2).
4. Install the retaining screws (3).





5. Position the console into the vehicle.
6. Connect the power outlet (4) electrical connector (6)
7. Push forward to insert the console mounting clips into the instrument panel (1). Lower the console (3) onto the mounting stud (5) and install the retaining nut (2).

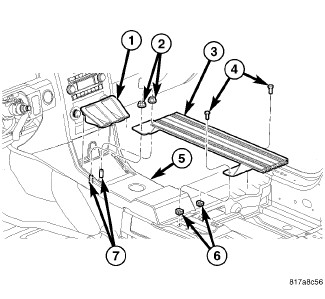

8. Position the accessory mounting bracket (3) into the vehicle and onto the mounting studs (7).
9. Install the nuts (2) and screws (4) that secure the accessory mounting bracket (3).
10. Install the console cubby bin (1).
11. Connect the battery negative cable.
