B1C2A
B1C2A-LEFT SIDE SEAT THORAX SQUIB 1 SHORTED TOGETHER
Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the squibs to verify the integrity of the squib and wiring. These circuits are maintained in a "floating" configuration at the module (connected to neither power nor ground) as protection against inadvertent deployment. Use of the SRS Load Tool Kit 8443A in the tests below substitutes a suspect squib with a known good component. The use of the SRS Load Tool Adapter provides a test point as well as a method for opening the shorting bar connections within the harness connector.
- When Monitored:
With the ignition on.
- Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Left Seat Airbag circuits. If low resistance is detected between the Left Seat Airbag circuits the ORC will set this DTC.
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure that the battery is fully charged.
NOTE: The scan tool, SRS Load Tool Kit 8443A, and DVOM are required to perform the following test.
1. Turn the ignition on.
Select ACTIVE or STORED DTC:
ACTIVE DTC
- Go To 2
STORED DTC
- Go To 5
2. CHECK FOR SHORTED SQUIB CIRCUITS IN THE LEFT SEAT AIRBAG
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Left Seat Airbag harness connector.
WARNING: Do not place an intact non-deployed Seat Squib Airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.
NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-1 to the Left Seat Airbag harness connector.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC.
Does the scan tool display: B1C2A-LEFT SIDE SEAT THORAX SQUIB 1 SHORTED TOGETHER?
Yes
- Go To 3
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Left Seat Airbag.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
3. CHECK FOR LEFT SEAT AIRBAG SQUIB CIRCUITS SHORTED TOGETHER IN THE SEAT BACK
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Left Seat Airbag C322 harness connector (under Left Seat).
NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-20 to the Left Seat Airbag C322 harness connector.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC.
Does the scan tool display: B1C2A-LEFT SIDE SEAT THORAX SQUIB 1 SHORTED TOGETHER?
Yes
- Go To 4
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- In accordance with the Service Information repair or replace the Left Seat Airbag wiring harness (Side Airbag Jumper). Circuits (R5) and (R7) shorted together between the C322 harness connector and the Left Seat Airbag connector.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
4. CHECK (R5) LEFT SEAT SQUIB 1 LINE 2 CIRCUIT FOR A SHORT TO (R7) LEFT SEAT SQUIB 1 LINE 1 CIRCUIT
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-20 from the Left Seat Airbag harness connector.
2. Disconnect the ORC harness connectors.
NOTE: Check connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adapter 8443-24 to the ORC harness connectors.

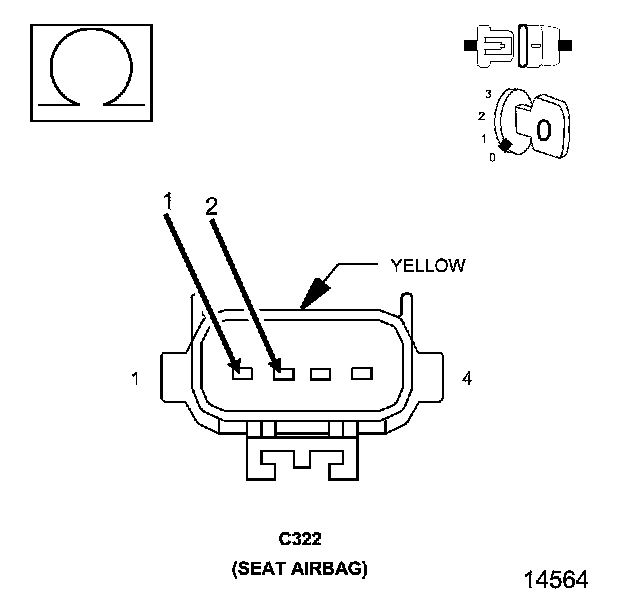

4. Measure the resistance between the (R5) Left Seat Squib 1 Line 2 circuit cavity 1 and the (R7) Left Seat Squib 1 Line 1 circuit cavity 2 at the C322 harness connector.
Is the resistance below 10K Ohms?
Yes
- In accordance with the Service Information repair or replace the Left Seat Airbag wiring harness. Circuits (R5) and (R7) shorted together between the C322 harness connector and the ORC C1 (32 way) harness connector.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.
- Replace the ORC.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
5. CHECKING STORED OR INTERMITTENT CODES
NOTE: Diagnose and repair all active codes before diagnosing stored codes.
1. With the scan tool, record and erase all Airbag System Module DTCs.
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
3. Reconnect all disconnected components and harness connectors.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, monitor for active codes while performing the following:
WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
- Wiggle the wiring harness and connectors of the related airbag circuit.
- Continue the test until either a code becomes active or the problem area is isolated.
5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question/causing the intermittent condition.
Are any ACTIVE DTCs present?
Yes
- Follow the diagnostics of the indicated DTCs. Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- No problem found at this time. Erase all codes before returning the vehicle to the customer.
