B1D56
B1D56-ADJUSTABLE PEDAL SENSOR CIRCUIT LOW
- When Monitored:
The Adjustable Pedal Motor is in active operation.
- Set Condition:
The Memory Seat Module (MSMD) detects a low signal circuit voltage that is not within voltage specification from the Adjustable Pedal Sensor.

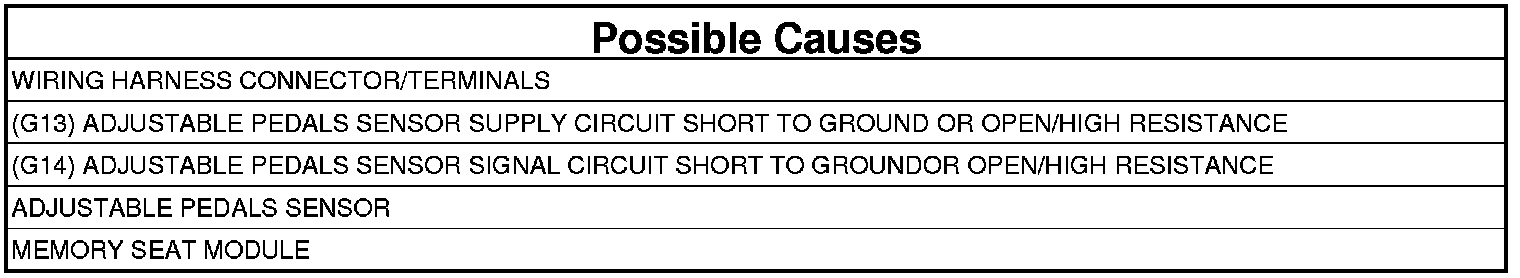

1. DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE
NOTE: This DTC must be active for the results of this test to be valid.
1. Turn the ignition on.
2. Using the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. Cycle the Adjustable Pedals Switch forward and rearward.
5. Using the scan tool, read DTCs.
Is the status active for this DTC?
Yes
- Go To 2
No
- Go to and perform the APS INTERMITTENT CONDITION procedure. Testing and Inspection
2. CHECK CONNECTOR/TERMINAL FOR DAMAGE
NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.
1. Turn the ignition off.
2. Inspect the Seat Memory Module harness connector, Adjustable Pedals Sensor, and Adjustable Pedals Sensor harness connector.
Is the Adjustable Pedals Sensor or any of the connectors/terminals damaged?
Yes
- Repair as necessary.
- Perform the APS VERIFICATION TEST. APS Verification Test
No
- Go To 3
3. (G13) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT VOLTAGE
1. Disconnect the Seat Memory Module harness connector.
2. Disconnect the Adjustable Pedals Sensor harness connector.
3. Using a 12-volt test light connected to 12-volts, probe the (G13) Adjustable Pedals Sensor Supply circuit at the Memory Seat Module C1 harness connector.
Does the test light illuminate brightly?
Yes
- Repair the (G13) Adjustable Pedals Sensor Supply circuit for a short to ground.
- Perform the APS VERIFICATION TEST. APS Verification Test
No
- Go To 4
4. (G13) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT SHORT TO GROUND
1. Connect a jumper wire between the (G13) Adjustable Pedals Sensor Supply circuit and ground at the Adjustable Pedal Sensor harness connector.
2. Using a 12-volt test light connected to 12-volts, probe the (G13) Adjustable Pedals Sensor Supply circuit at the Memory Seat Module C1 harness connector.
Does the test light illuminate brightly
Yes
- Go To 5
No
- Repair the (G13) Adjustable Pedals Sensor Supply circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test
5. (G14) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT OPEN

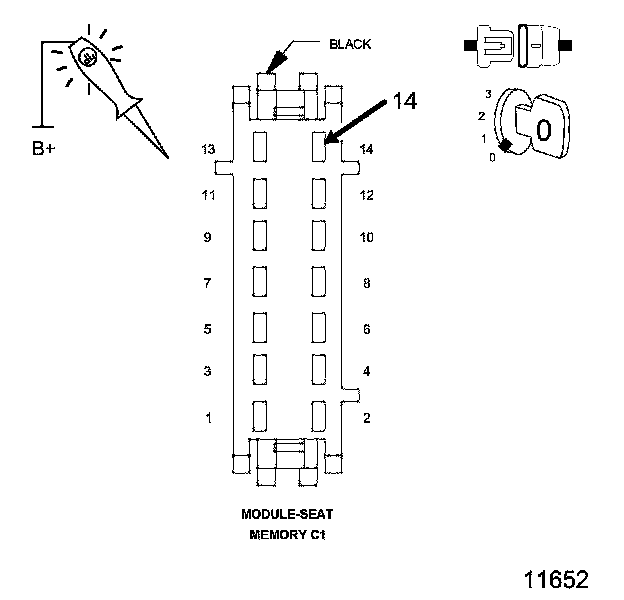

1. Using a 12-volt test light connected to 12-volts, probe the (G14) Adjustable Pedals Sensor Signal circuit at the Memory Seat Module C1 harness connector.
Does the test light illuminate brightly?
Yes
- Repair the (G14) Adjustable Pedals Sensor Signal circuit for a short to ground.
- Perform the APS VERIFICATION TEST. APS Verification Test
No
- Go To 6
6. (G14) ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT SHORT TO GROUND
1. Connect a jumper wire between the (G14) Adjustable Pedals Sensor Signal circuit and ground at the Adjustable Pedal Sensor harness connector.

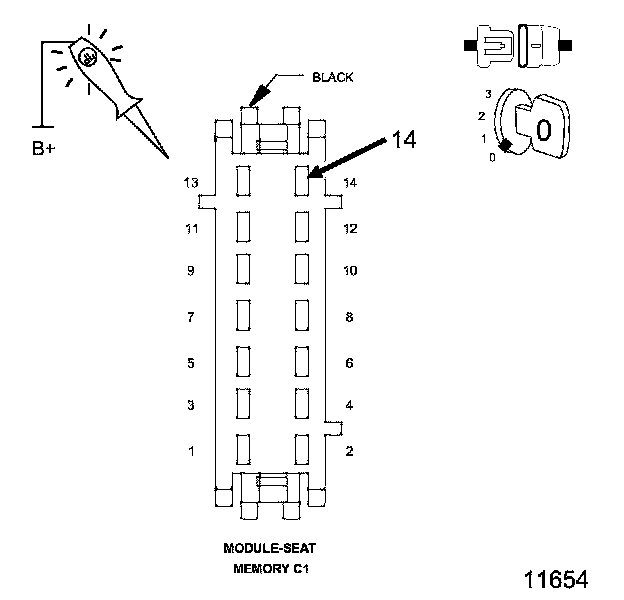

2. Using a 12-volt test light connected to 12-volts, probe the (G14) Adjustable Pedals Sensor Signal circuit at the Memory Seat Module C1 harness connector.
Does the test light illuminate brightly?
Yes
- Go To 7
No
- Repair the (G14) Adjustable Pedals Sensor Signal circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test
7. (G13) ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT FOR AN OPEN
1. Measure the voltage between the (G13) Adjustable Pedals Sensor Supply circuit and ground at the Adjustable Pedal Sensor harness connector.
Is the voltage between 4.0 and 5.0 volts?
Yes
- Go To 8
No
- Replace and reprogram the Seat Memory Module.
- Perform the APS VERIFICATION TEST. APS Verification Test
8. (G14) ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT VOLTAGE
1. Reconnect Adjustable Pedal Sensor harness connector.
2. Turn ignition on.

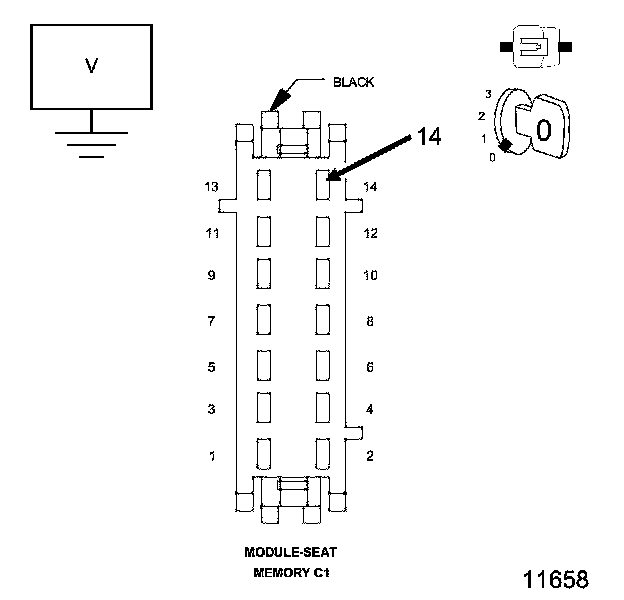

3. Measure the voltage of the (G14) Adjustable Pedals Sensor Signal circuit in the Seat Memory Module C1 harness connector.
Is the voltage above 0.5 volts?
Yes
- Replace the Seat Memory Module.
- Perform the APS VERIFICATION TEST. APS Verification Test
No
- Replace the Adjustable Pedals Sensor.
- Perform the APS VERIFICATION TEST. APS Verification Test
