B1D67

B1D67-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE







- When Monitored:
The Adjustable Pedals Motor is in active operation.

- Set Condition:
The Memory Seat Module (MSMD) detects that the Adjustable Pedals Motor has been activated in each direction and has not moved within two seconds.





1. DIAGNOSTIC TROUBLE CODES (DTC) IS ACTIVE
1. Turn the ignition on.
2. Using the scan tool, select view DTCs. Record all DTC and DTC Environmental data.
3. Using the scan tool, clear stored DTCs.
4. Cycle the ignition switch off then on.
5. Move the Adjustable Pedals Switch forward and rearward several times.
6. Using the scan tool, select view DTCs.

Is the status active for this DTC?

Yes

- Go To 2

No

- Go to and perform the APS INTERMITTENT CONDITION procedure. Testing and Inspection

2. WIRING HARNESS CONNECTOR/TERMINALS
1. Turn the ignition off.
2. Disconnect the Memory Seat Module harness connector.
3. Disconnect the Adjustable Pedals Motor harness connector.
4. Disconnect the Adjustable Pedals Sensor harness connector.
5. Inspect the wiring harness, connectors and terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform the APS VERIFICATION TEST. APS Verification Test

No

- Go To 3

3. ADJUSTABLE PEDALS ASSEMBLY
1. Turn the ignition off.
2. Inspect the Adjustable Pedals Assembly for a condition that would cause the motor to stick or stall.

Were any problems found?

Yes

- Replace the Adjustable Pedals Assembly.
- Perform the APS VERIFICATION TEST. APS Verification Test

No

- Go To 4

4. (P205) ADJUSTABLE PEDALS MOTOR FORWARD CIRCUIT OPEN OR HIGH RESISTANCE

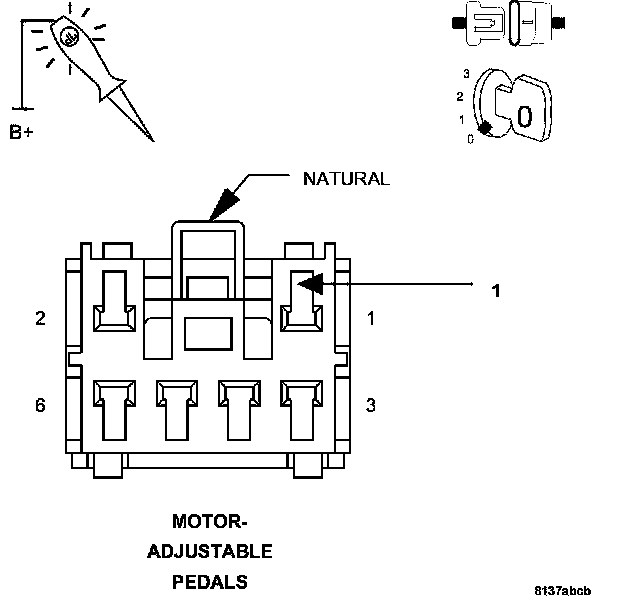

1. Connect a jumper wire between the (P205) Adjustable Pedals Motor Forward circuit and ground at the Adjustable Pedals Motor harness connector.
2. Using a 12-volt test light connected to 12-volts, check the (P205) Adjustable Pedals Motor Forward circuit at the Memory Seat Module harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

- Go To 5

No

- Repair the (P205) Adjustable Pedals Motor Forward circuit for an open circuit or high resistance.
- Perform the APS VERIFICATION TEST. APS Verification Test

5. (P206) ADJUSTABLE PEDALS MOTOR REARWARD CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE




1. Connect the jumper wire between the (P206) Adjustable Pedals Motor Rearward circuit and ground at the Adjustable Pedals Motor harness connector.
2. Using a 12-volt test light connected to 12-volts, check the (P206) Adjustable Pedals Motor Rearward circuit at the Memory Seat Module harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

- Go To 6

No

- Repair the (P206) Adjustable Pedals Motor Rearward circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test

6. (G914) SENSOR RETURN CIRCUIT OPEN OR HIGH RESISTANCE




1. Connect the jumper wire between the (G914) Sensor Return circuit and ground at the Adjustable Pedals Motor harness connector.
2. Using a 12-volt test light connected to 12-volts, check the (G914) Sensor Return circuit at the Memory Seat Module harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

NOTE: Remove the jumper wire before proceeding to the next test.

Does the test light illuminate brightly?

Yes

- Go To 7

No

- Repair the (G914) Sensor Return circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test

7. ADJUSTABLE PEDALS MOTOR




1. Turn the ignition off.
2. Disconnect the Adjustable Pedals Motor harness connector.

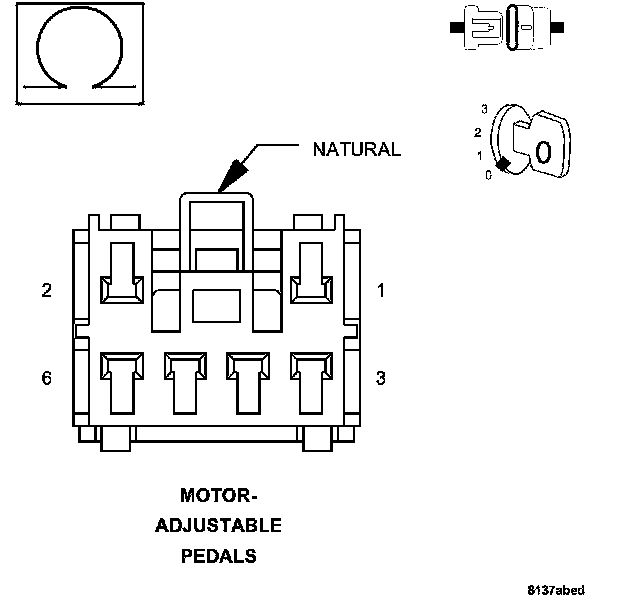

3. Measure the resistance between the (P205) Adjustable Pedals Motor Forward circuit and the (P206) Adjustable Pedals Motor Rearward circuit at the terminals of the Adjustable Pedals Motor.

Is the resistance below 100.0 ohms?

Yes

- Replace and reprogram the Memory Seat Module.
- Perform the APS VERIFICATION TEST. APS Verification Test

No

- Replace the Adjustable Pedals Motor.
- Perform the APS VERIFICATION TEST. APS Verification Test
