U0010

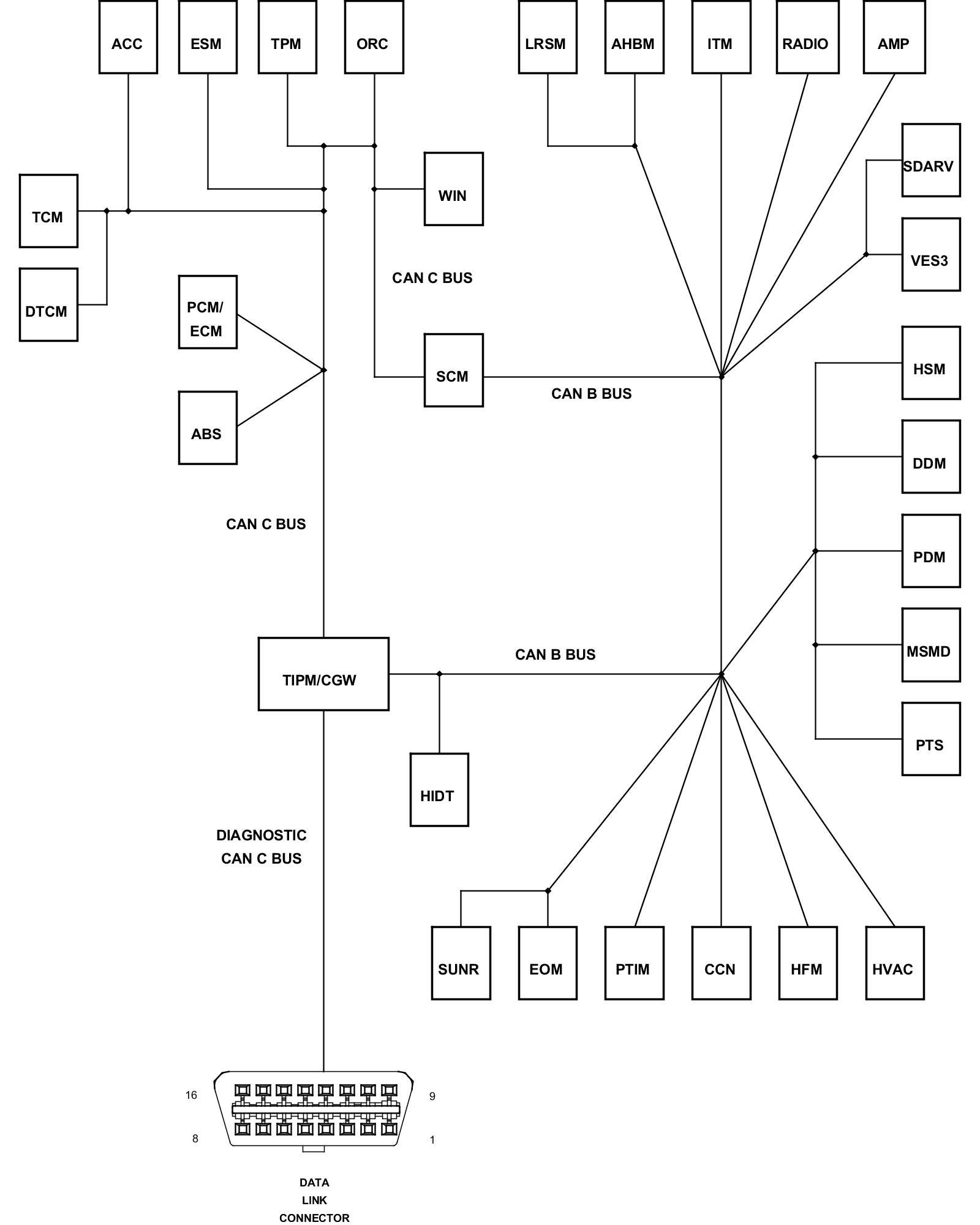

U0010-00-CAN INTERIOR BUS







- When Monitored:
Continuously when the ignition is on.

Battery voltage between 10 and 16 volts.

Ignition Off Draw (IOD) fuse installed.

Totally Integrated Power Module (TIPM) is configured correctly.

- Set Condition:
The Park Assist Module detects a short to ground or a short to voltage on the CAN Bus circuits.





VERIFY DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE

NOTE: Make sure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

1. With the scan tool, read active Park Assist Module DTCs.

Is this DTC active?

Yes

- Testing and Inspection Perform the U0010-CAN Interior Bus diagnostic procedure.

No

- Stored Lost Communication DTCs Perform the Stored Lost Communication DTCs diagnostic procedure.
