Instrument Cluster / Carrier: Locations

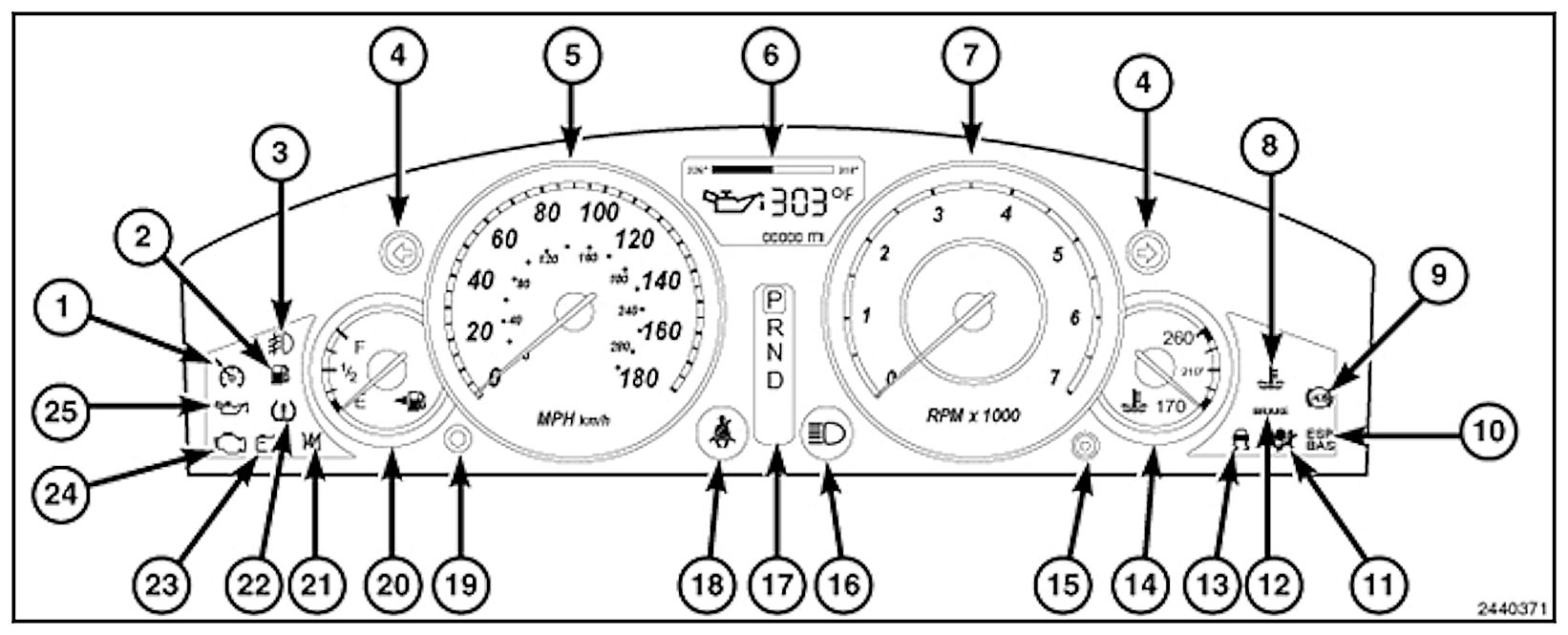

Instrument Cluster:

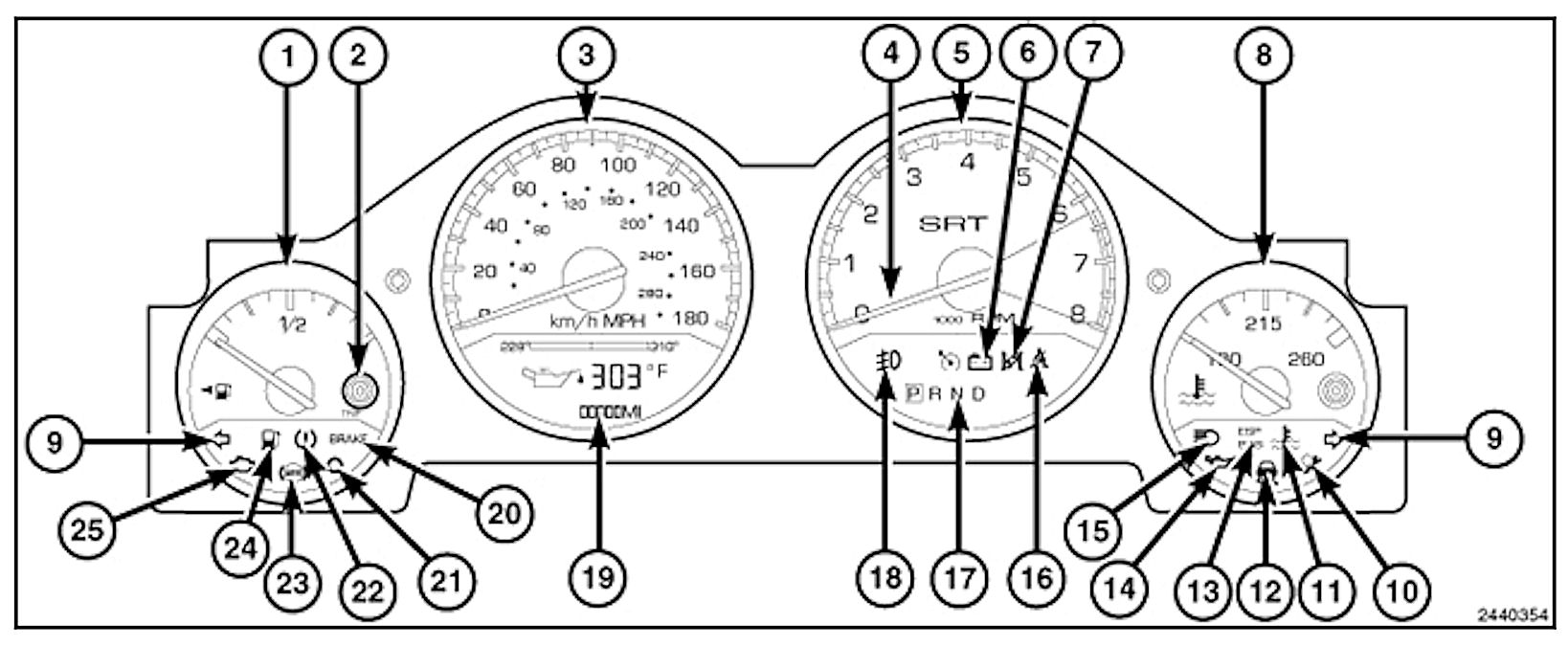

Instrument Cluster - SRT:

The instrument cluster includes provisions for the following indicators:

^ Airbag Indicator (11)(1O)
^ Ajar Indicators - text in odometer I EVIC display (6)(19)
^ Antilock Brake System (ABS) Indicator (9)(23)
^ Brake Indicator (12)(20) - text only for U.S. market, icon only for markets outside U.S.
^ Change Oil Indicator - textual message in odometer I EVIC display (6)(19)
^ Charging Indicator (23)(6)
^ Cruise Indicator (1)(4)
^ Electronic Stability Program (ESP)/Brake Assist System (BAS) Indicator (1O)(13)
^ Electronic Throttle Control (ETC) Indicator (21)(7)
^ Engine Coolant Temperature Indicator (8)(11)
^ Front Fog Lamp Indicator (3)(18) - with optional front fog lamps only
^ Gas Cap Indicator - textual message in odometer I EVIC display (6)(19)
^ Gear Selector Indicator (17)(17) - with automatic transmission only
^ iligh Beam Indicator (16)(15)
^ Low Fuel Indicator (2)(24)
^ Low Oil Pressure Indicator (25)(14)
^ Malfunction Indicator Lamp (MIL) (24)(25) - only on domestic market vehicles
^ No Bus Indicator - textual message in odometer / EVIC display (6)(19)
^ No Fuse Indicator - textual message in odometer / EVIC display (6)(19)
^ Seat Belt Indicator (18)(16)
^ Security Indicator (19)(21)
^ Tire Pressure Monitor (TPM) Indicator (22)(22)
^ Traction Control/Electronic Stability Program (ESP) Indicator (13)(12)
^ Turn Signal (Right and Left) Indicators (4)(9)

The instrument cluster also includes the following Vacuum Florescent Display (VFD) units

^ Electronic Vehicle Information Center (EVIC) Display (6)(19)
^ Odometer Display (6)(19) - includes Door Ajar indicator, Low Washer, Outside Temperature, Trunk or Hatch Ajar indicators.
