Radio - Removal

REMOVAL






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery System - Battery Reconnection .

NOTE: REQ radios only must be put into "Transportation Mode" before removal. With Ignition in RUN or ACCESSORY, press SET and DISK simultaneously until the radio displays "TRANSPORTATION" on the display or for 5 seconds.

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel Instrument Panel Bezel - Removal.

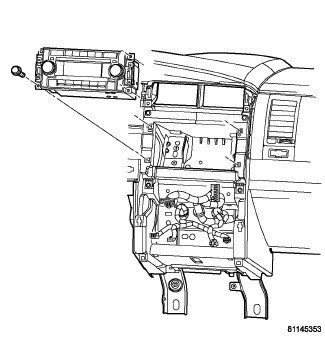

3. Remove the mounting fasteners.






CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

4. Disconnect the antenna cables.
5. Disconnect the electrical connectors and the remove radio.
