Steering - Power Steering Honk/Buzz/Hiss Noise
NUMBER: 19-003-10 REV.AGROUP: Steering
DATE: March 23, 2010
THIS BULLETIN SUPERSEDES SERVICE BULLETIN 19-003-10, DATED February 12, 2010 WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE LABOR OPERATION CHANGES.
SUBJECT:
Power Steering Honk, Hiss And/Or Buzz Sound
OVERVIEW:
This bulletin involves removing and replacing the power steering return hose with a unrestricted return hose.
MODELS:
2010 (LX) 300/300C/Charger
NOTE
This bulletin applies to vehicles equipped with a 5.7L (Sales Code EZH) built before January 21, 2010 (MDH0121XX).
SYMPTOM/CONDITION:
Customer may experience a honk, hiss or buzz sound while turning.
DIAGNOSIS:
If the above condition is present perform the Repair Procedure.
PARTS REQUIRED:

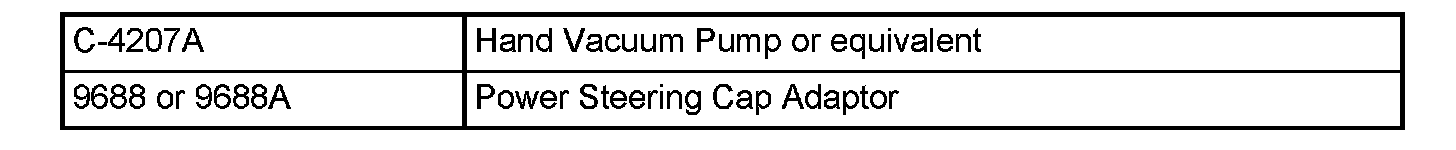

SPECIAL TOOLS / EQUIPMENT REQUIRED:
REPAIR PROCEDURE -
1. **Remove the Power Steering Return Hose. Refer to the detailed removal procedures available in DealerCONNECT > TechCONNECT under: Service Info > 19-Steering > Pump > HOSE, Power Steering, Return > Removal > Gear to Cooler. **
2. **Install the Power Steering Return Hose. Refer to the detailed Installation procedures available in DealerCONNECT > TechCONNECT under: Service Info > 19-Steering > Pump > HOSE, Power Steering, Return > Install > Gear to Cooler.**
POLICY:
Reimbursable within the provisions of the warranty.

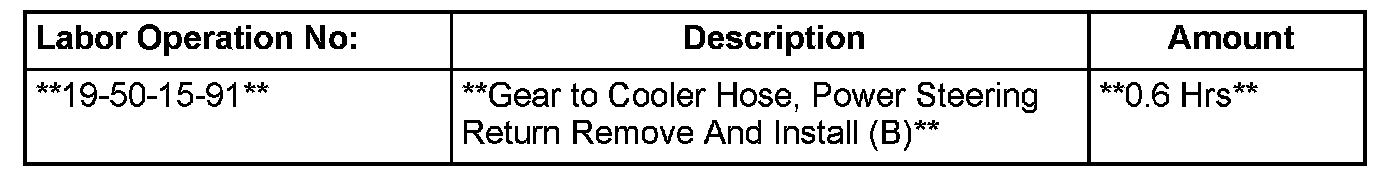

TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
