Rear

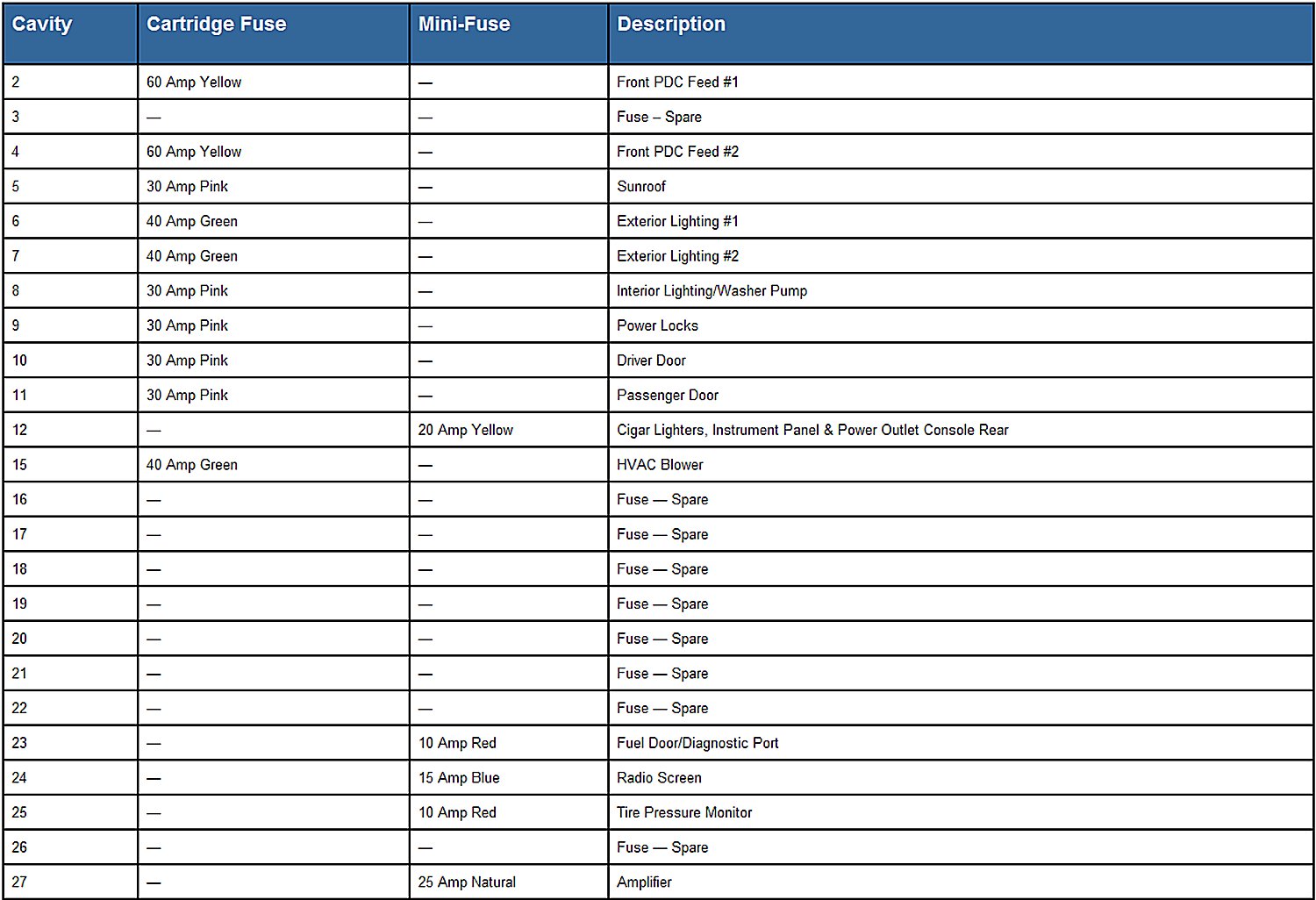

Rear Power Distribution Center Fuses






The rear power distribution center is located in the trunk under the spare tire access panel.
