Engine Mechanical Diagnosis Chart






ENGINE DIAGNOSIS - MECHANICAL

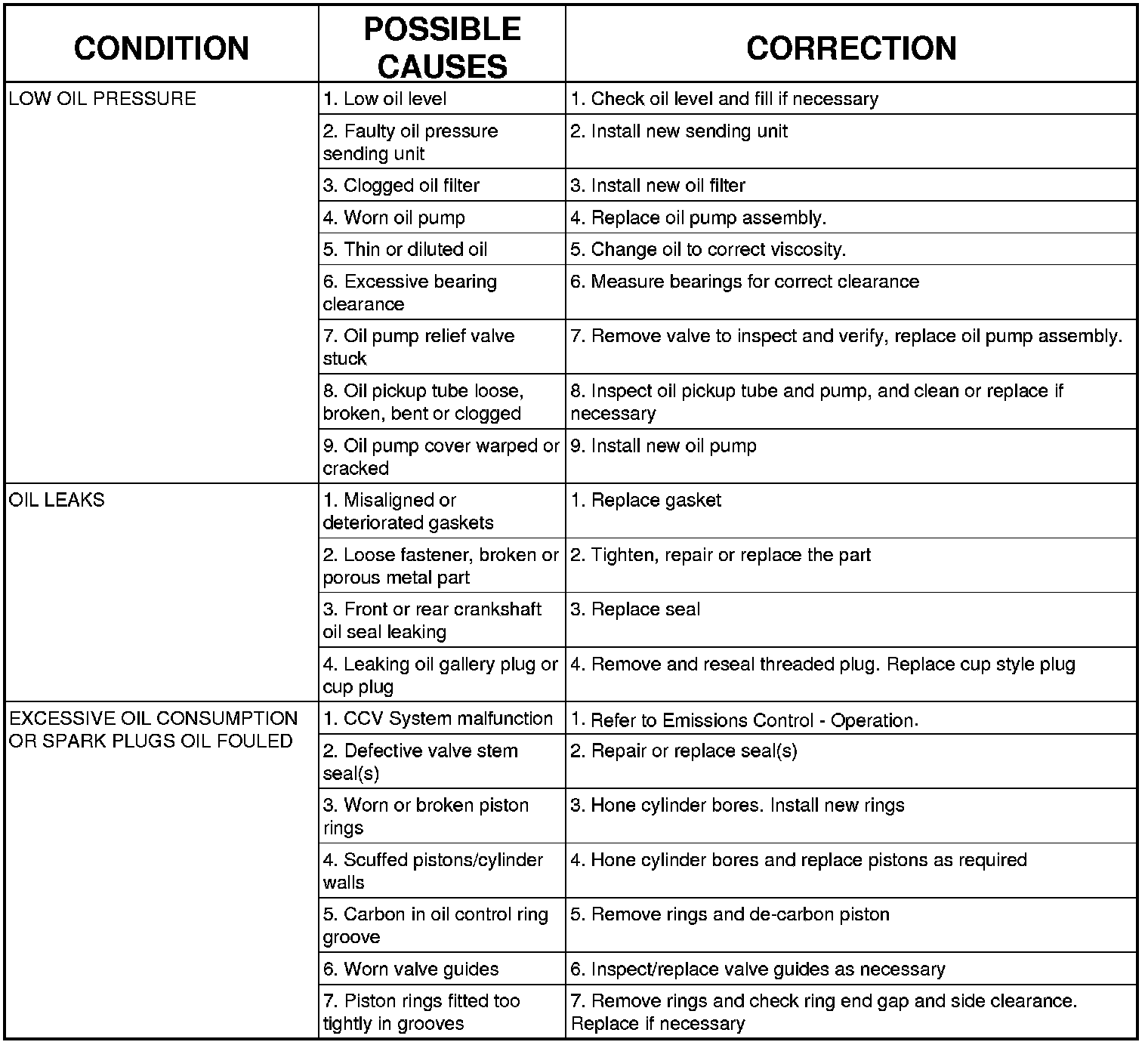

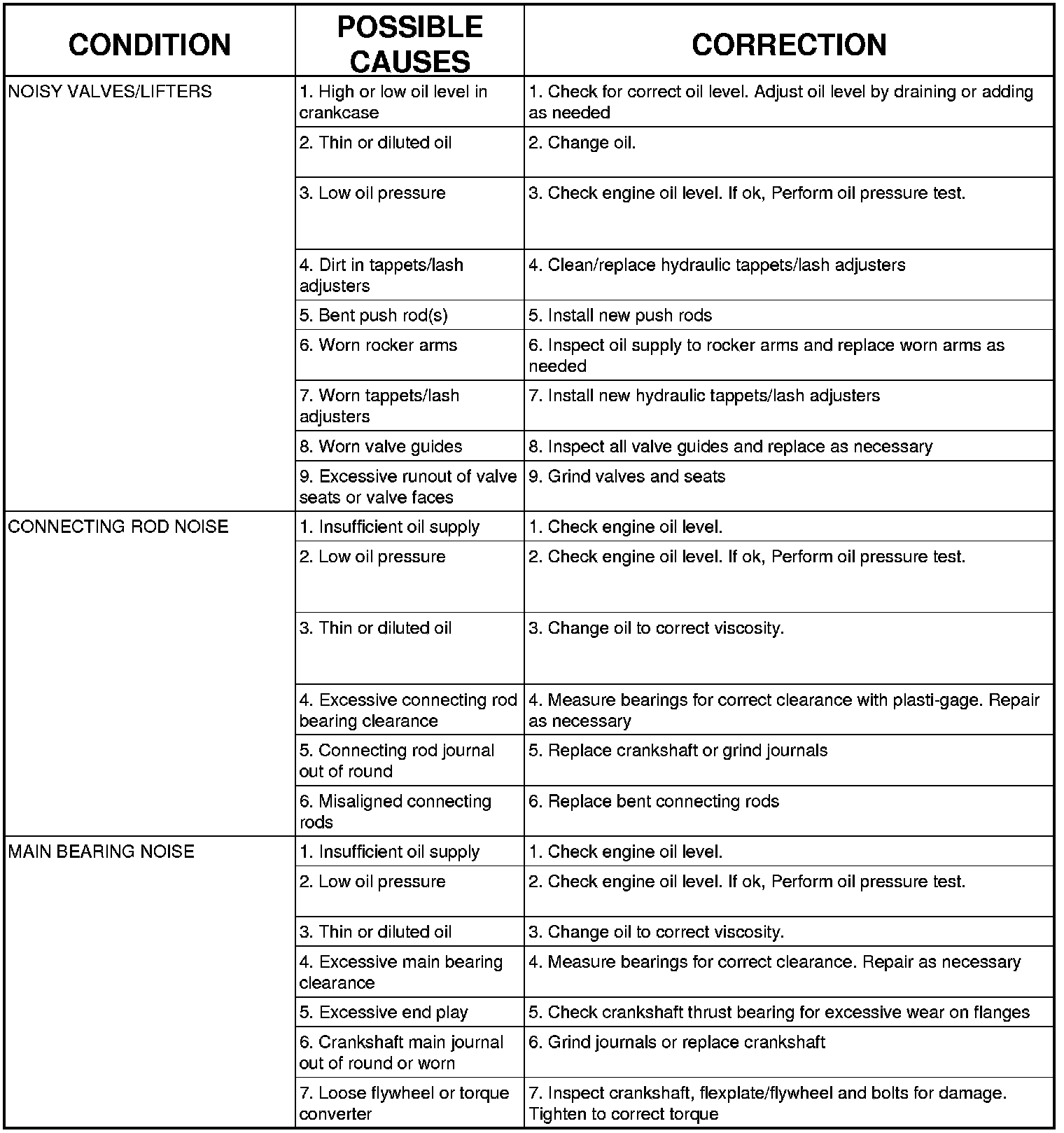

ENGINE MECHANICAL DIAGNOSIS CHART
