Crankshaft Main Bearing

CRANKSHAFT MAIN BEARING CAP

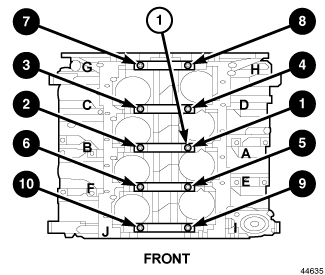

Install all main bearing caps. Install all M12 cap bolts and alternately tighten in two steps using the following sequence.






Step 1 28 Nm ( 20 ft. lbs.).
Step 2 Turn main cap bolts an additional 90°.

Install the M8 crossbolts with attached washer/gasket. Starting with crossbolt A.
Tighten each crossbolt 31 Nm ( 23 ft. lbs.).
Repeat crossbolt tightening procedure.







CRANKSHAFT MAIN BEARING

Bearing Clearance 0.013 - 0.041 mm (0.000512 - 0.00161 in.)

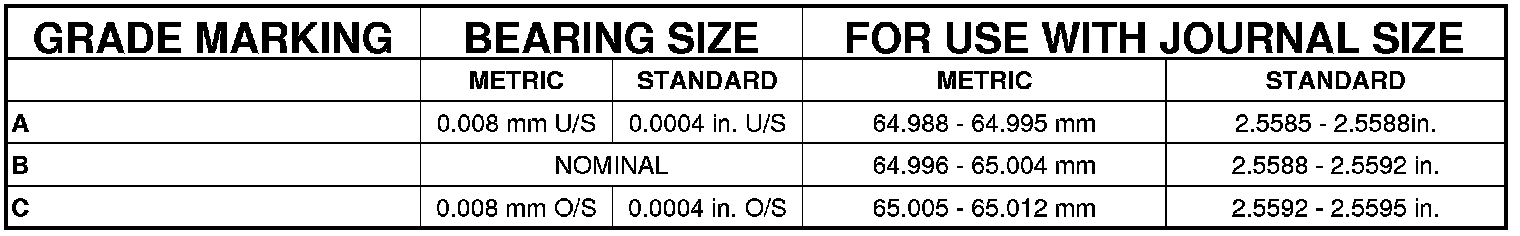

MAIN BEARING SELECTION
