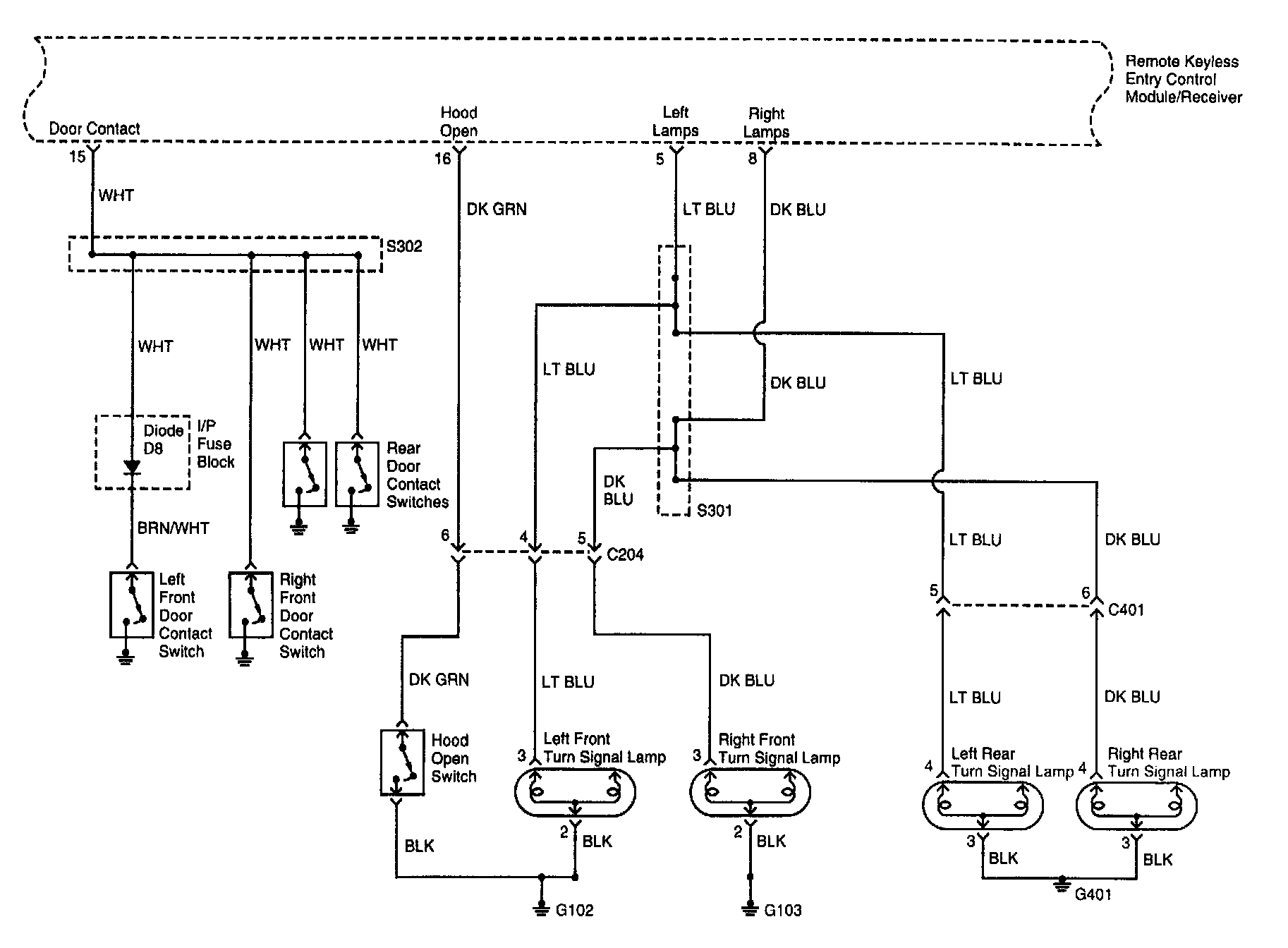

Home >> Daewoo >> 1999 >> Lanos S Hatchback L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> 2 of 3

2 of 3

Part 2 Of 3:
