System Diagram

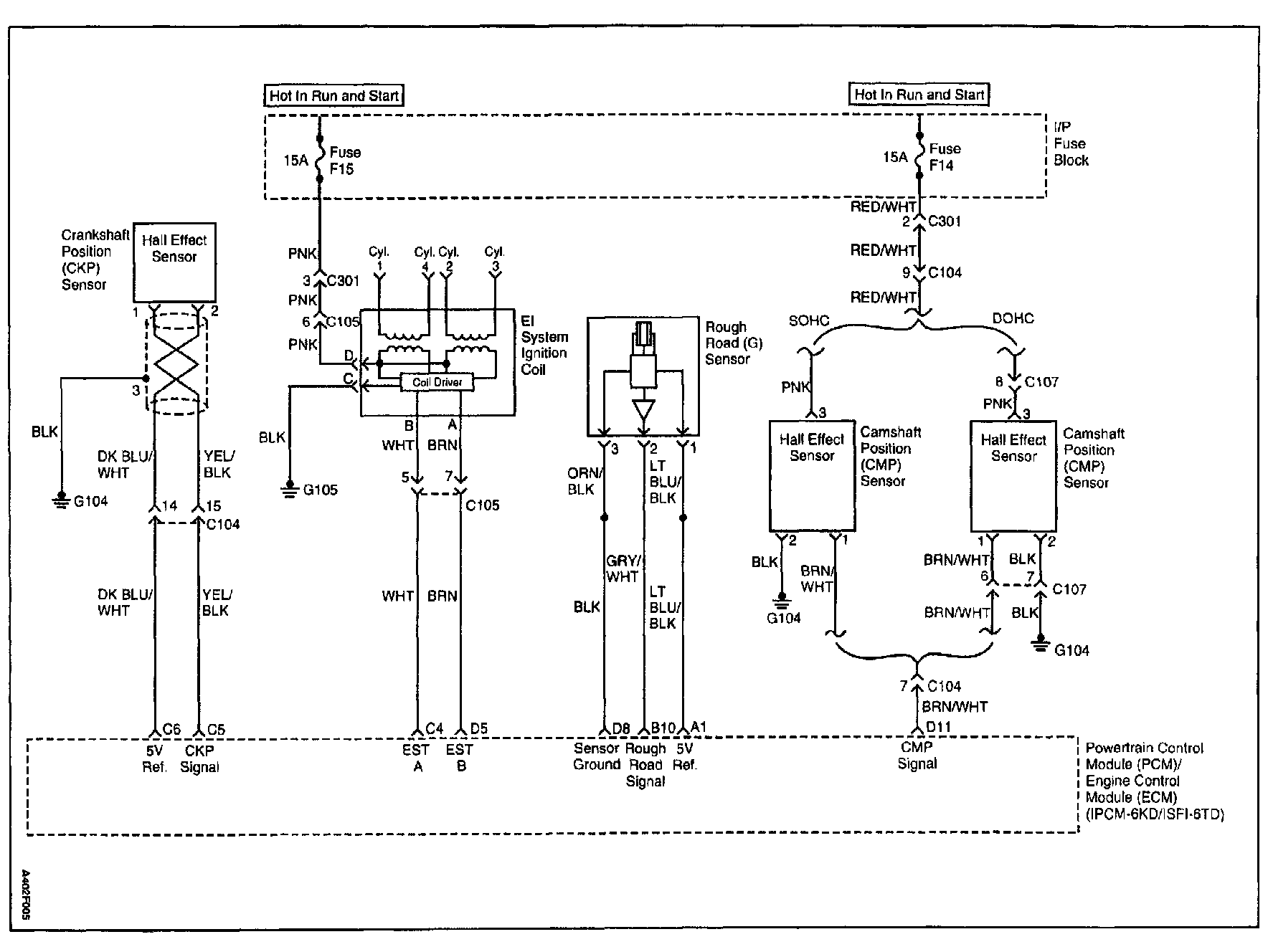

PCM/ECM WIRING DIAGRAM (1 0F 7):



PCM/ECM WIRING DIAGRAM (2 OF 7):



PCM/ECM WIRING DIAGRAM (3 OF 7):



PCM/ECM WIRING DIAGRAM (4 OF 7):



PCM/ECM WIRING DIAGRAM (5 OF 7):



PCM/ECM WIRING DIAGRAM (6 OF 7):



PCM/ECM WIRING DIAGRAM (7 OF 7):
