Home >> Daewoo >> 1999 >> Lanos SE Hatchback L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Connectors >> Splice Pack

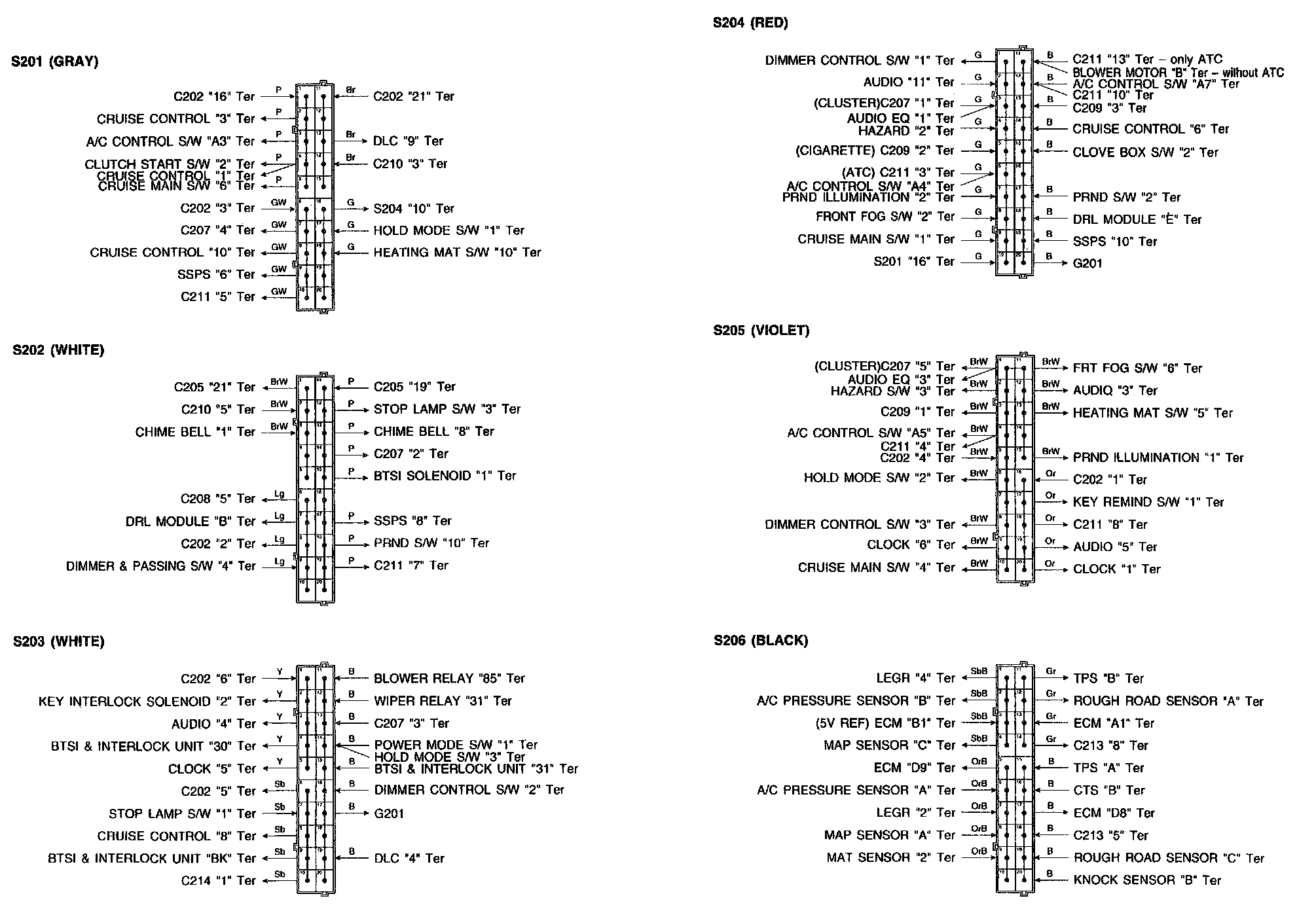

Splice Pack

Part 1 Of 2:



Part 2 Of 2:
