Housing Assembly HVAC: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the instrument panel carrier assembly.
3. Drain the cooling system.
4. Recover the refrigerant.

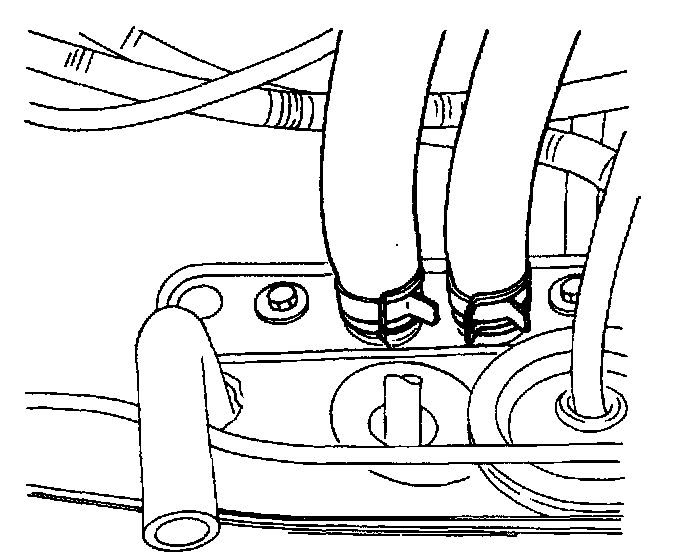

5. Compress the heater hose clamps at the fire wall and slide the clamps toward the engine.
6. Remove the two heater hoses from the core lines at the fire wall.
7. Turn the condensation drain hose and pull the hose off.

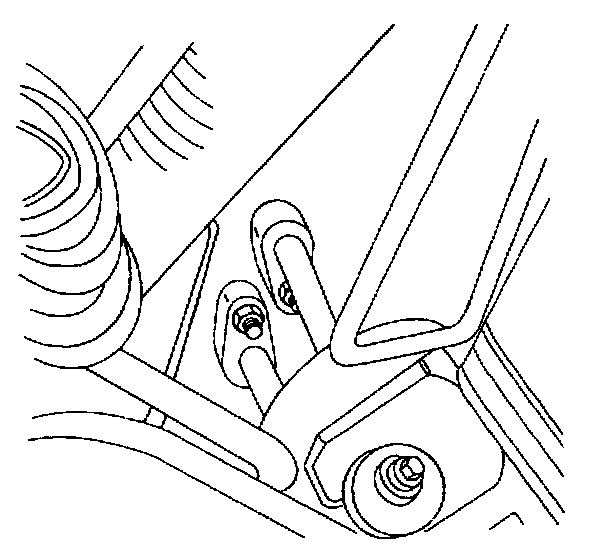

8. Remove the nuts that secure the A/C suction hose and liquid evaporator pipe connector block at the fire wall.
9. For vehicles equipped with ABS, remove the right front wheel. For non-ABS equipped vehicles, access is gained from above.
10. For vehicles equipped with ABS, remove the steering arm access plate.

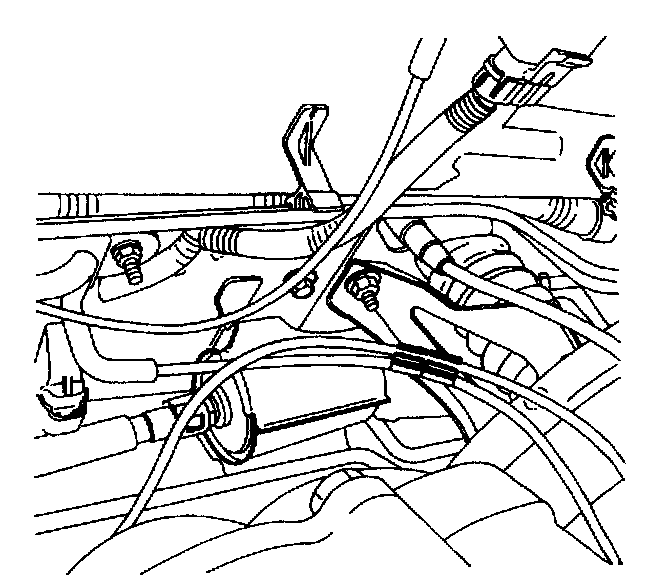

11. From the engine side of the fire wall, remove the bolts that secure the healer/air distribution case assembly to the fire wall.
12. Remove the heater/air distribution case assembly from the vehicle.

Installation Procedure




1. Clean the O-ring surface areas of dint and contamination.
2. Install two new O-rings onto the A/C suction hose and the liquid evaporator pipe at the fire wall in the engine compartment.

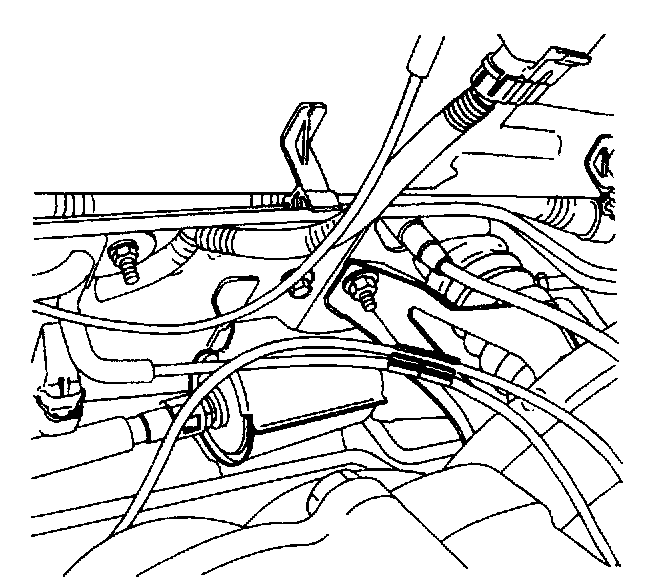

3. Install the heater/air distribution case assembly and tighten the bolts.

Tighten
Tighten the heater/air distribution case assembly retaining bolts (fire wall side) to 8 Nm (71 lb.in).




4. Install the A/C suction hose and liquid evaporator pipes onto the evaporator flange connector block and tighten the nuts.

Tighten
Tighten the liquid evaporator pipe connector block nuts to 12 Nm (106 lb.in).




5. Connect the two heater hoses to the heater core tubes.
6. Slide the heater hose clamps into position.
7. Install the case condensation drain hose.




8. For ABS-equipped vehicles, install the front wheel.
9. For ABS-equipped vehicles, install the steering arm access plate.
10. Install the instrument panel carrier assembly.
11. Fill the cooling system.
12. Connect the negative battery cable.
13. Evacuate and recharge the A/C system.
14. Operate the HVAC control to verify the proper function of the heating and cooling systems.
