Courtesy Lamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

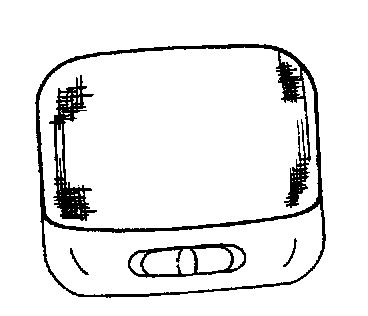

2. Pry off the interior courtesy lamp lens by inserting a screwdriver into the recess along the edge of the lens.

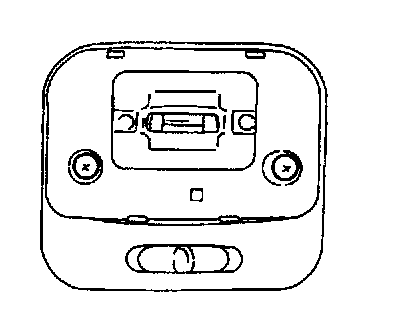

3. Remove the screws and the interior courtesy lamp housing from the headliner.

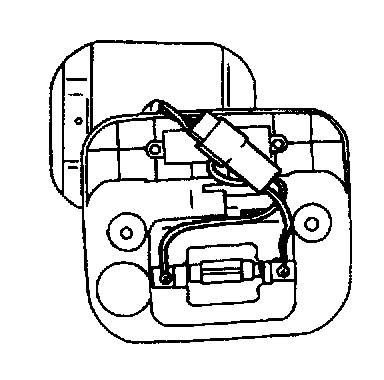

4. Disconnect the electrical connector.
5. Remove the bulb.

Installation Procedure




1. Install a new bulb.
2. Connect the electrical connector.






NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

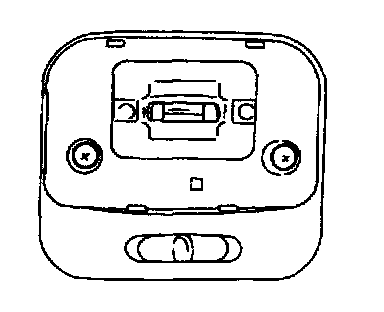

3. Install the interior courtesy lamp housing to the headliner with the screws.

Tighten
Tighten the interior courtesy lamp housing screws to 2 Nm (18 lb.in).




4. Press the courtesy lamp lens onto the housing.
5. Connect the negative battery cable.
