Headlamp: Testing and Inspection

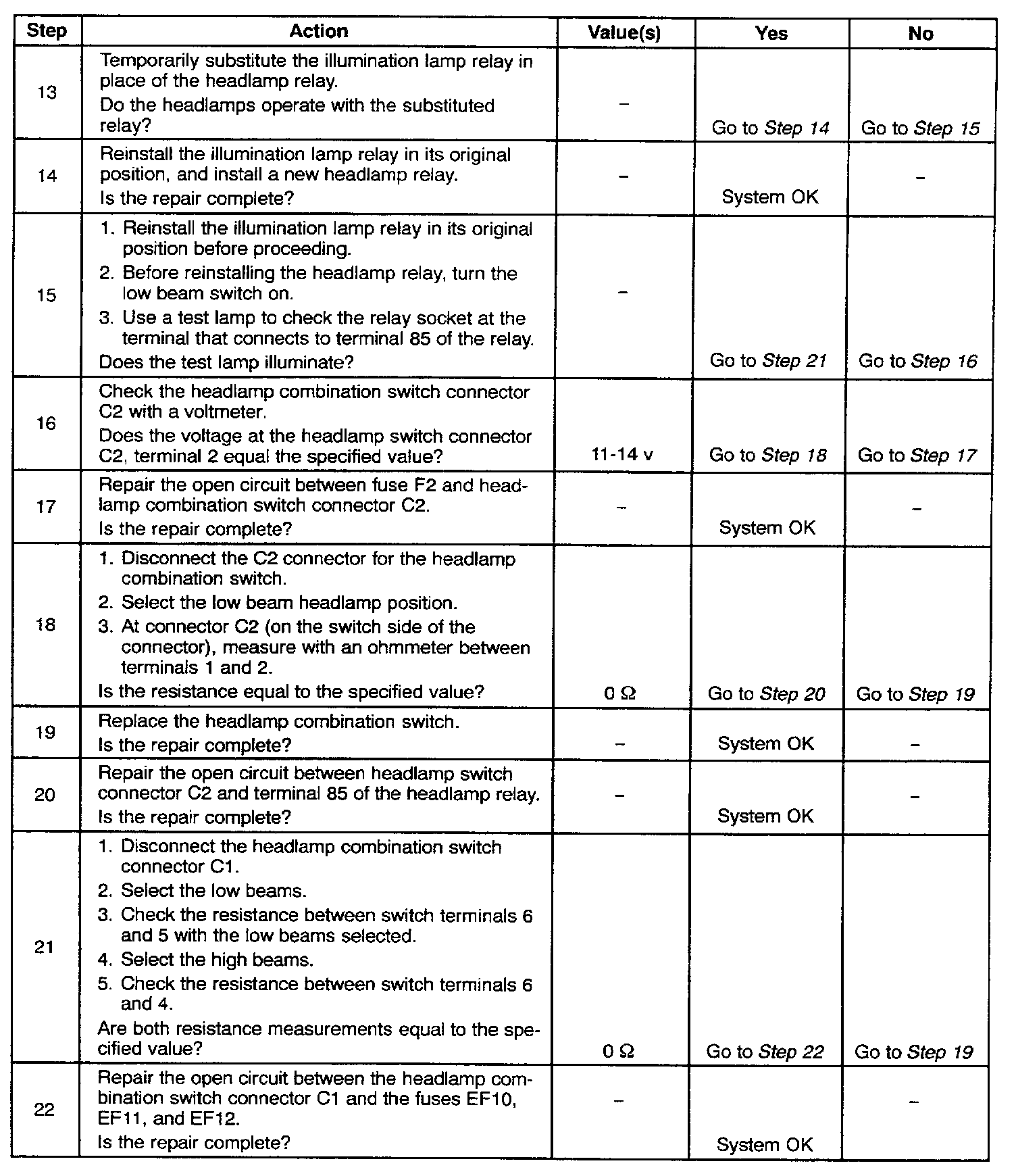

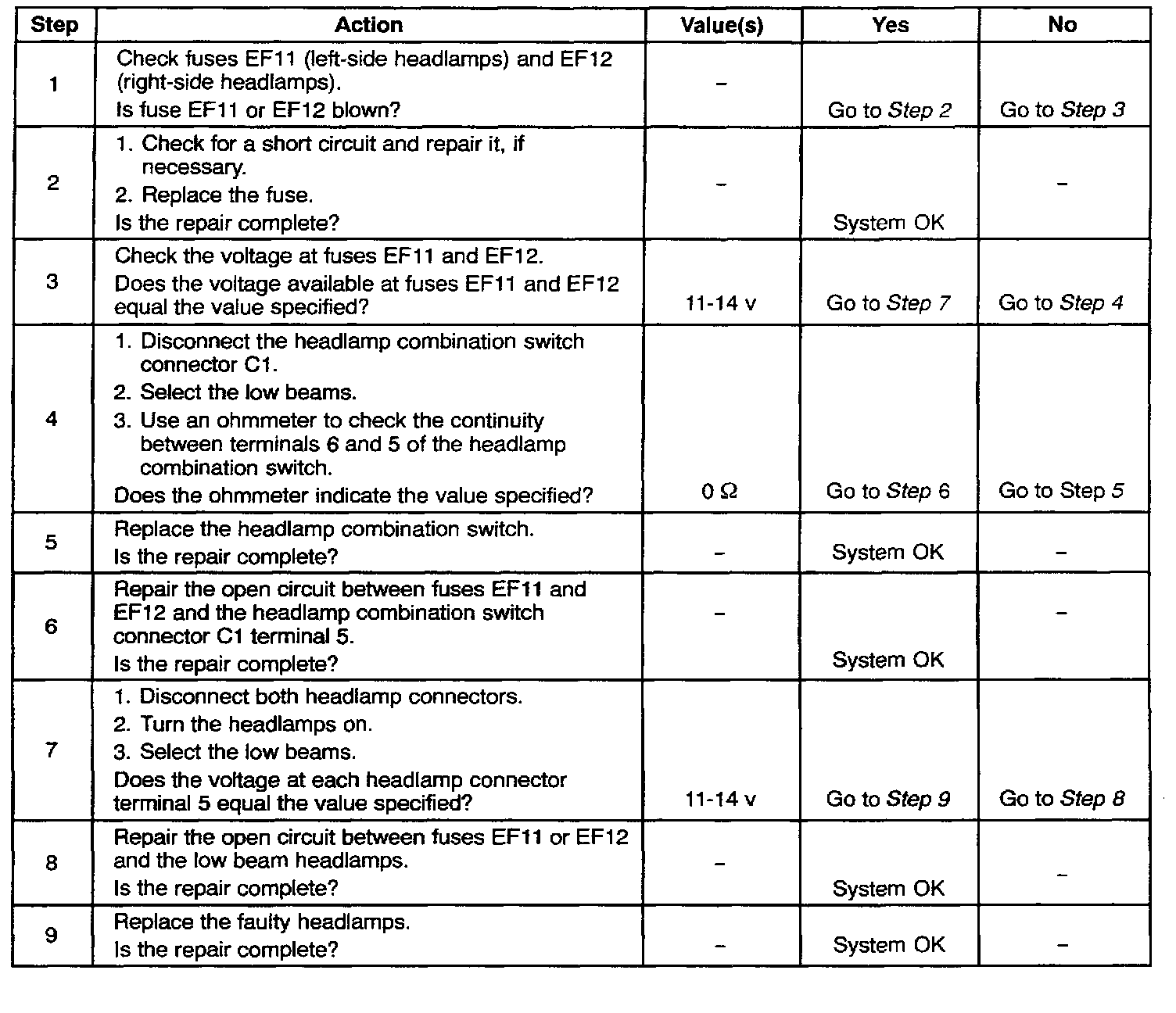

Low Beam Headlamps Are Inoperative, High Beam Headlamps Are OK




High Beam Headlamps Are Inoperative, Low Beam Headlamps Are OK

Part 1 Of 2:

Part 2 Of 2:

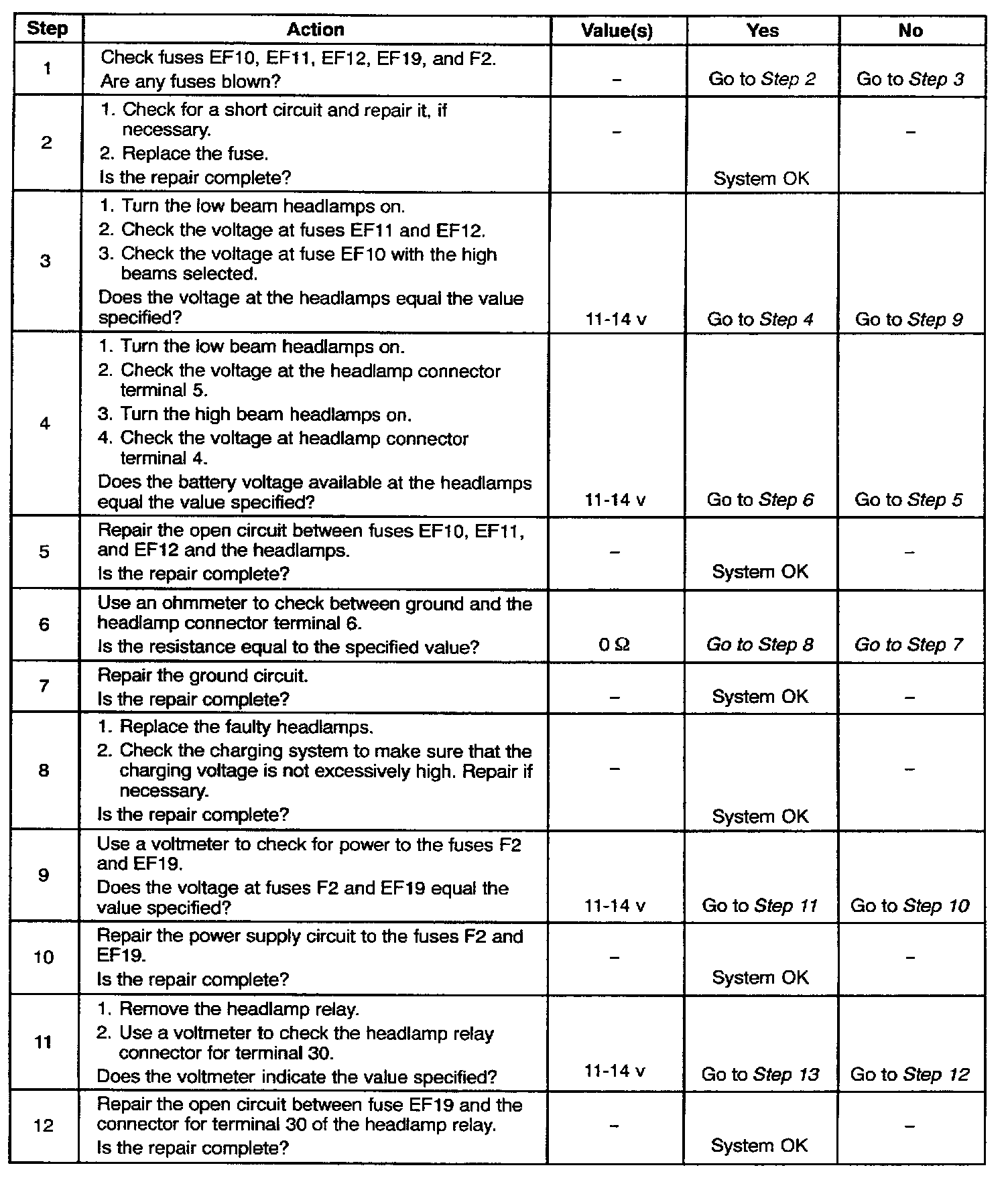

High Beam and Low Beam Headlamps Are Inoperative On Both Left and Right Sides

Diagnostic Aids: If there are several other symptoms, including an inoperative radiator fan, the windshield washer pump, or the left-side turn signal lamps, check ground G102.
