Recall - Steering Wheel Replacement
RECALL SERVICE BULLETINBulletin No.: RSB-001-98
Model(s): 1998-99 Lanos
Date: December 8, 1998
VIN Range:
Description: Steering Wheel
Group: Campaigns
Reference: T98-6-01
Prod. Dates: N/A
Daewoo Motor America has determined that a defect which relates to motor vehicle safety exists in certain 1998 and 1999 Lanos models. There is a possibility that the steering wheel could become damaged from over-rotation. If this were to occur, it is possible that a loss of steering control could occur which could lead to a vehicle crash.
To eliminate the possibility of breakage and the resulting effect on vehicle steering, Daewoo has decided to recall these Lanos models and replace the steering wheel with an improved version.
All unsold new vehicles in Store's possession and subject to this campaign must be held and inspected/repaired per the service procedure of this campaign bulletin before owners take possession of these vehicles.
Stores are to service all vehicles subject to this campaign at no charge to owners, regardless of mileage, age of vehicle, or ownership, from this time forward.
Current Lanos owners and drivers will be notified in writing and will be calling to schedule an appointment to have their steering wheel replaced. Whenever practical, offer to travel to the customer's home, place of business, etc. for steering wheel replacement. An initial shipment of parts sufficient for Store stock, sold vehicles and DCA vehicles has been sent to each Store. Make certain you have adequate stock of Lanos steering wheels on hand before scheduling appointments.
In summary, whenever a vehicle subject to this campaign enters your vehicle inventory, or is in your Store for service in the future, please take the steps necessary to be sure the campaign correction has been made before selling or releasing the vehicle.
INSPECTION PROCEDURE:

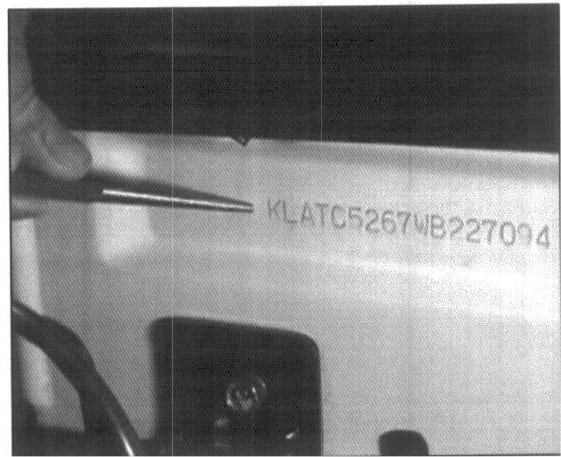

Verify that the vehicle has not been updated previously by checking for a punch mark to the left of the Vehicle Identification Number (VIN) stamped into the bulkhead in the engine compartment. If a punch mark does not exist, proceed to the Steering Wheel Removal/Installation Procedures. If a punch mark does exist, the update has already been completed.
STEERING WHEEL REMOVAL / INSTALLATION PROCEDURES
Steering Wheel Removal:
1. Disconnect the negative terminal from the battery.
CAUTION:
The battery must be disconnected for at least one (1) minute before servicing any air bag system component.
2. Remove the two (2) screw covers and using a T50 tamper-resistant Torx bit socket, remove the driver air bag module mounting screws.

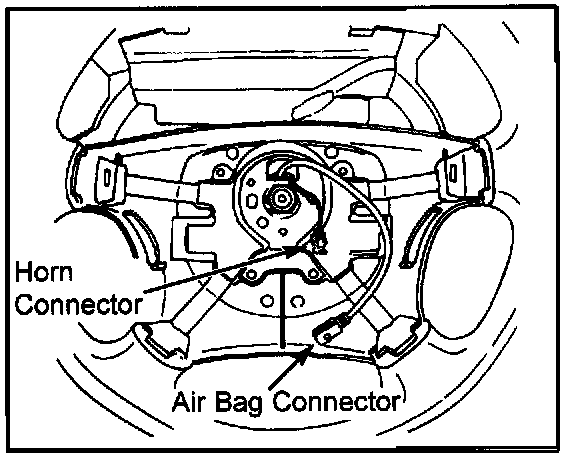

3. Disconnect the air bag module and horn connectors and remove the air bag module.
CAUTION:
Use appropriate caution when handling the air bag module.
4. Position the steering wheel in the straight-ahead position and scribe the steering column shaft at the 12 o'clock position for reference.
5. Fold back the two (2) lock tabs and remove the steering wheel lock nut.
6. Using a suitable puller, remove the steering wheel.
Steering Wheel Installation:
1. Center the clockspring connector.
a. Rotate the clockspring clockwise until it stops.
b. Rotate it counterclockwise approximately 3 rotations.
c. Align the arrows at the 9 o'clock position.
2. Route the horn and air bag connectors through the steering wheel and install the steering wheel onto the steering shaft referencing the scribe mark made earlier.
3. Reinstall the steering wheel lock tab and nut and tighten to specification.
Tightening torque: 13 lb-ft (17 N.m)
4. Bend the lock tabs into place.
5. Reconnect the air bag connector and horn connector and reinstall the air bag module and screw covers.
Tightening torque: 130 lb-in (14.7 N.m)
6. Place a punch mark in the bulkhead to the left of the VIN in the engine compartment.
7. Reconnect the negative battery terminal.
8. Turn the ignition ON and verify that the air bag warning light goes out after five (5) seconds.
9. Road test the vehicle to ensure correct operation and alignment of the steering wheel.
