Windows: Testing and Inspection

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

System With Only Front Power Windows, One or Both Windows are Inoperative

CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.

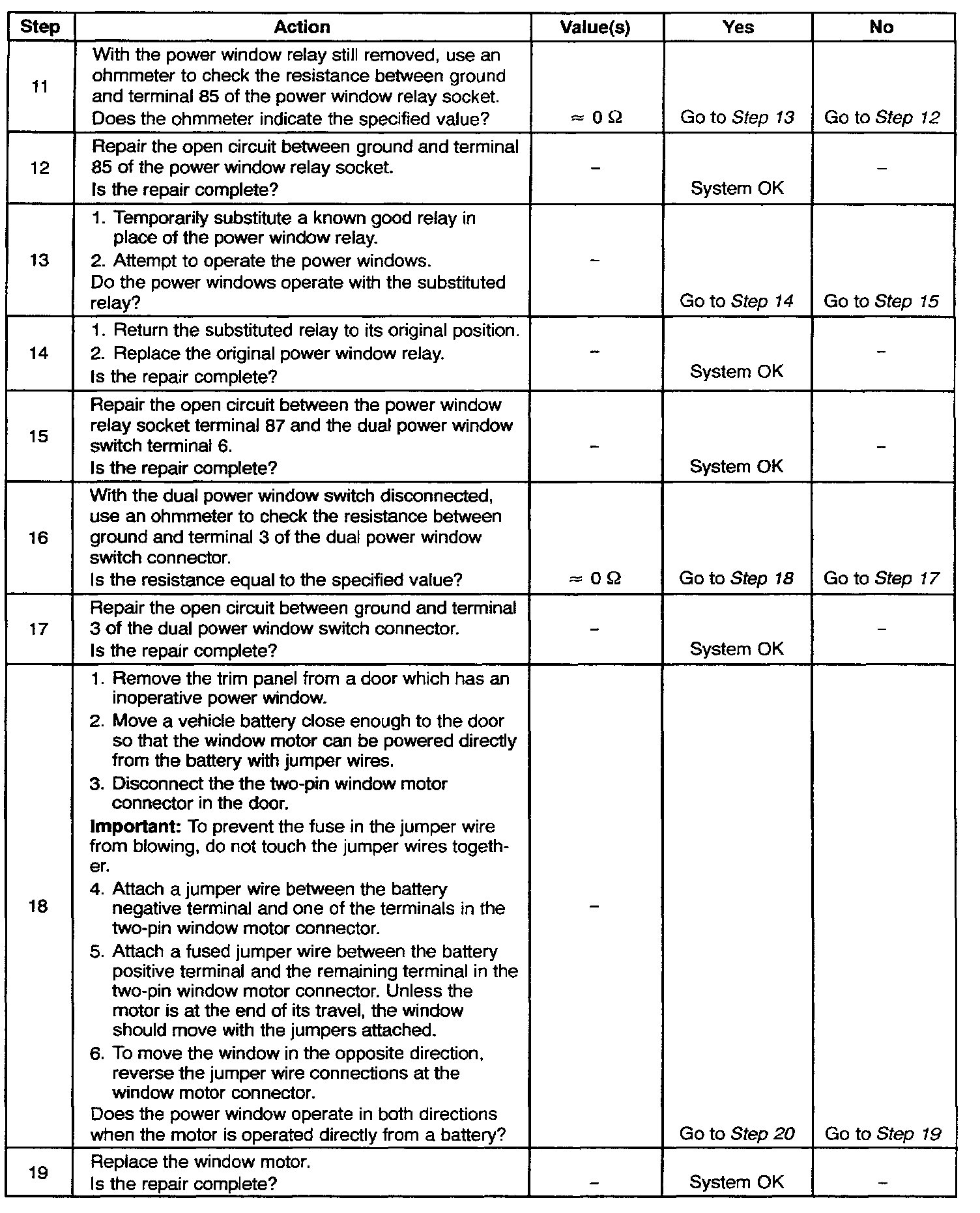

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

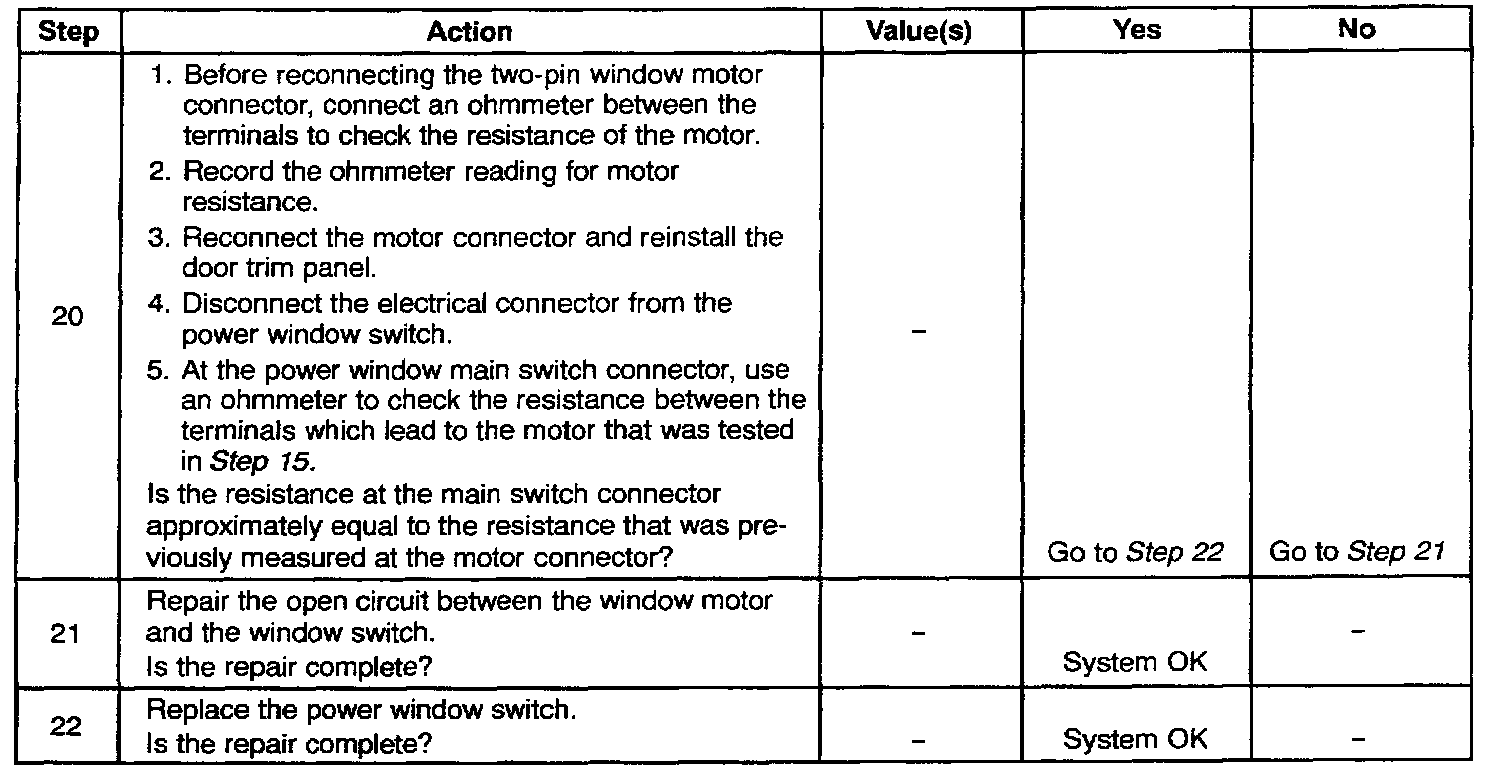

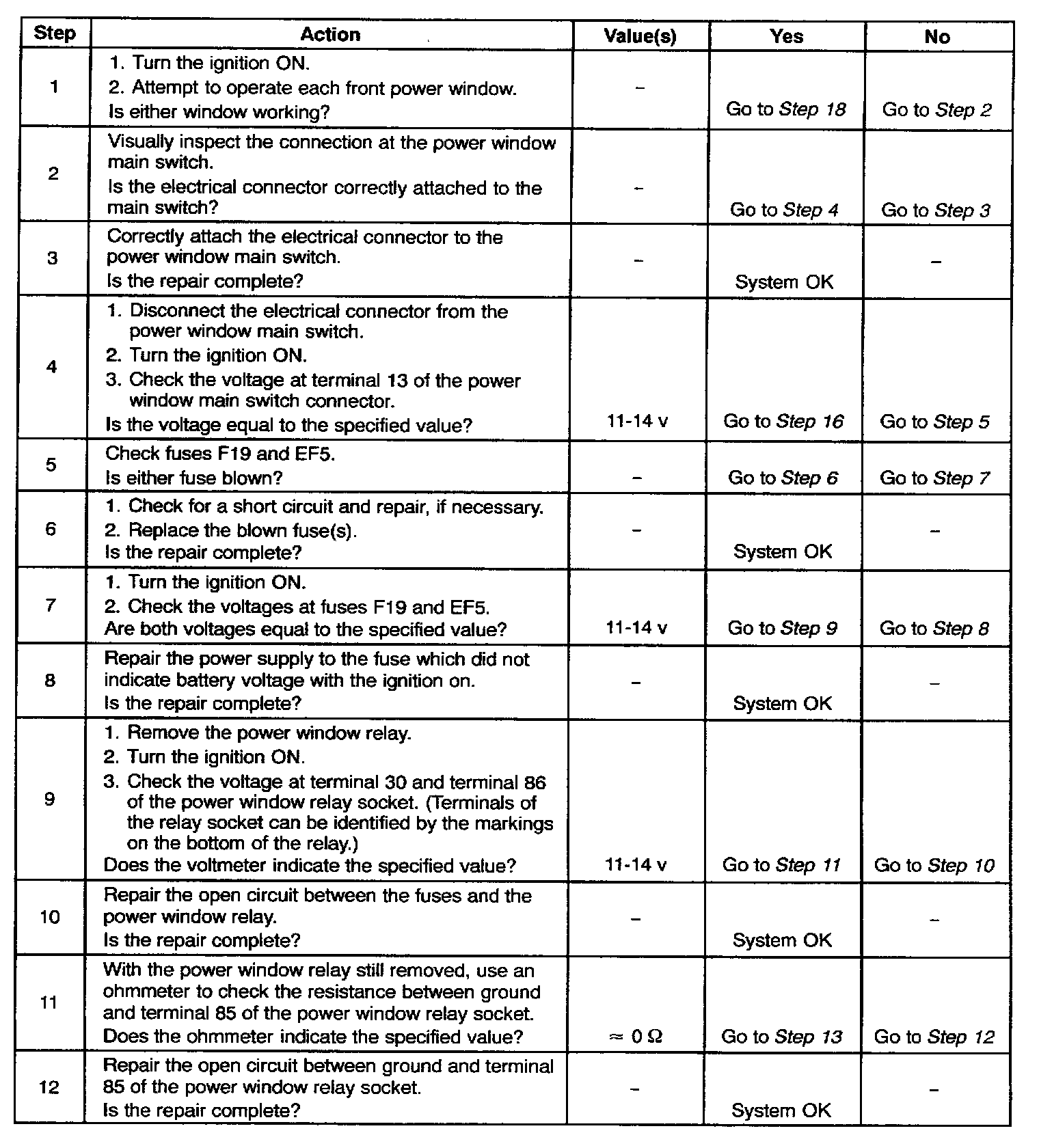

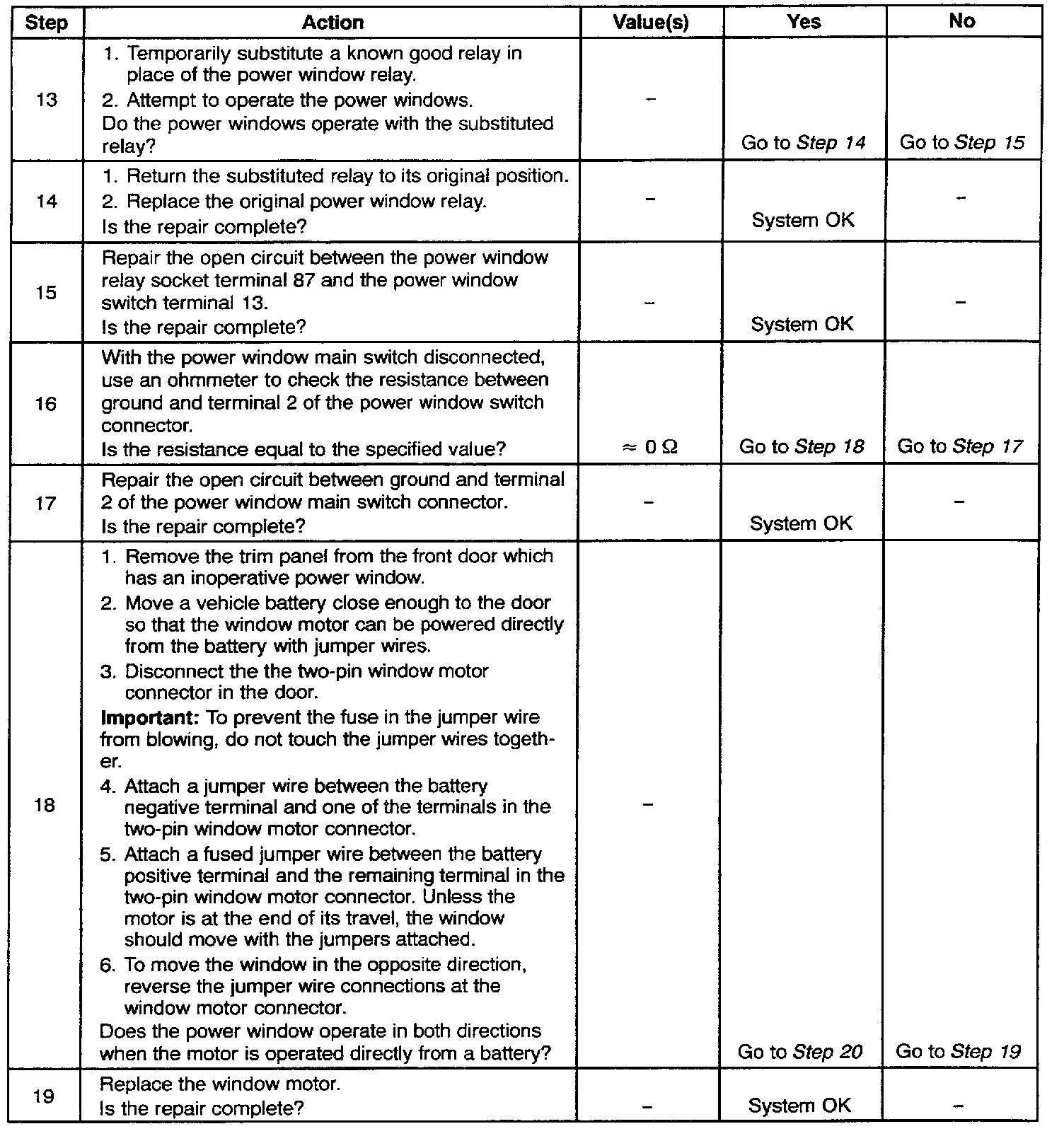

System With Front and Rear Power Windows, One or Both Front Windows are Inoperative

CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

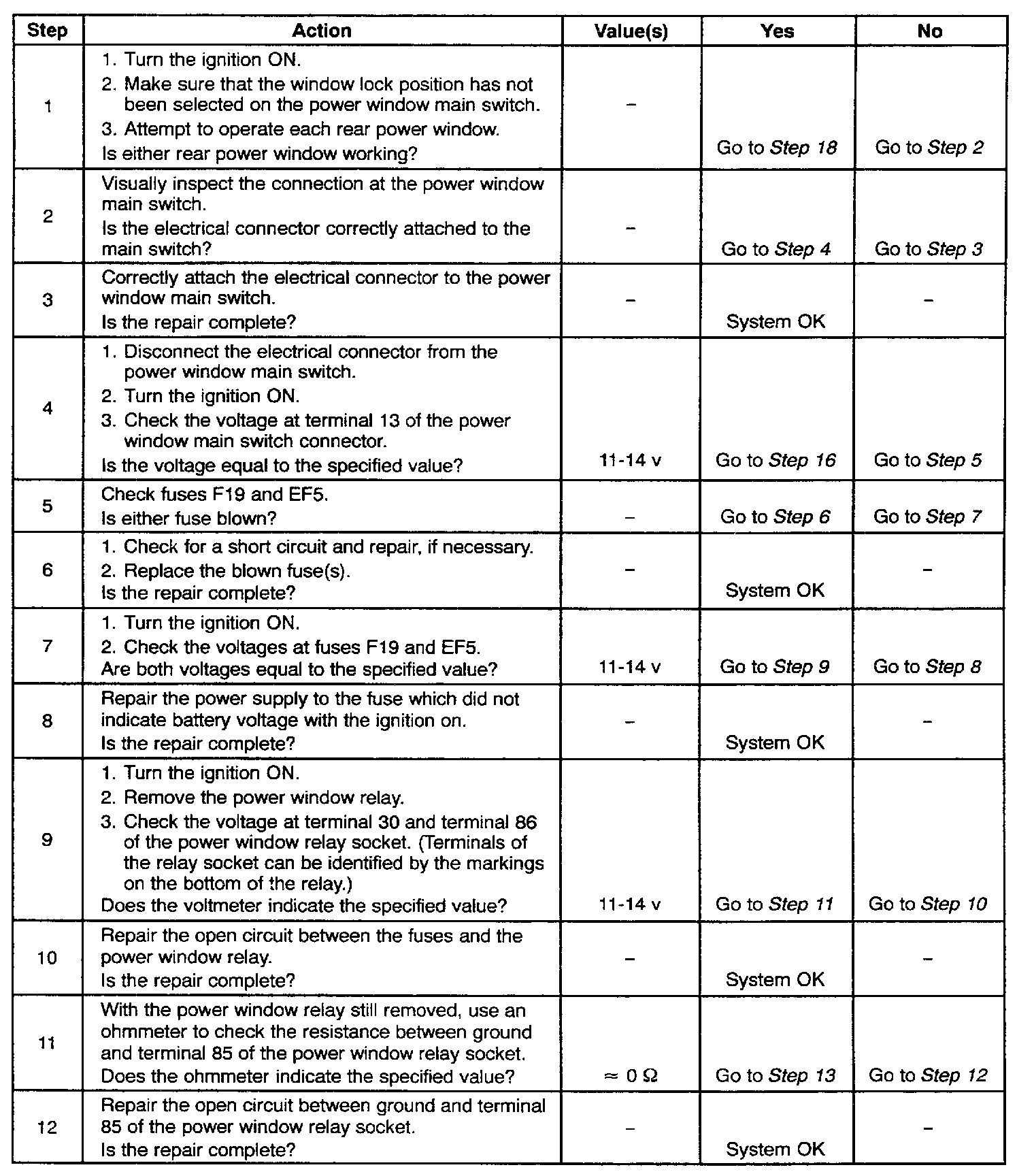

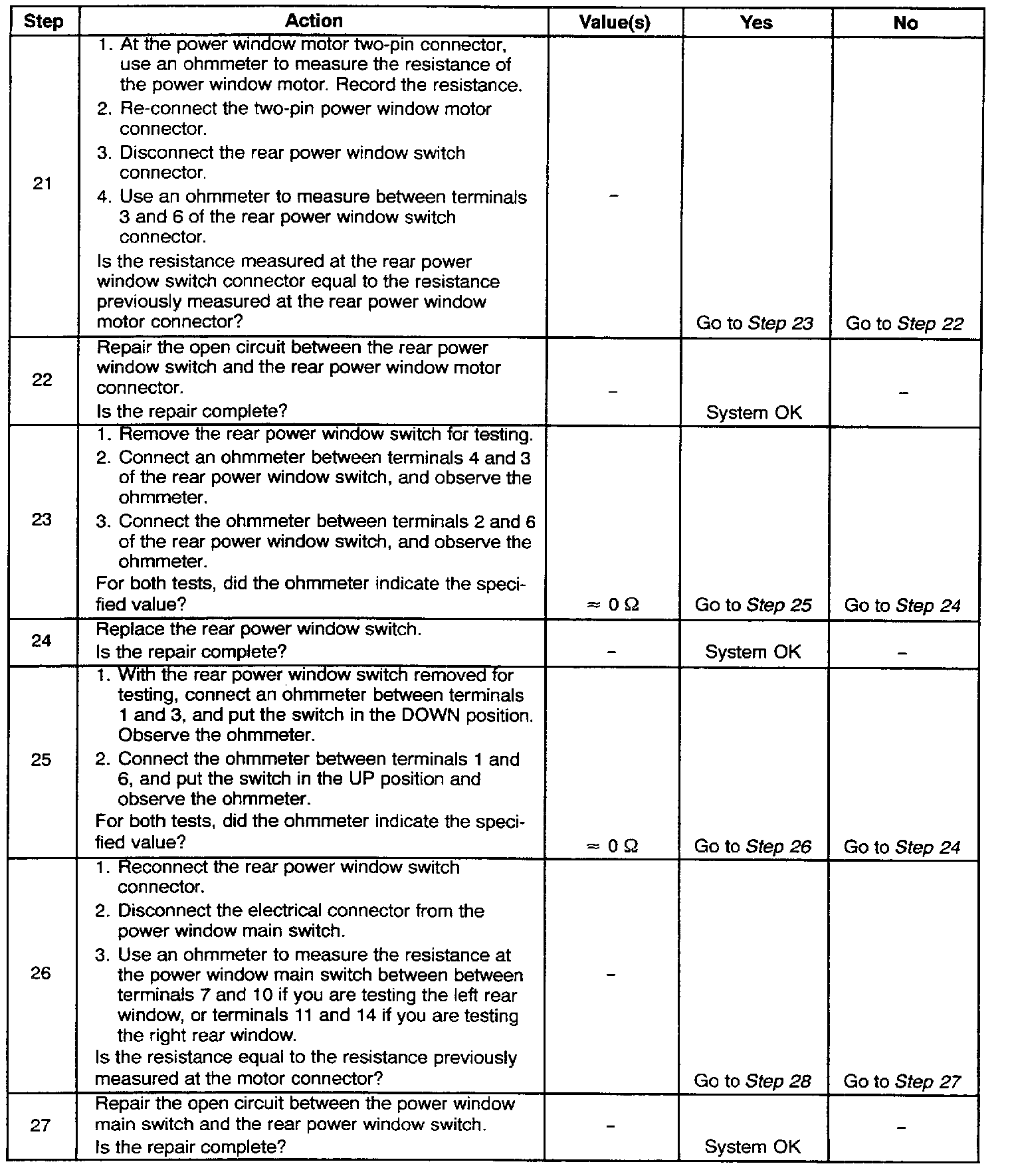

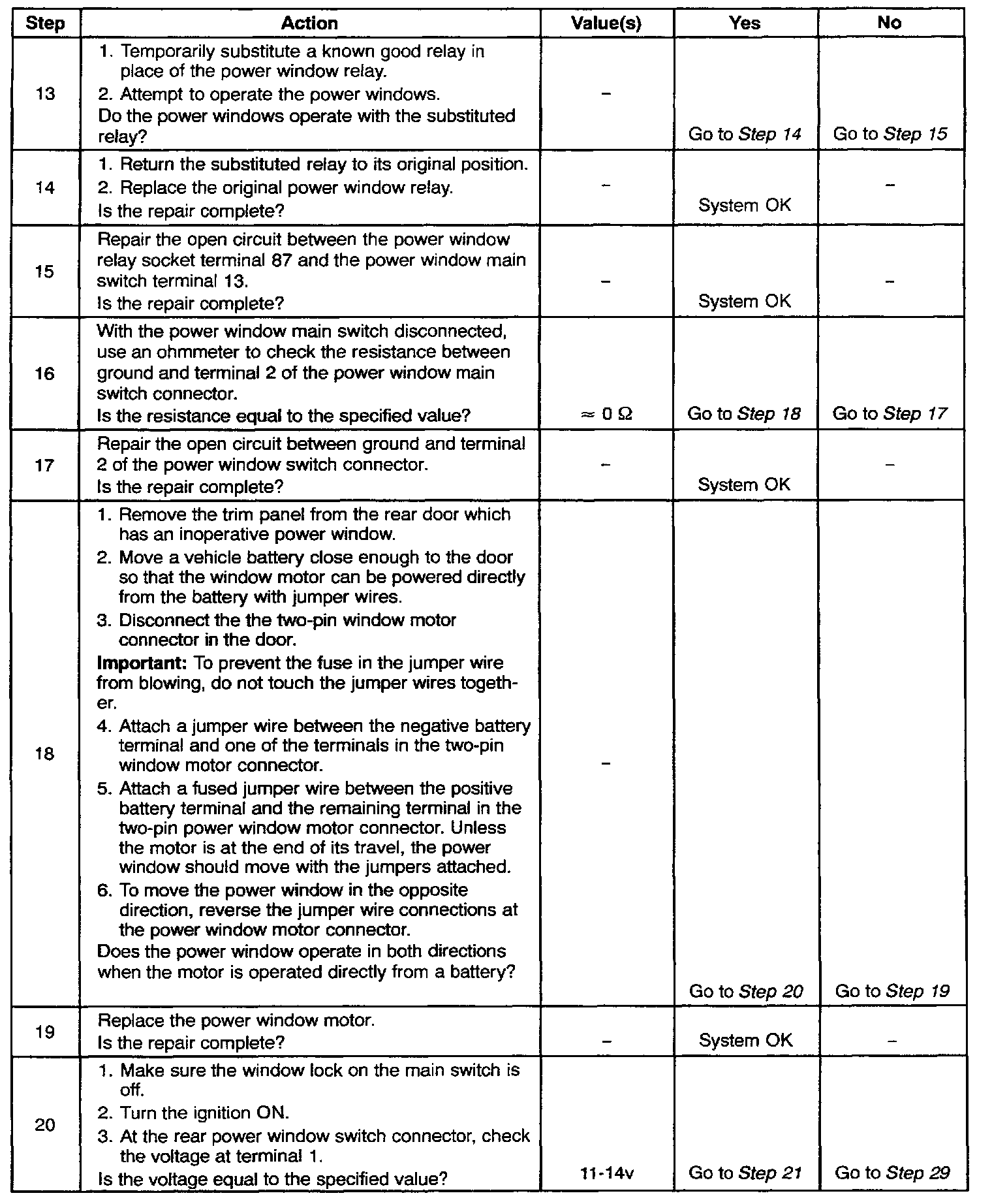

System With Front and Rear Power Windows, One or Both Rear Windows are Inoperative

CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.
