Backup Lamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

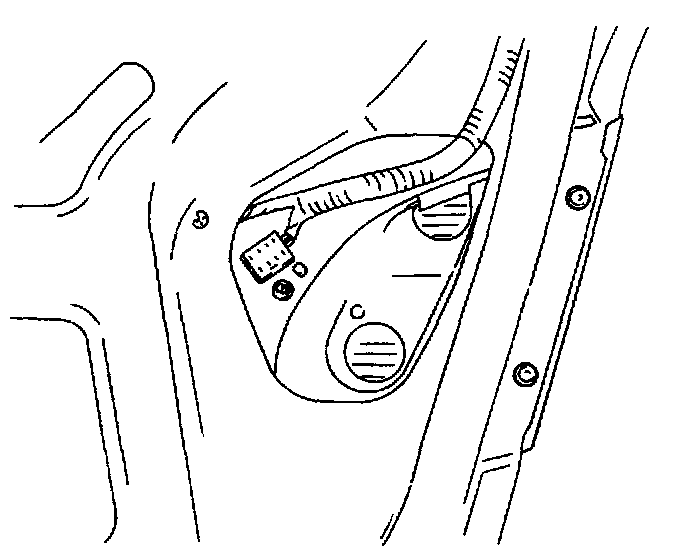

2. Open the luggage compartment lid.

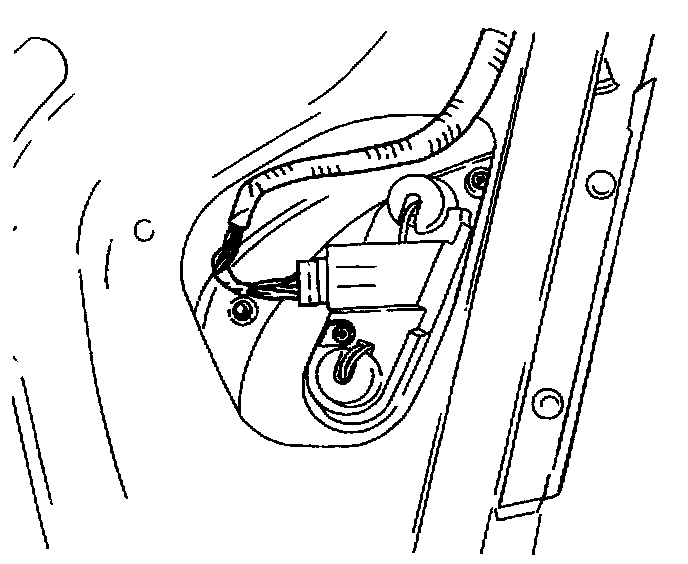

3. Disconnect the electrical connector.
4. Remove the nuts and the bulb assembly from the lamp.




5. Remove the nuts and the stop/backup lamp assembly from the rear deck lid.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the stop/backup lamp assembly with the nuts.

Tighten
Tighten the stop/backup lamp assembly nuts to 3 Nm (27 lb.in).




2. Install the bulbs and the screws in the lamp assembly.
3. Connect the electrical connector.
4. Connect the negative battery cable.
