Repair and Diagnosis: Application and ID

Vehicle Identifications
The vehicle identification number (VIN) plate is attached to the top right side of the front panel support. The VIN is also engraved in the top right side of the bulkhead

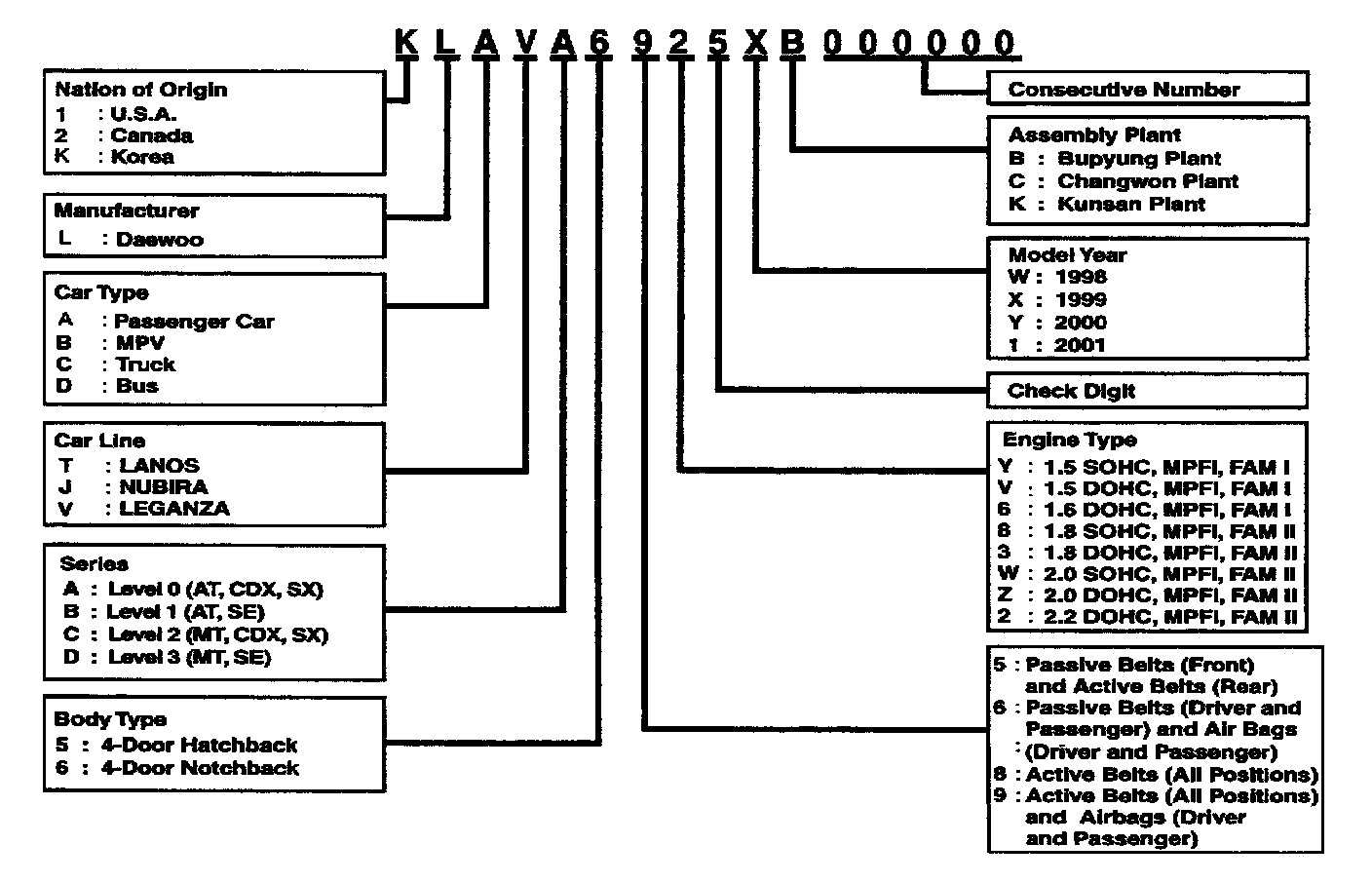

Passenger Car VIN




Certification Label

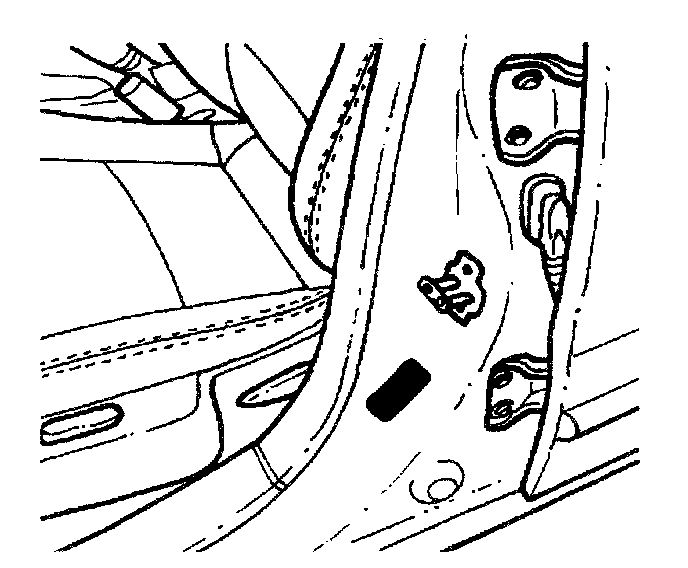

Certification Label Location
The certification label is attached to the inside of the driver's side door jamb.

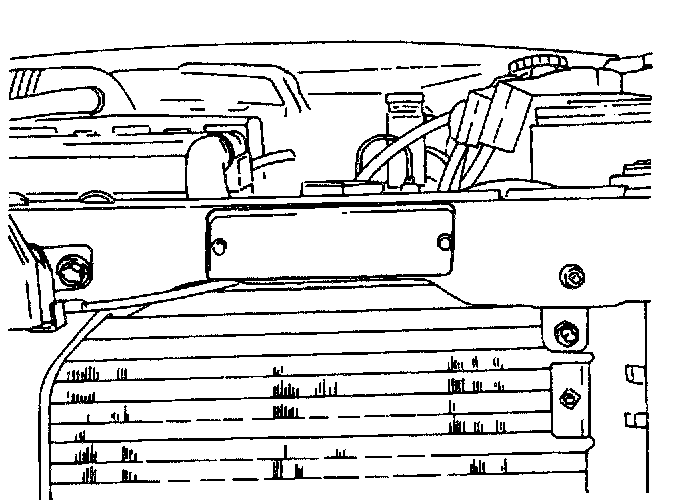

VIN Plate
The VIN plate is attached to the top of the driver's side of the instrument panel.




Engraved VIN Location
The engraved VIN is located on the top right side of the bulkhead.

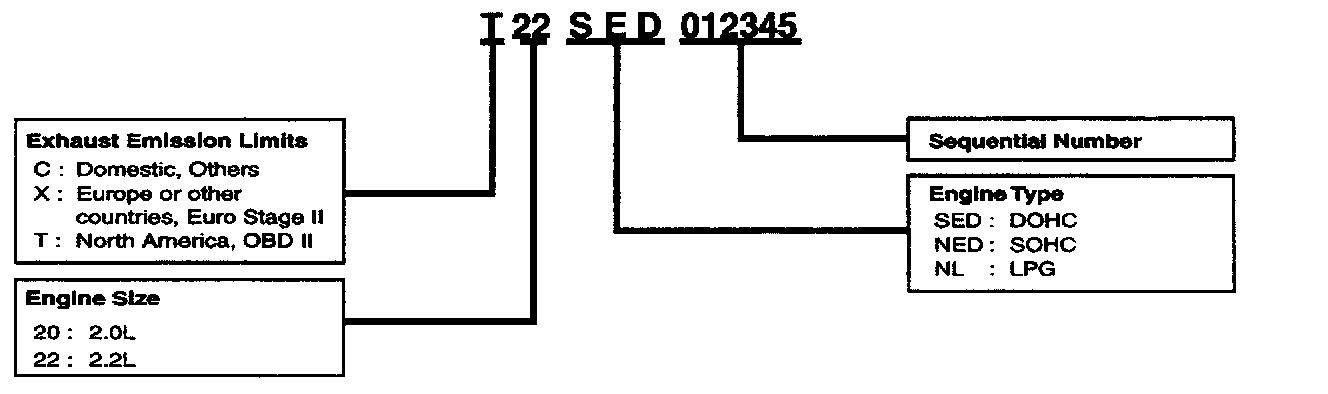

Engine Number

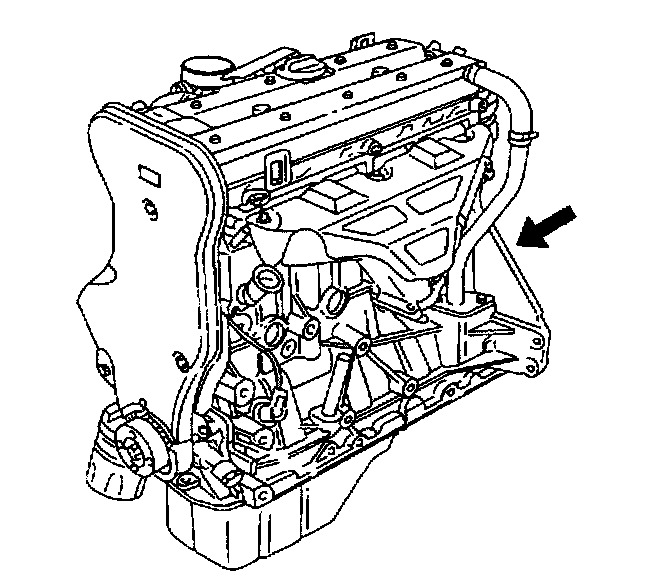

Engraved Engine Number Location
The engraved engine number is located on the engine block beneath the No. 4 exhaust manifold.

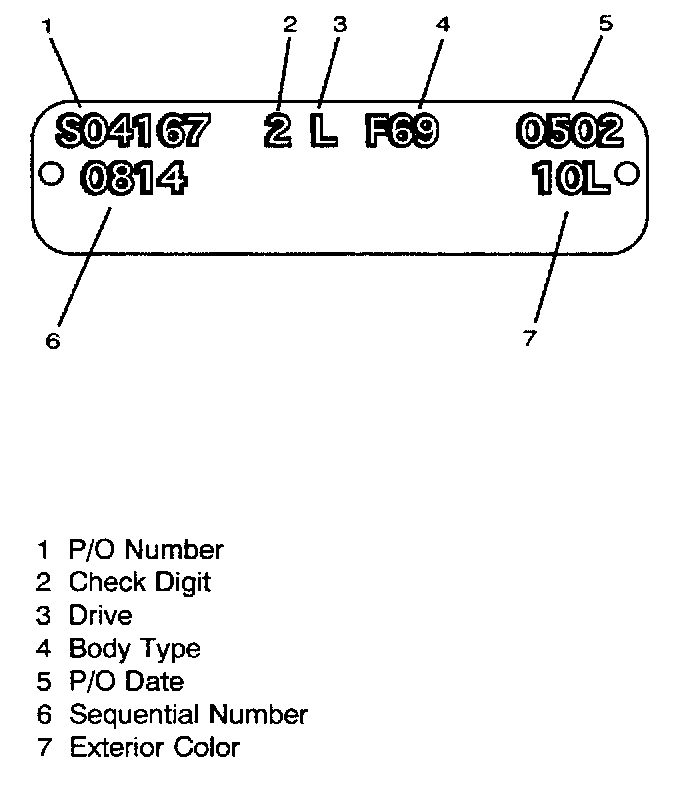

Body Identification Number Plate




Body Identification Number Plate Location
The body identification number plate is attached to the top left side of the front panel support.







Manual Transaxle Identification Number Plate




Manual Transaxle Identification Number Plate Location
The manual transaxle identification number plate is attached to the top of the transaxle case near the engine.







Automatic Transaxle Identification Number Plate




Automatic Transaxle Identification Number Plate Location
The automatic transaxle identification number plate is attached on the upper side of the transaxle case near the bulkhead.
