Lumbar Support Lever

Removal Procedure

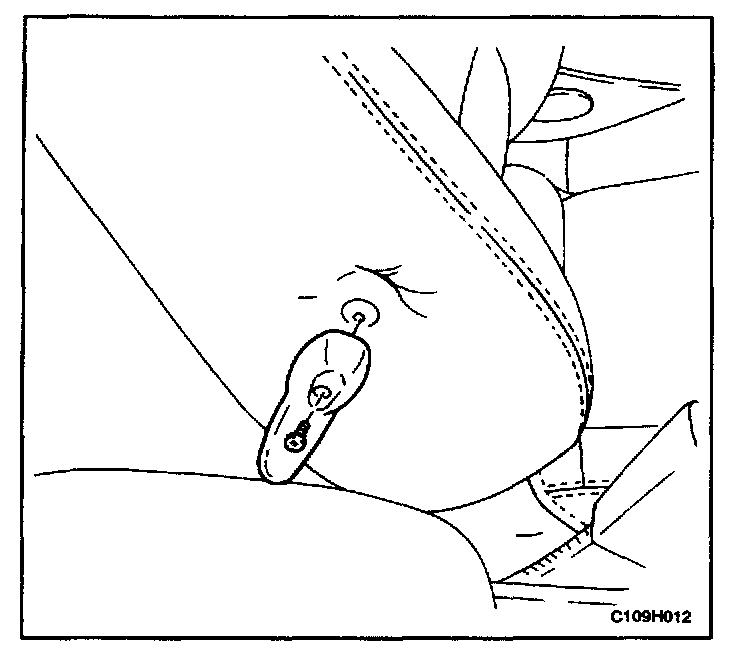

1. Remove the screw and the lumbar support lever.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

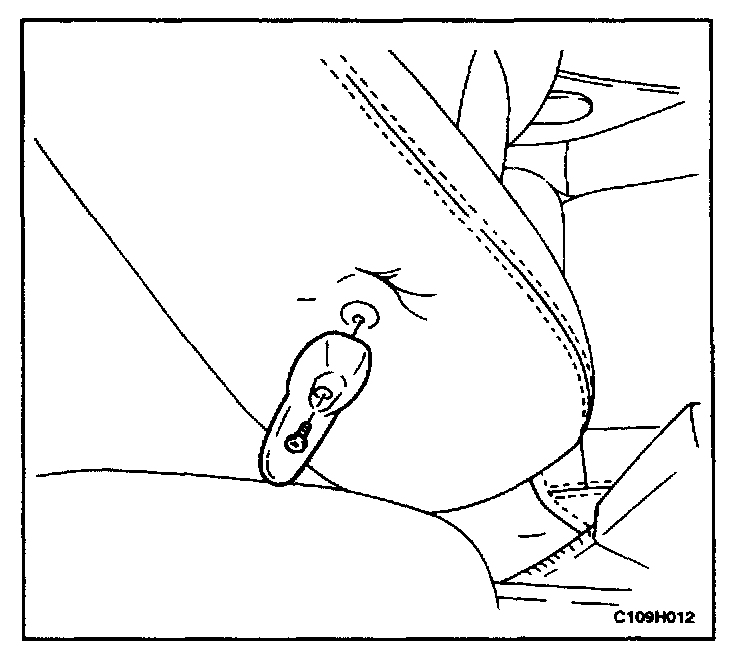

1. Install the lumbar support lever with the screw.

Tighten
Tighten the lumbar support lever screw to 10 Nm (89 lb.in).
