Cruise Control: Testing and Inspection

Test Description

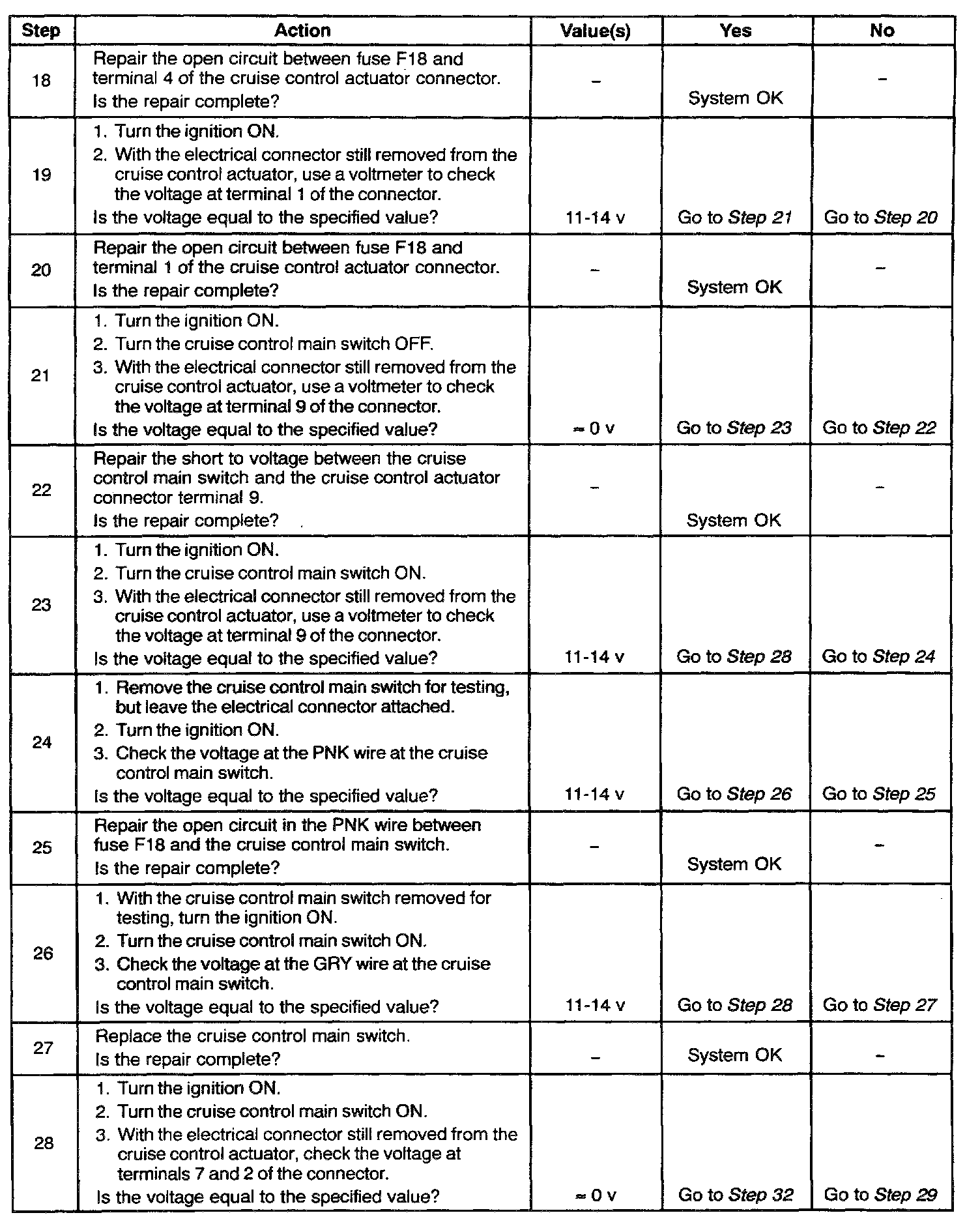

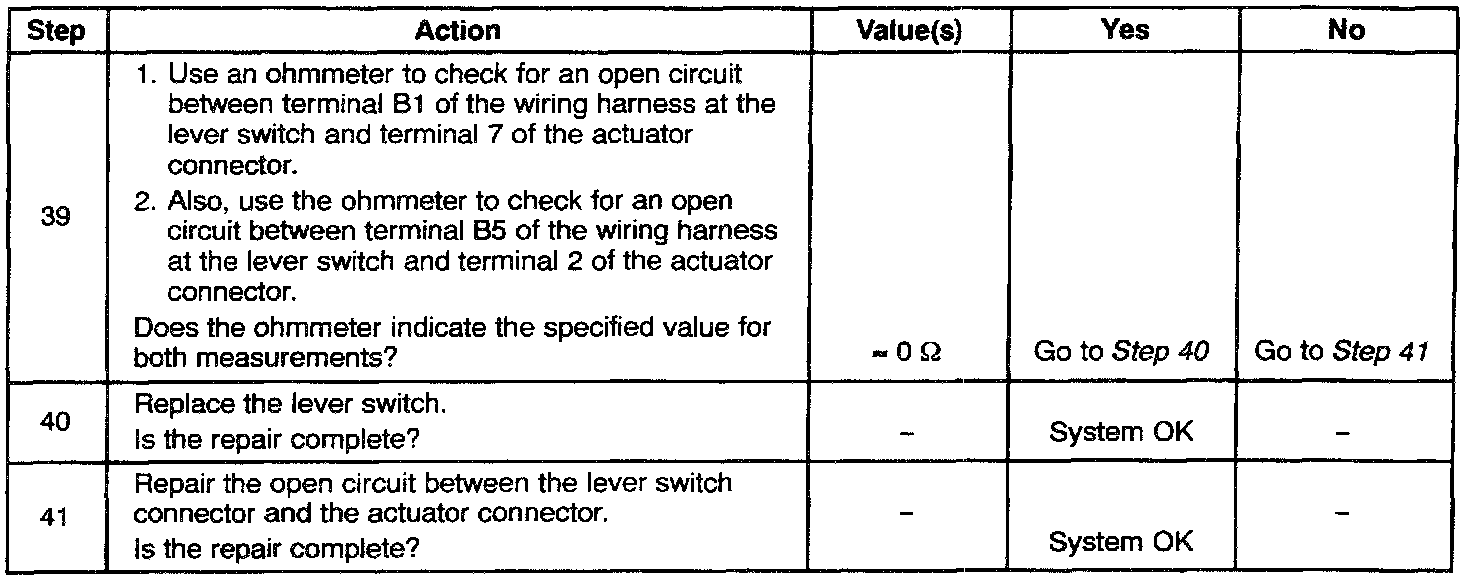

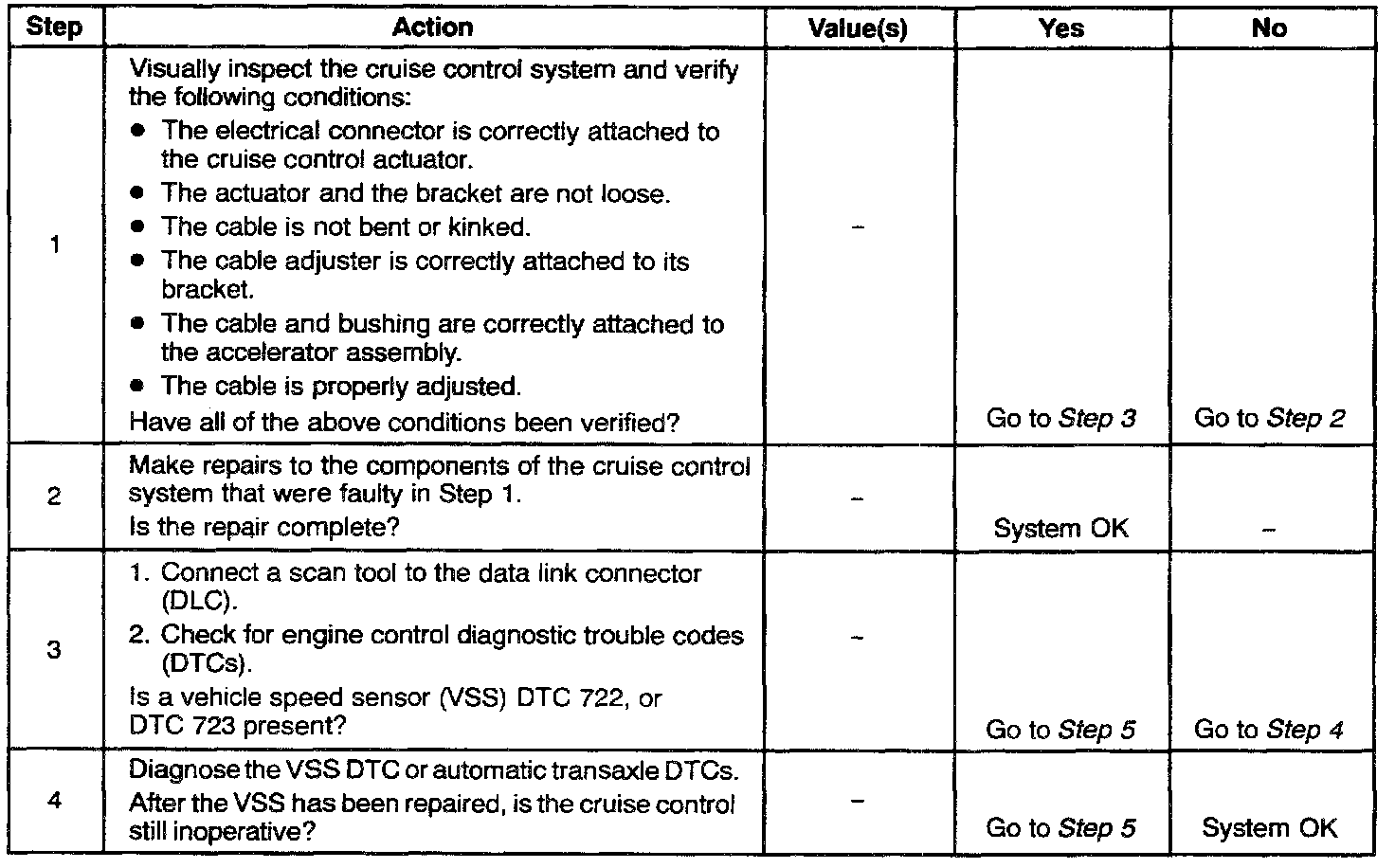

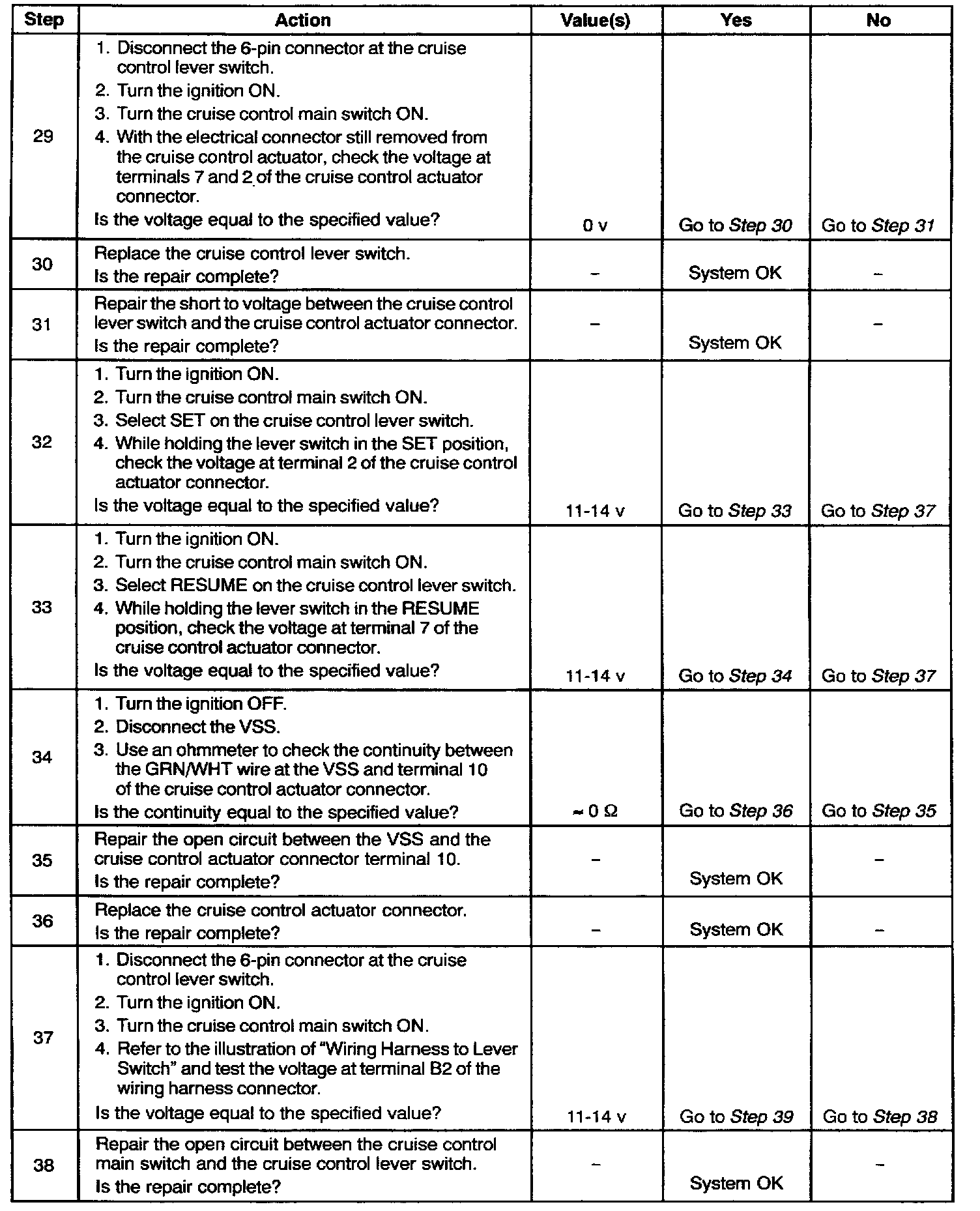

The number(s) below refer to step(s) on the diagnostic table.

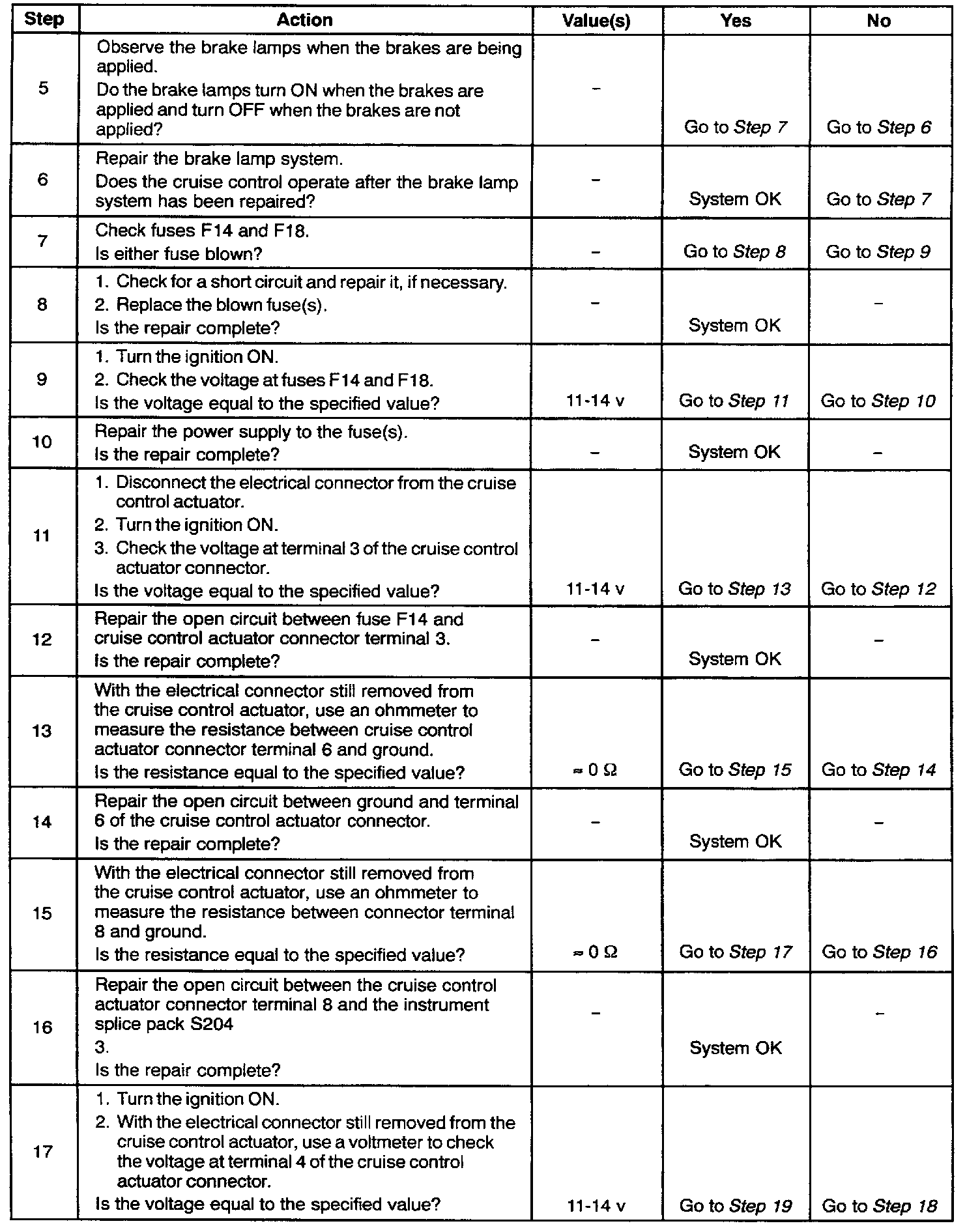

5. The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

Part 1 Of 5:

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

Part 5 Of 5:

Cruise Control Does Not Operate
