ABS (Antilock Brake System) Circuit
>>
Electrical Diagram
Electrical Diagram
ABS (Antilock Brake System) Circuit:

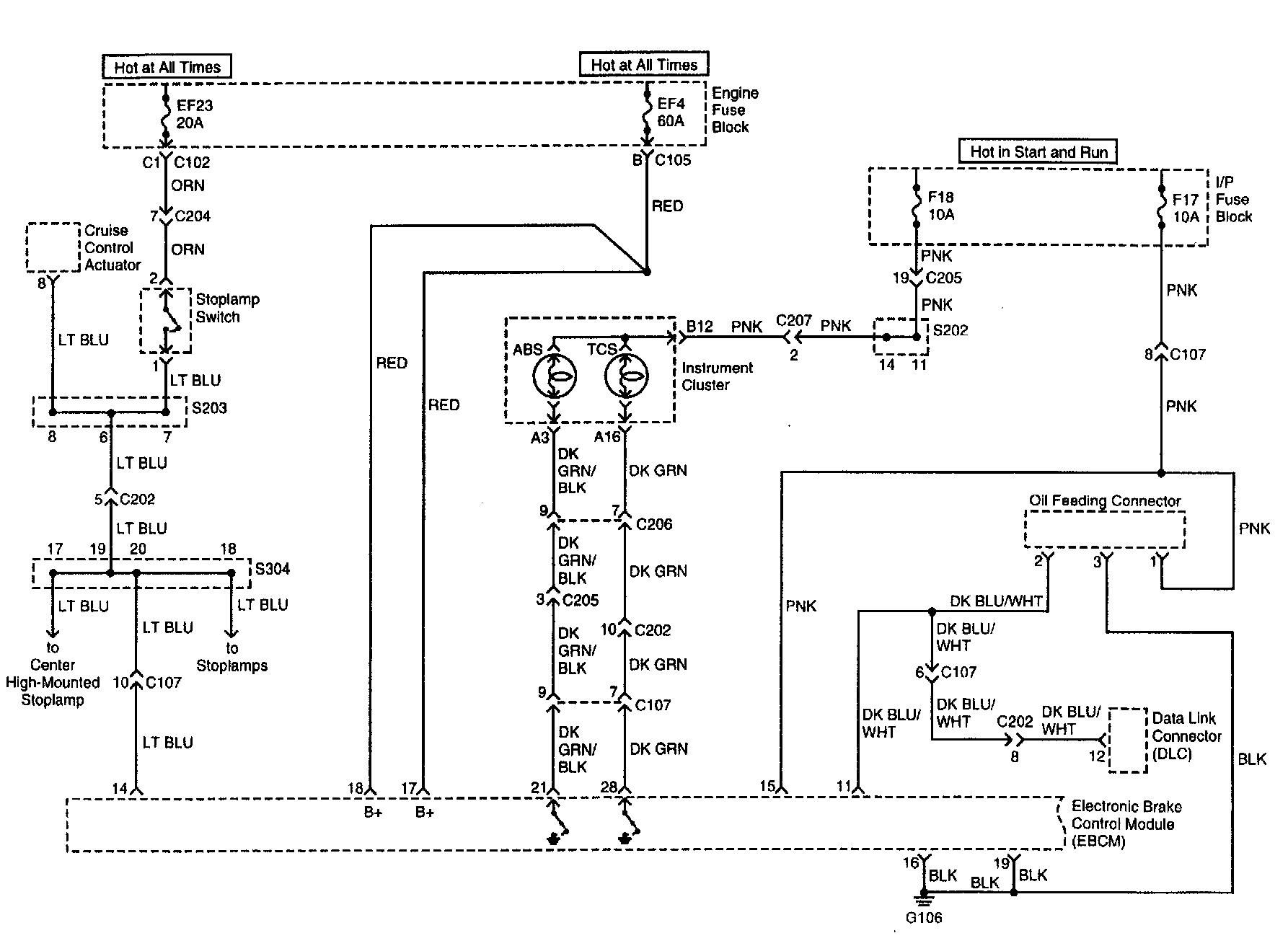

Anti Lock Brake Block Diagram (Part 1 Of 2):

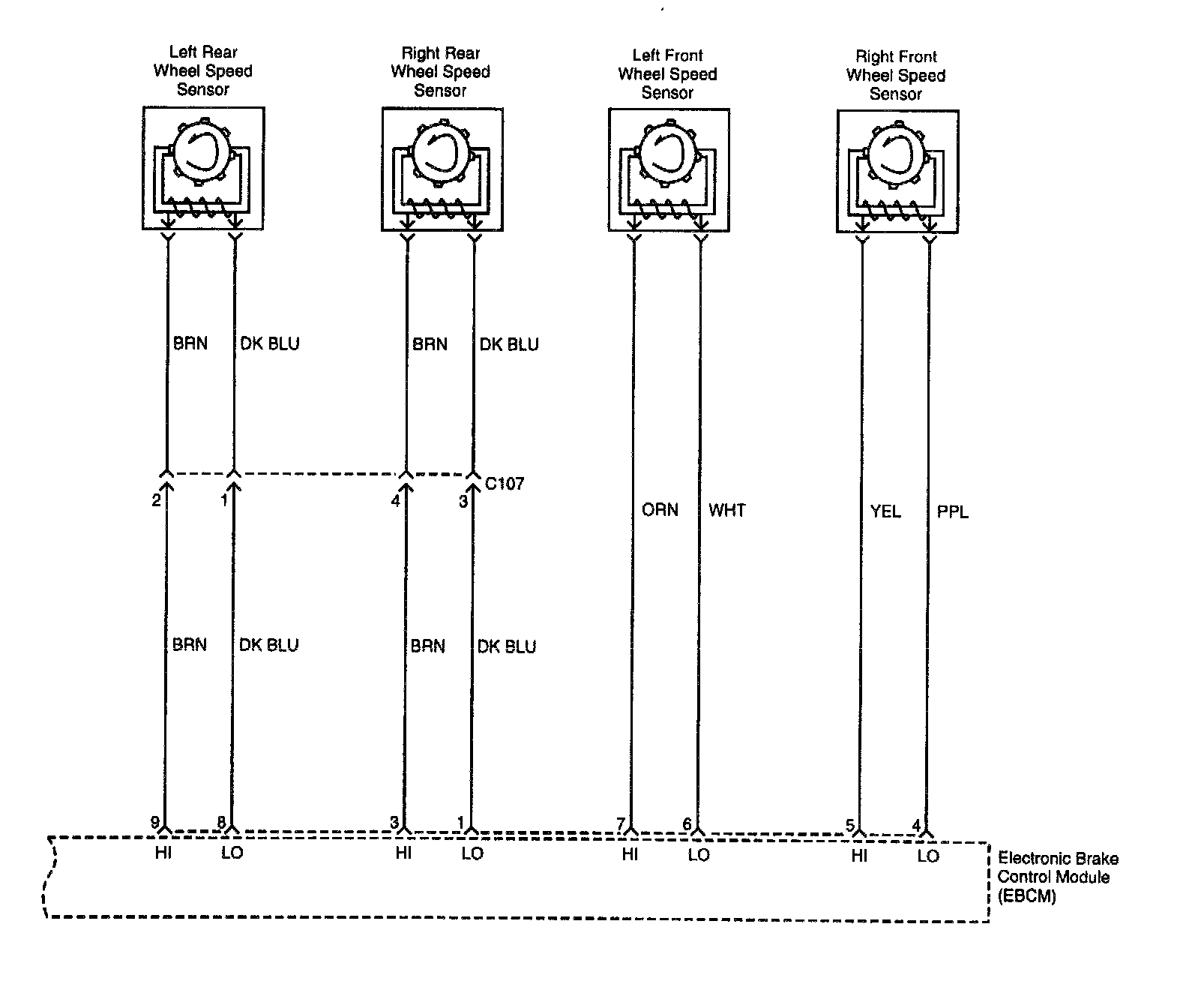

Anti Lock Brake Block Diagram (Part 2 Of 2):
