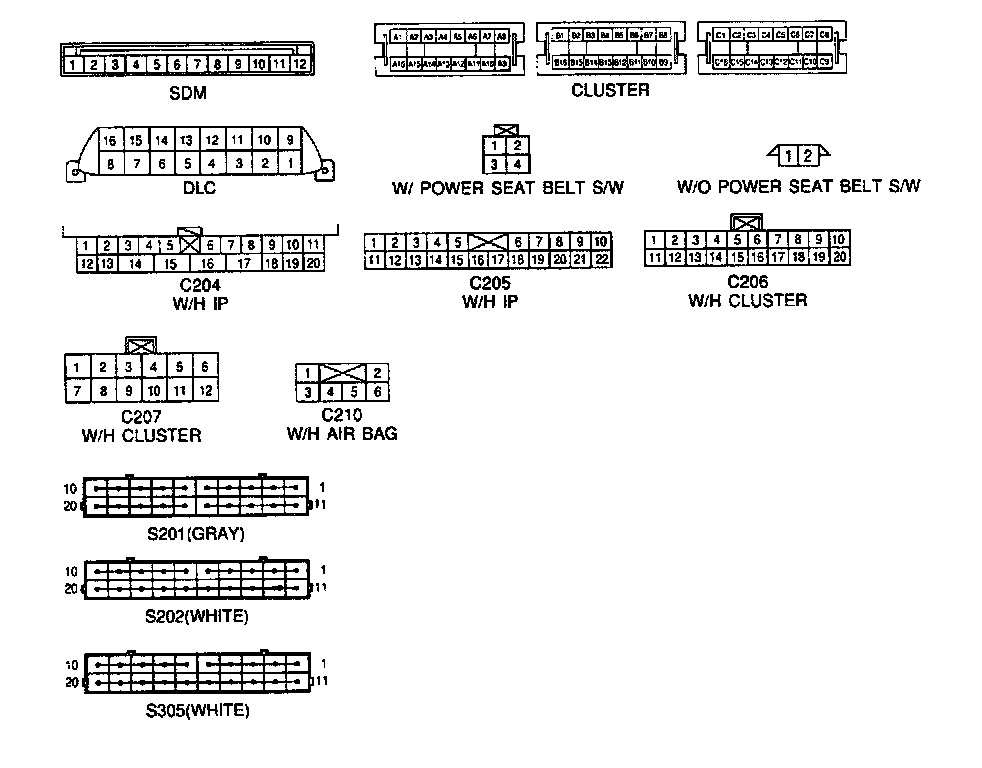

Connector Identification Symbol & Pin Number Position

Air Bag Control Unit (SDM) & Air Bag Warning Lamp Circuit:



Air Bag Control Unit (SDM) & Air Bag Warning Lamp Circuit:
