Air Bag (SDM: Sensing & Diagnostic Module)
>>
Electrical Diagram
Electrical Diagram

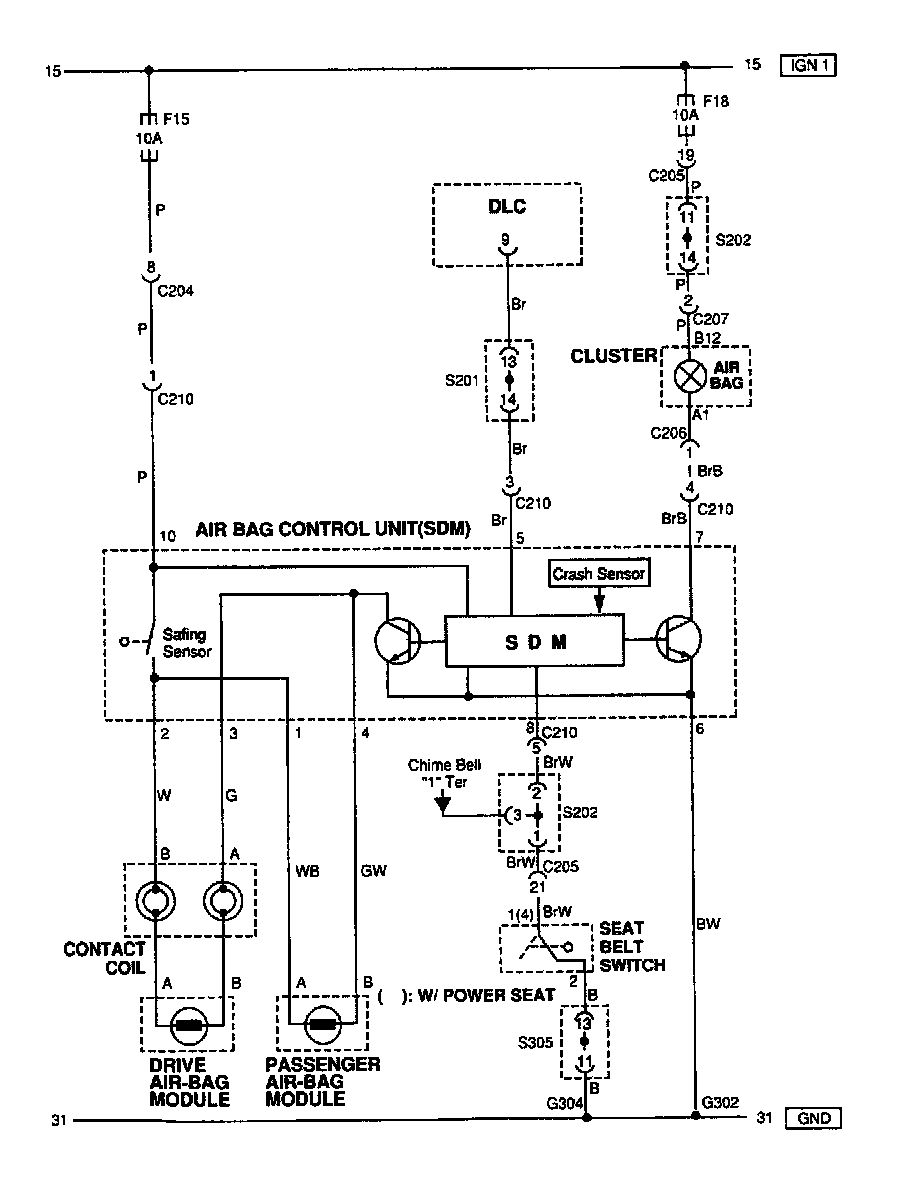

Air Bag Control Unit (SDM) & Airbag Warning Lamp Circuit:
