Home >> Daewoo >> 1999 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Anti Theft Control System Circuit >> Splice Pack

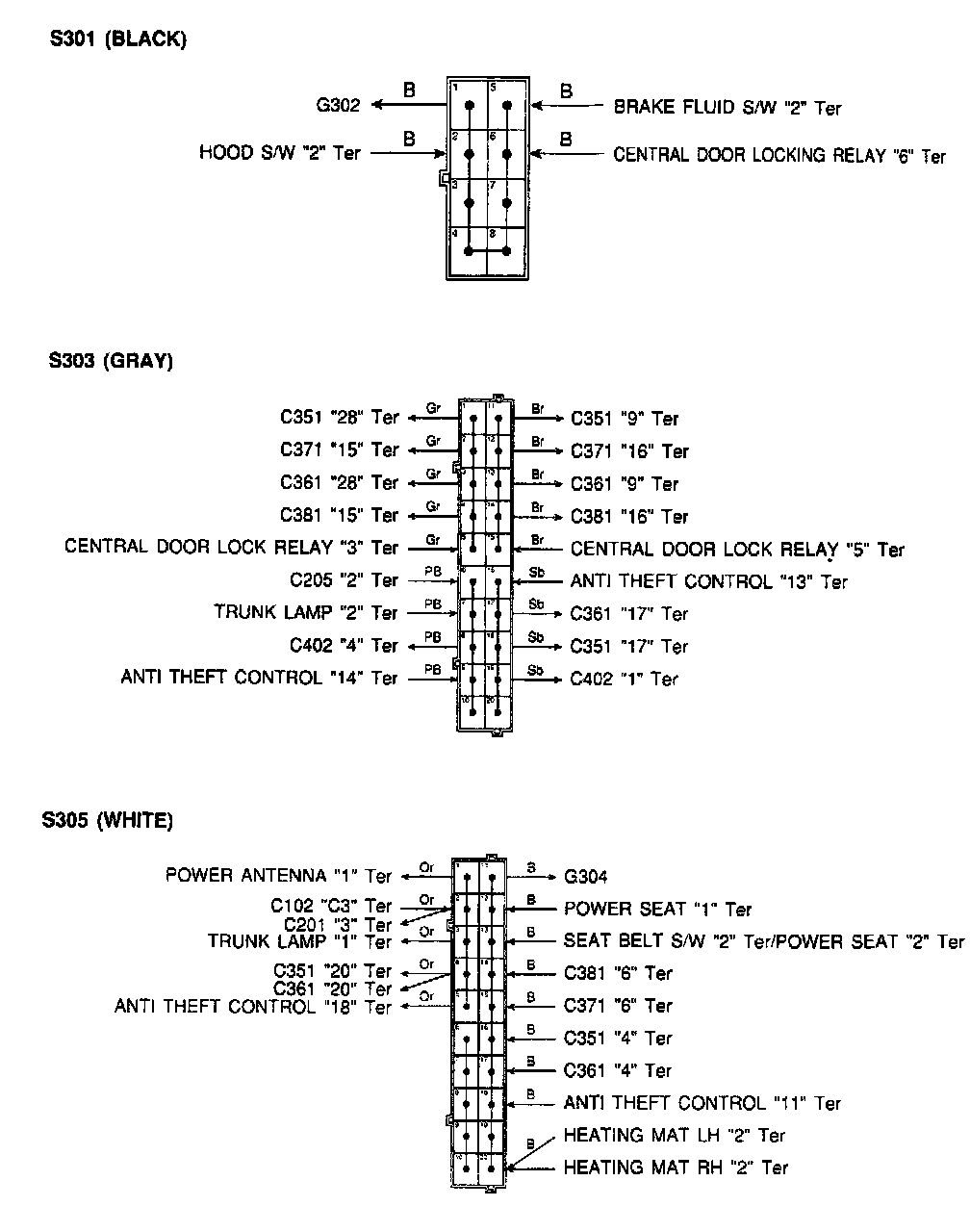

Splice Pack

Anti Theft Control System Circuit:
