Auto A/C

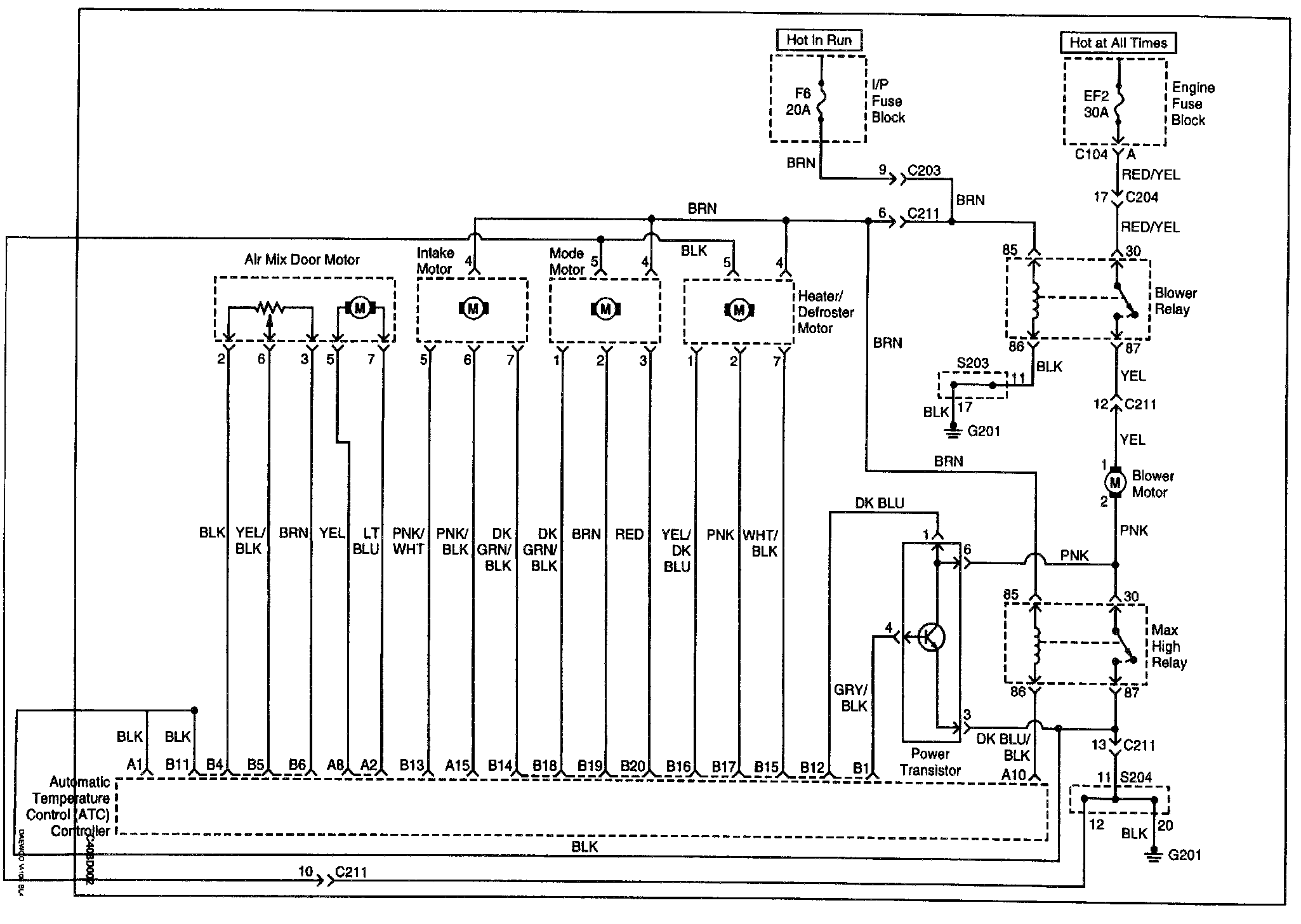

���A/C Blower and Motor Controls Diagram:

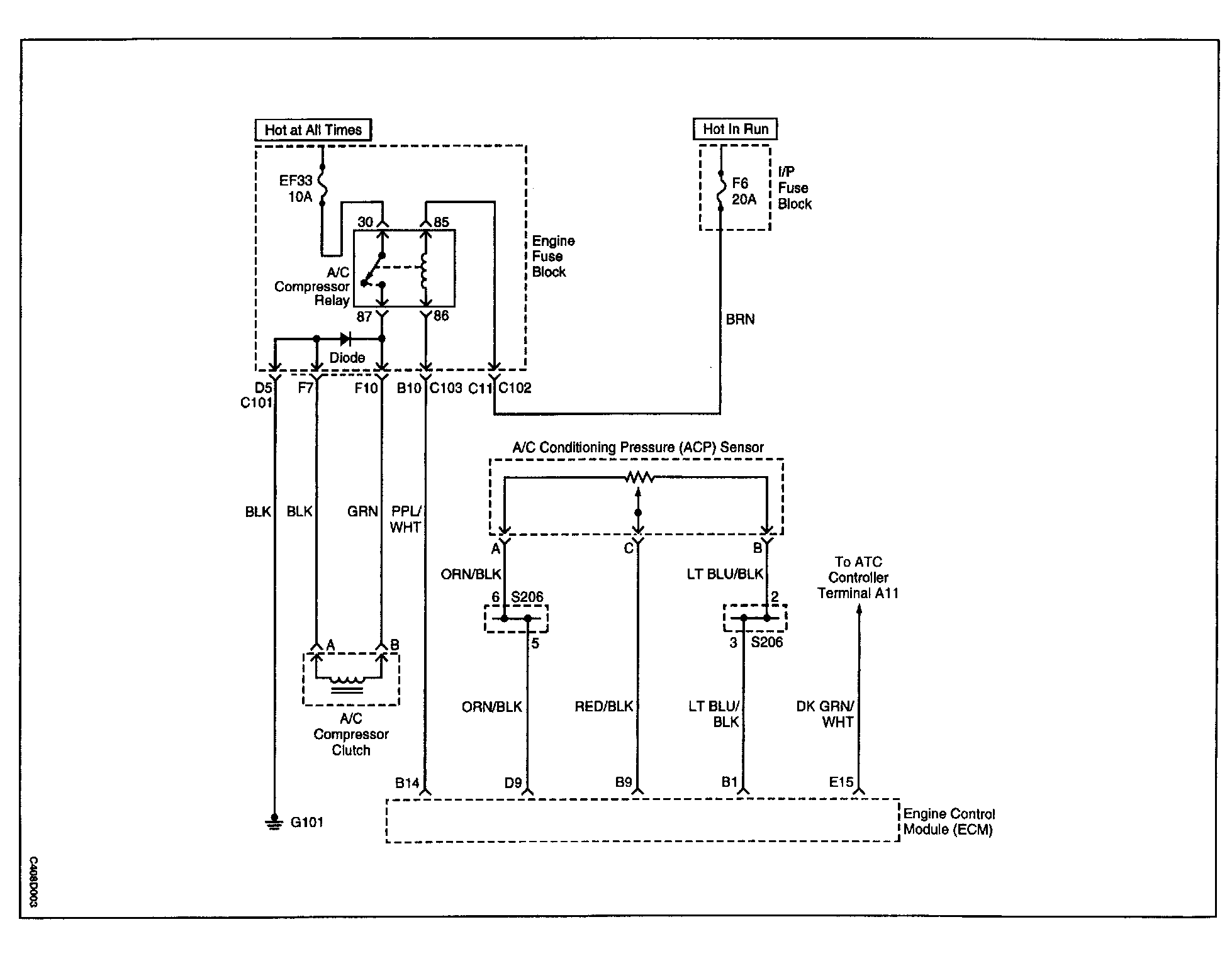

A/C Compressor Controls Diagram:

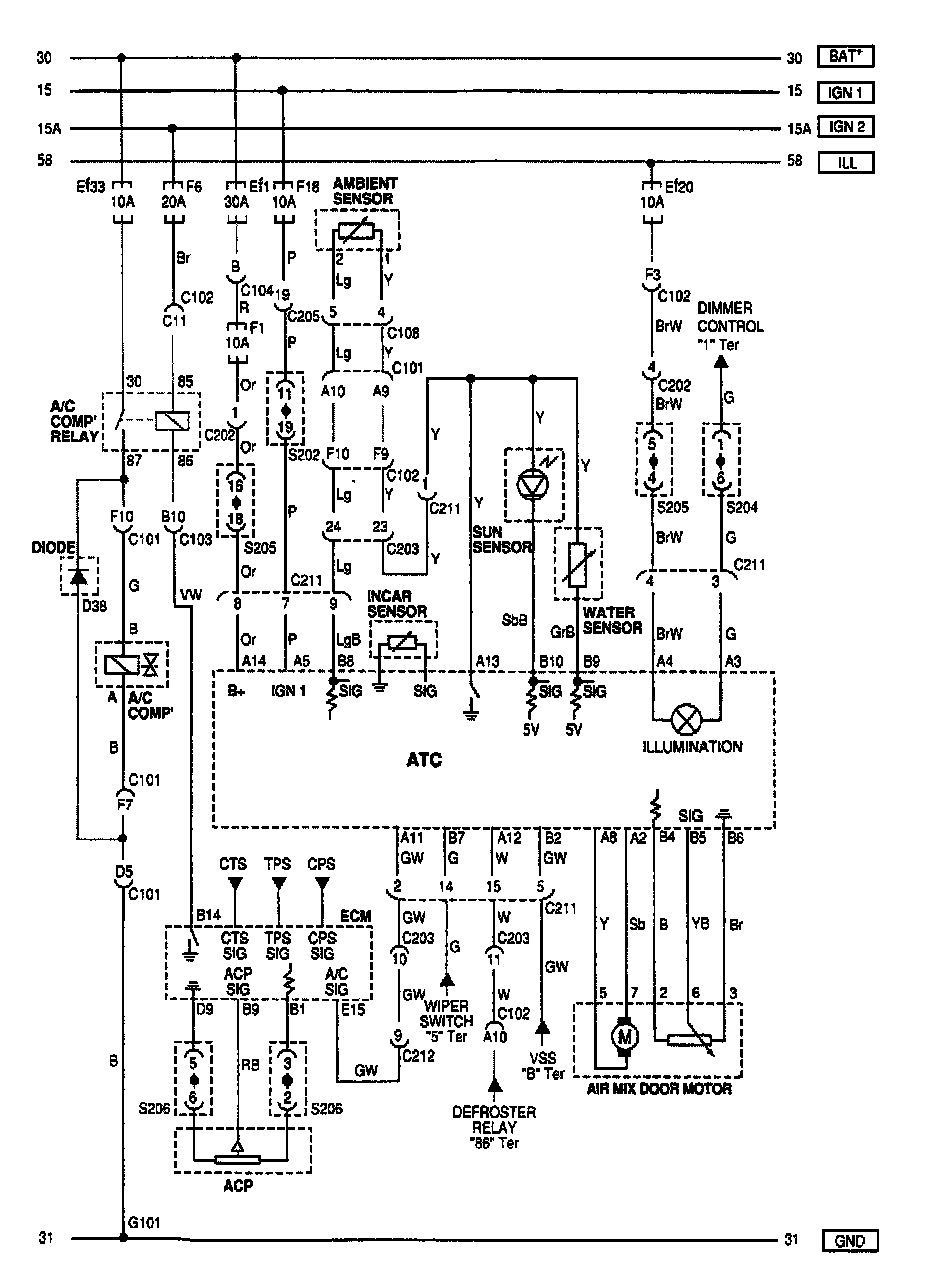

A/C Sensors and Defoggers Diagram:

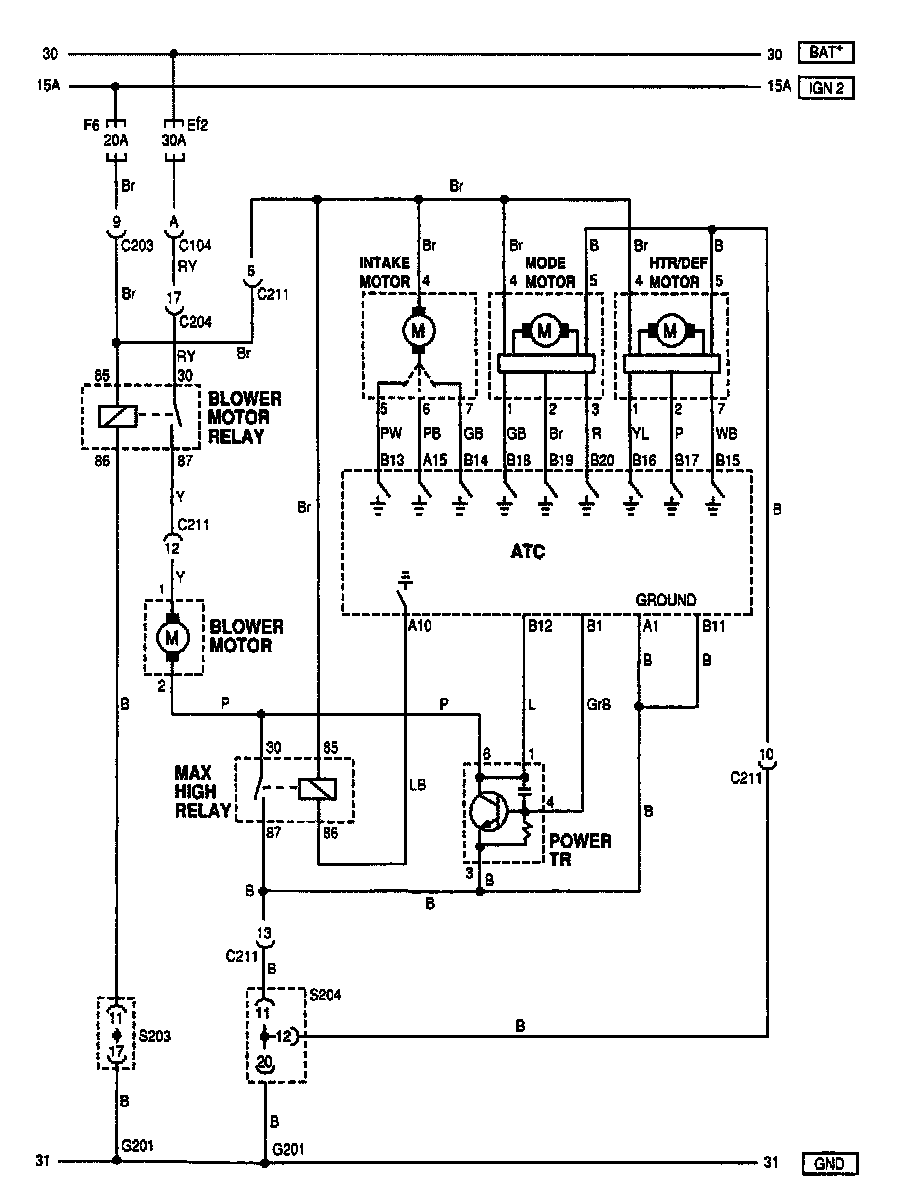

Motor (Intake, Mode, Heater/Defroster, Blower) & Power TR Circuit:

Air Mix Door Motor & A/C Comp. Sensors (Amient, Sun, Water, Incar) Circuit:
