System Diagram

Head Lamp & DRL (Day Time Running Light) Circuit:

Illumination Dimmer Control Circuit:

License Plate, Parking, Marker & Tail Lamp Circuit:

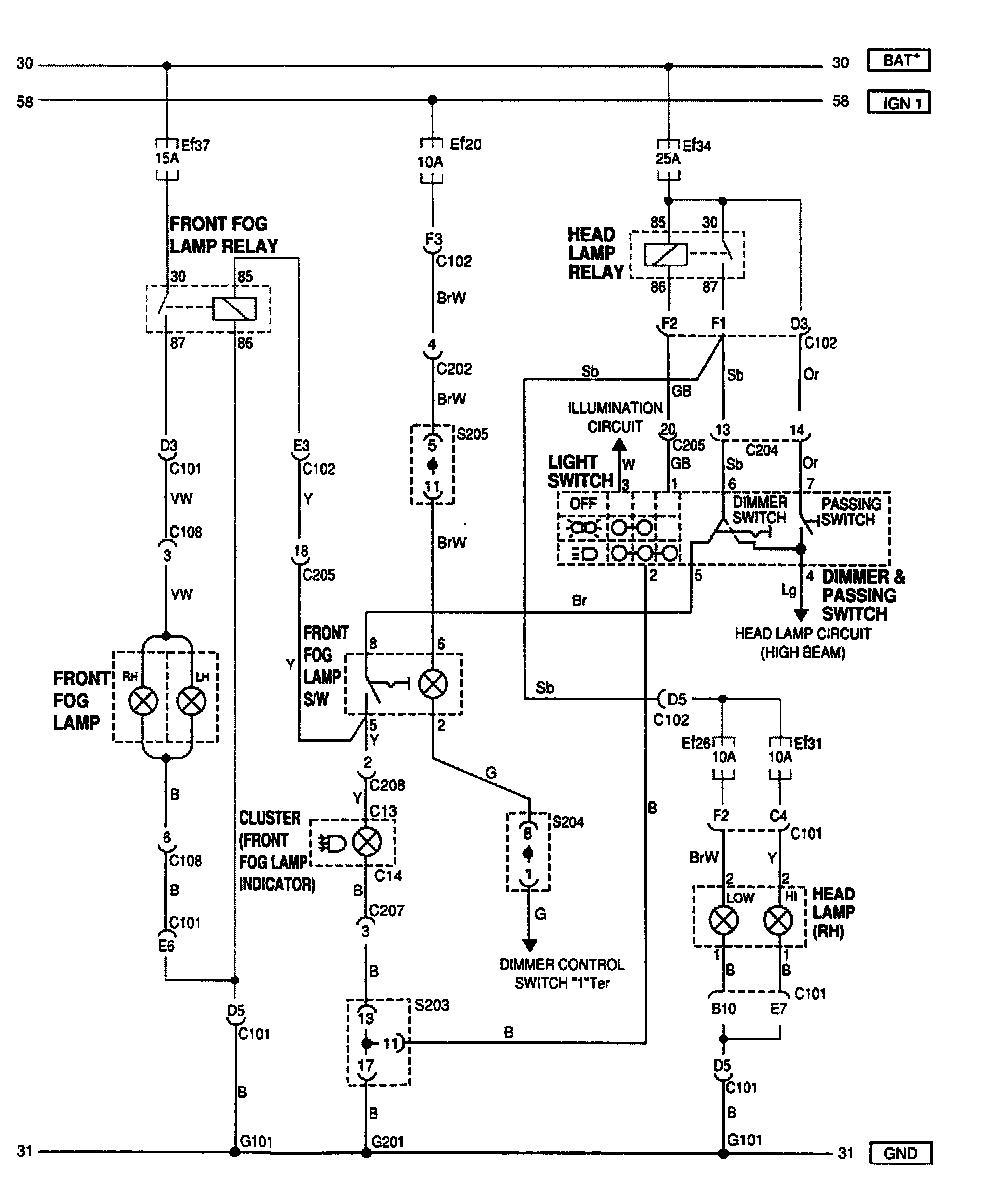

Front Fog Lamp Circuit:

Hazard & Turn Signal Lamp Circuit:

Stop Lamp, Center High Mount Stop Lamp (CHMSL) & Reverse Lamp Circuit:

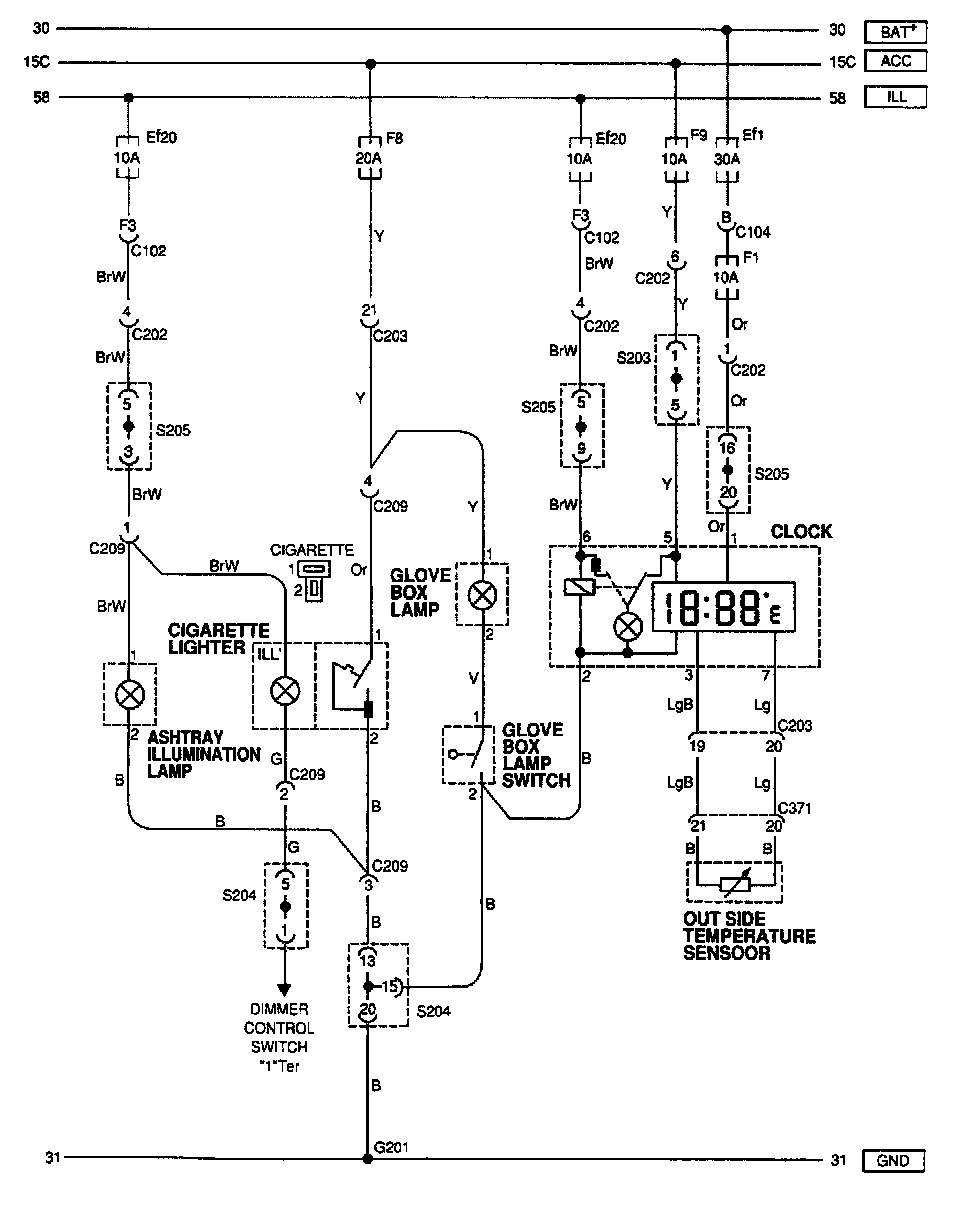

Illumination (Ashtray, Cigarette Lighter), Cigarette Lighter, Glove Box Lamp & Clock Circuit:

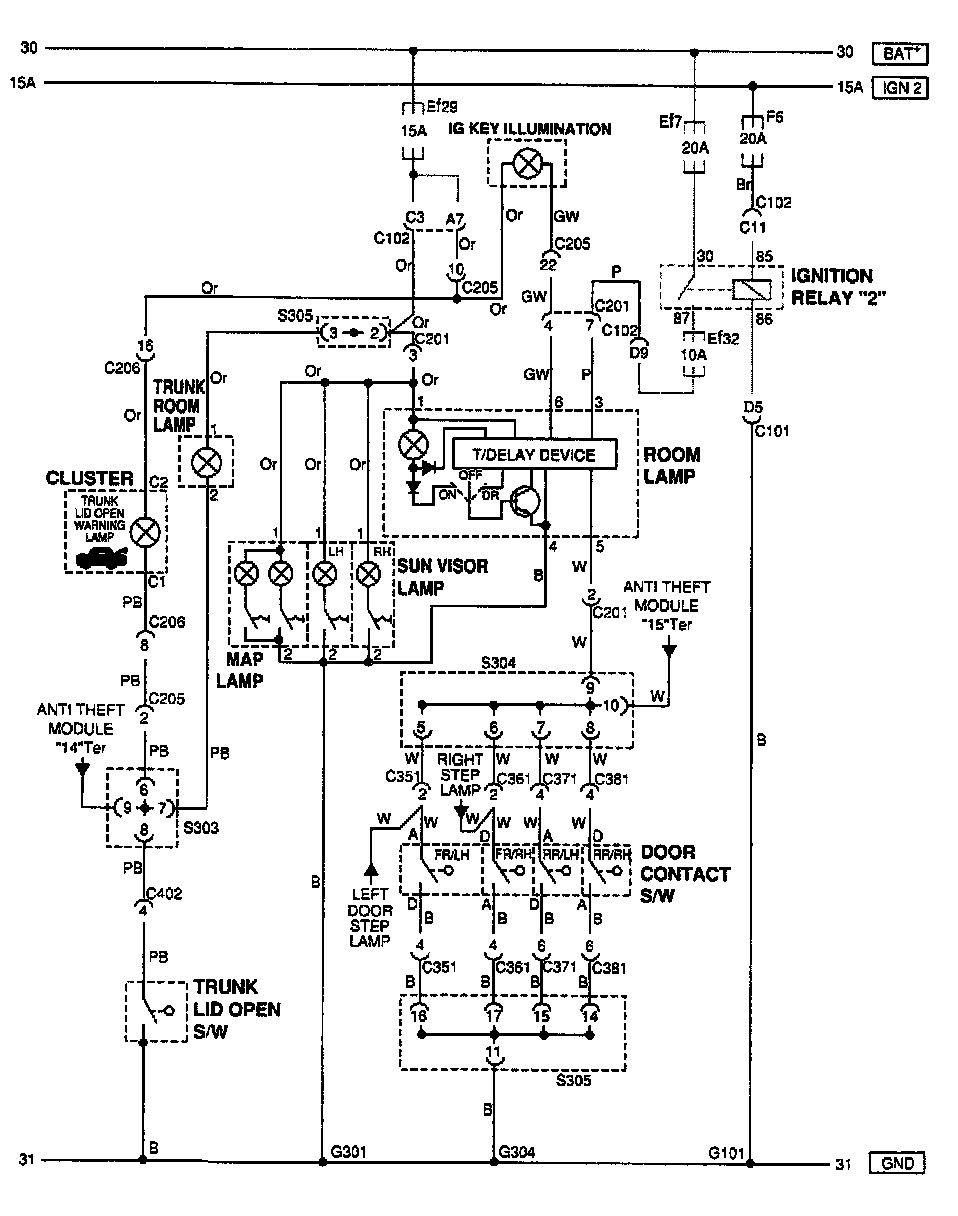

Lamps, Key Illumination & Trunk Lid Open Warning Lamp Circuit W/Sunroof:

Lamps, Key Illumination & Trunk Lid Open Warning Lamp Circuit W/O Sunroof:

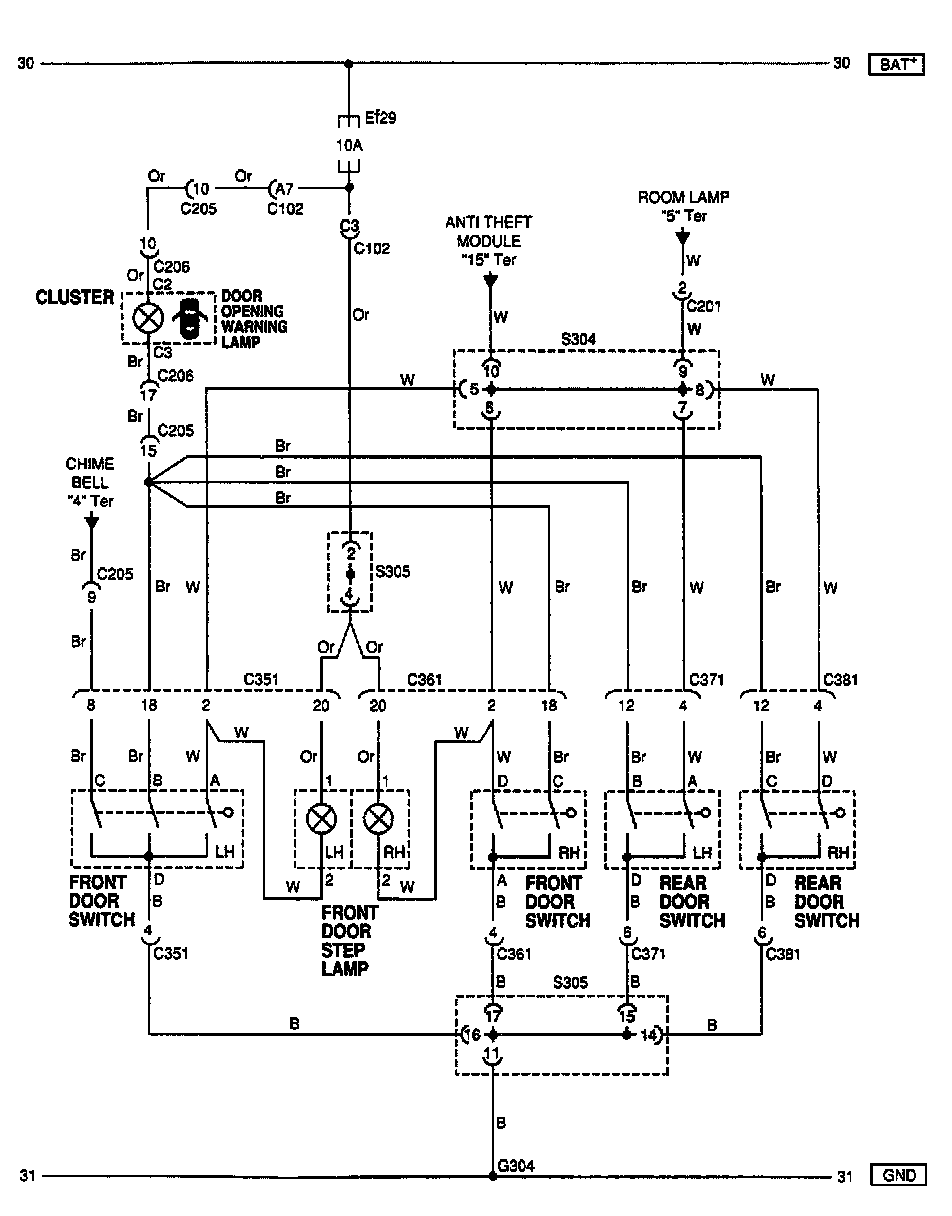

Front Door Step Lamp, Door Switch & Door Opening Warning Lamp Circuit:

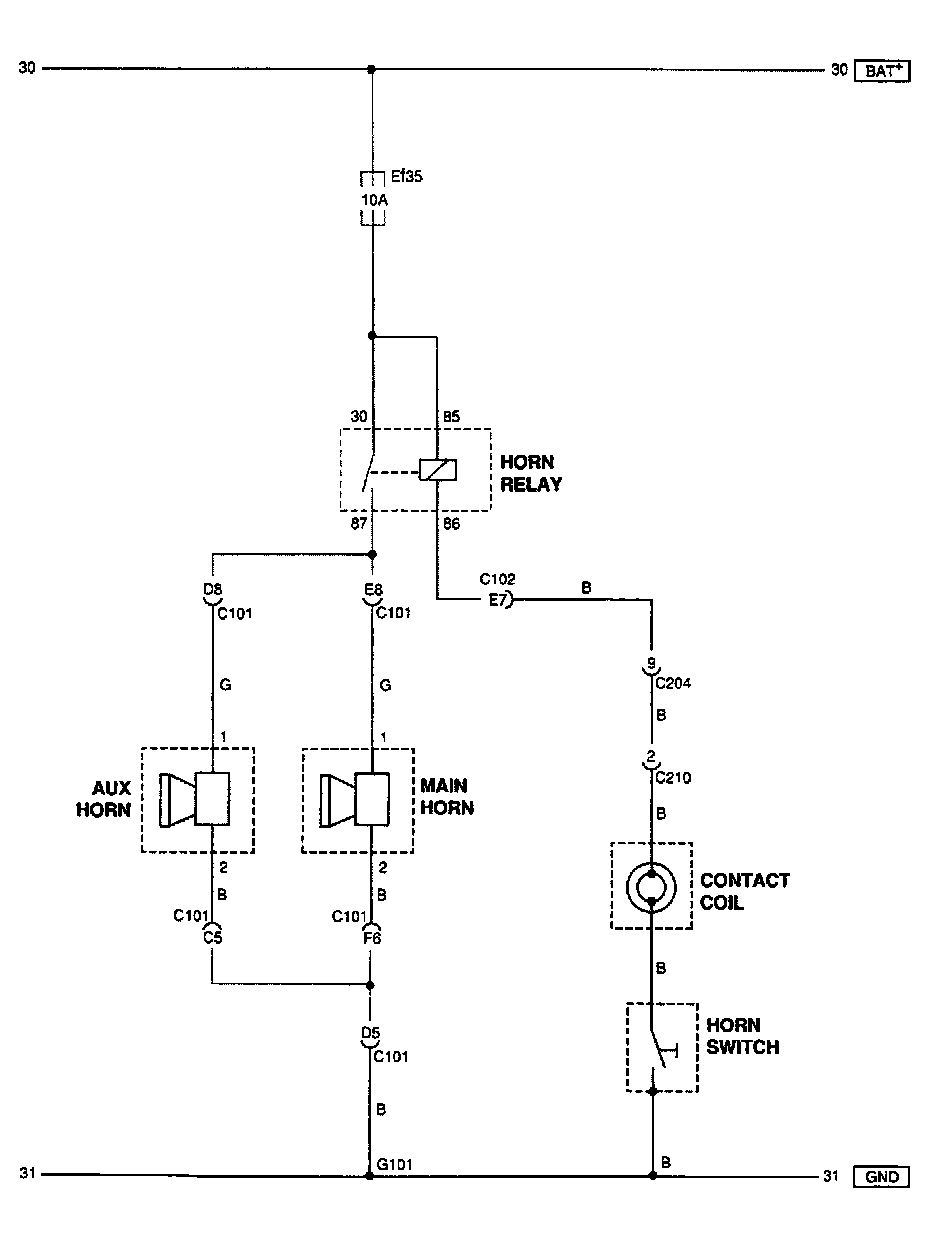

Horn Circuit:
