Home >> Daewoo >> 1999 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Seat Circuit >> Splice Pack

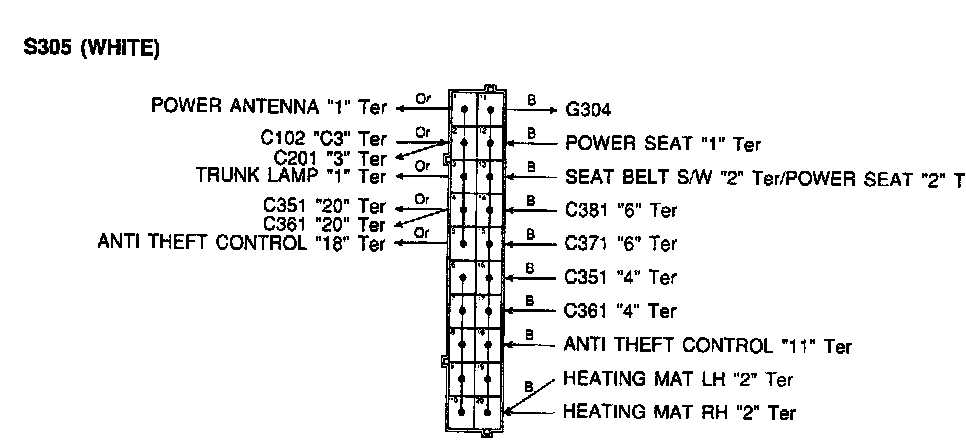

Splice Pack

Power Seat Circuit:
