System Diagram

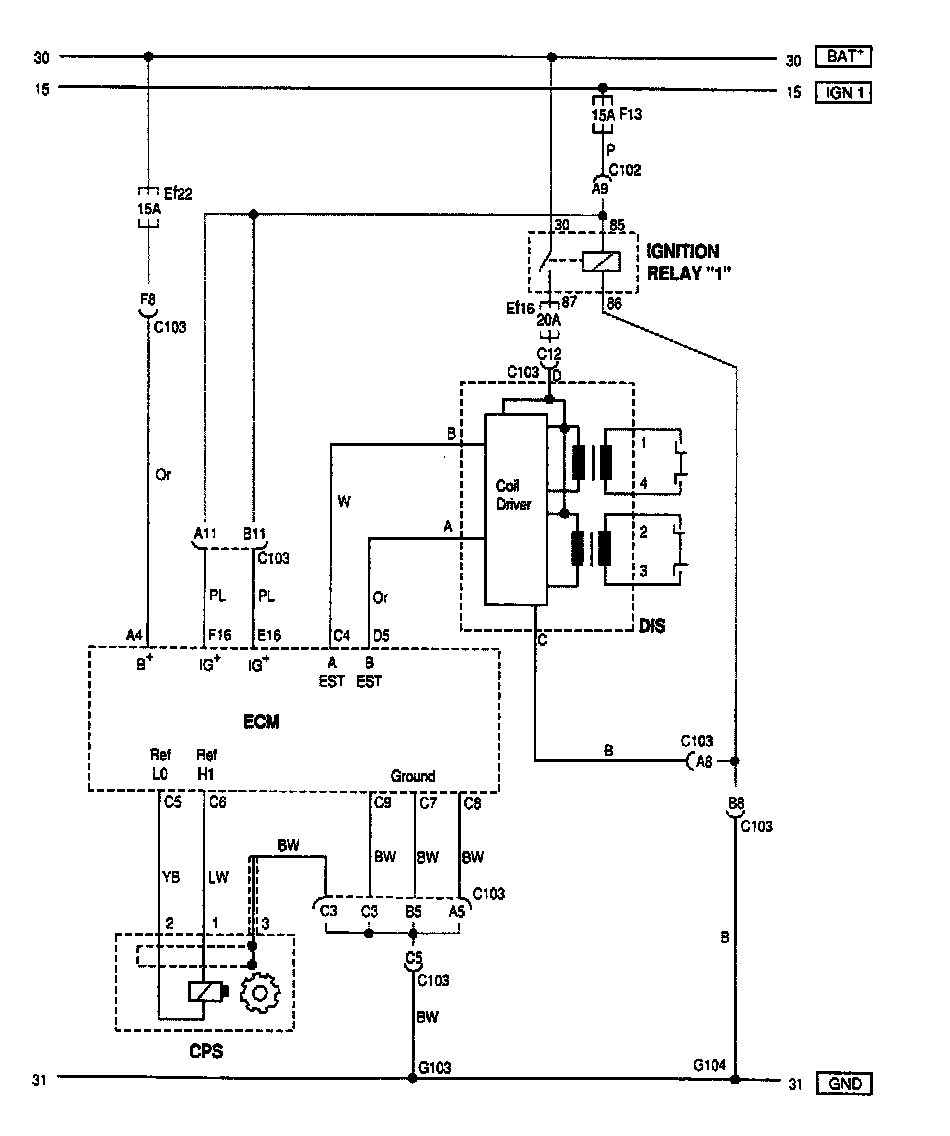

Ignition And Crankshaft Position Sensor:

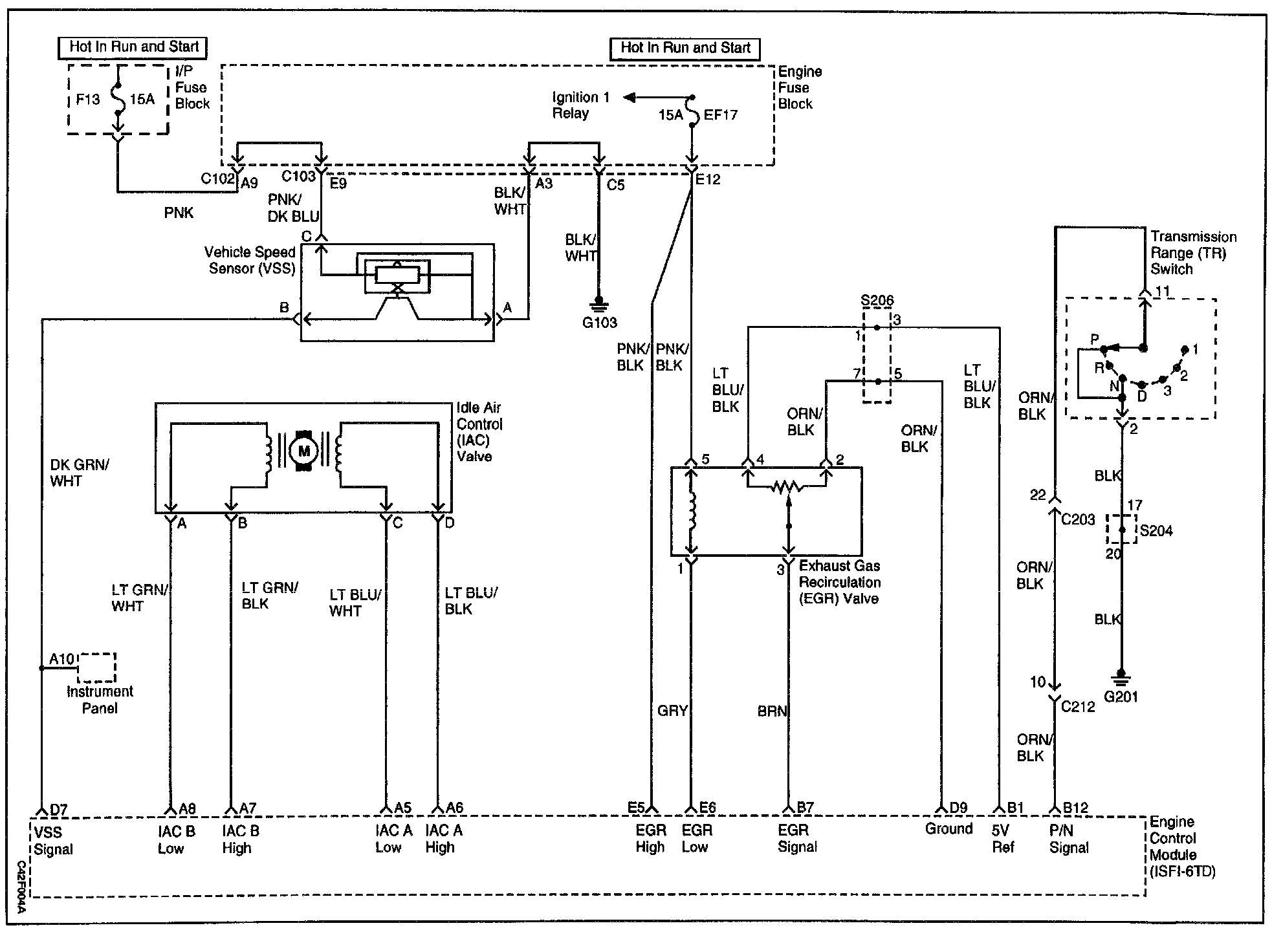

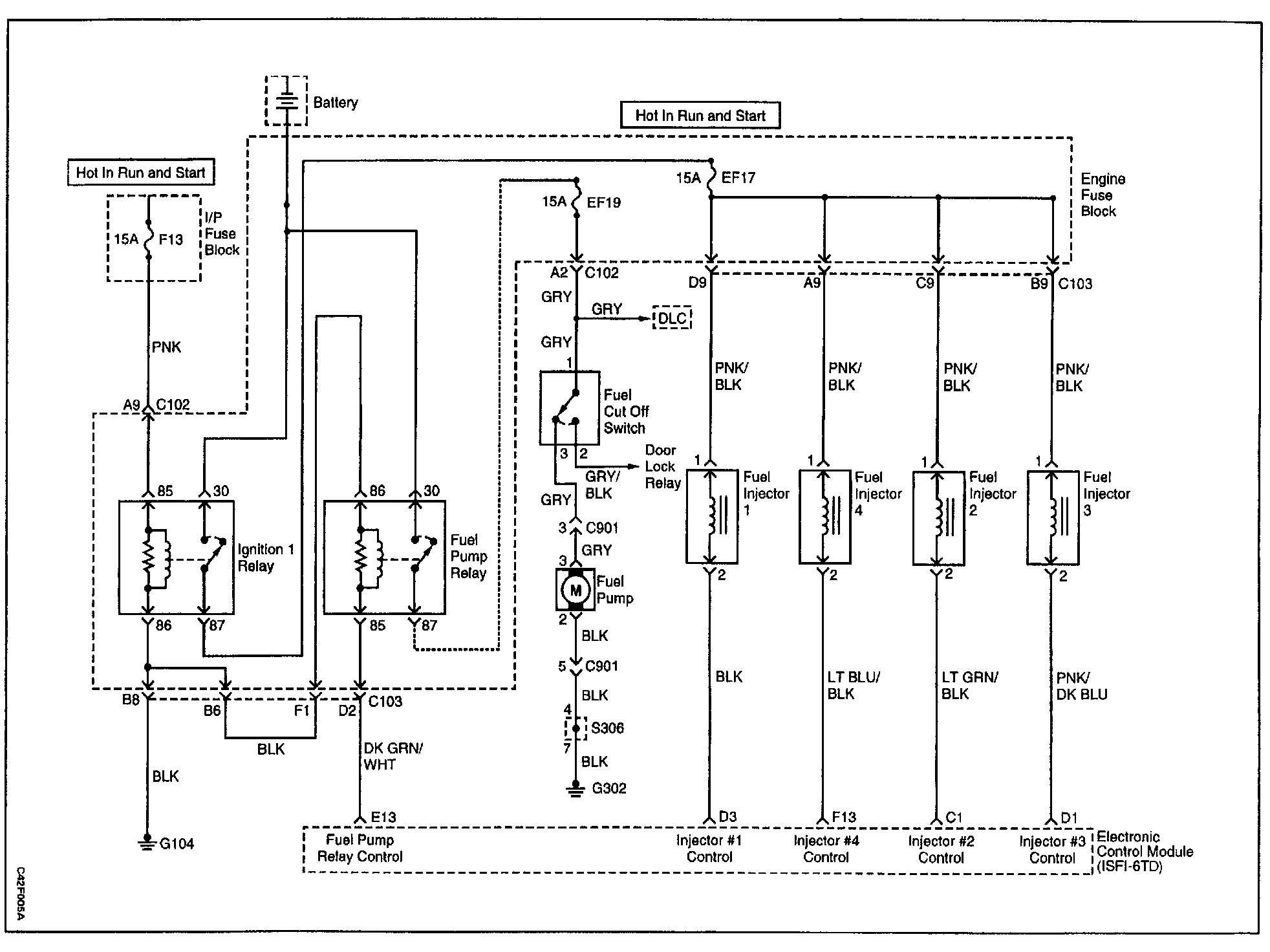

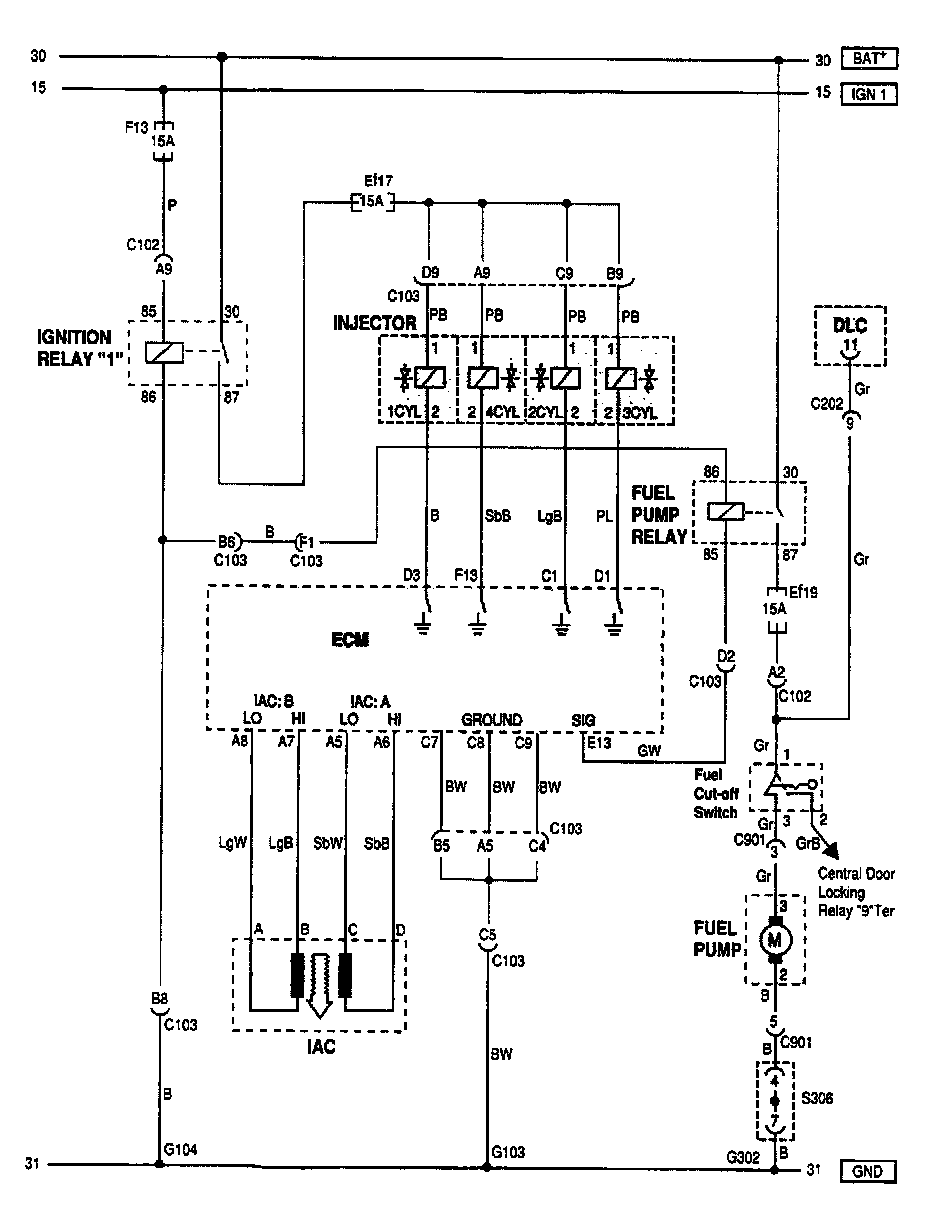

Injector, Idle Air Control, Data Link Connector And Fuel Pump:

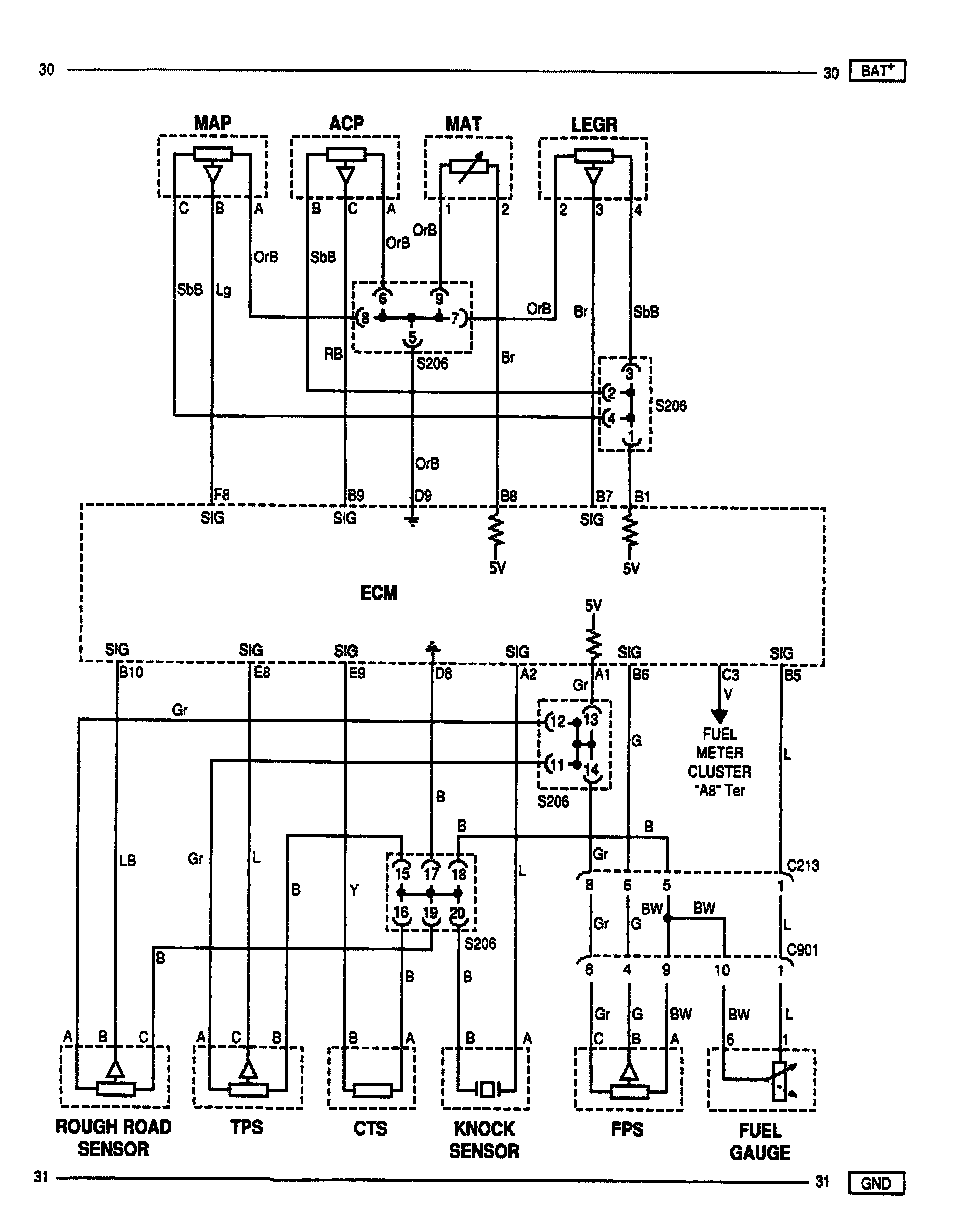

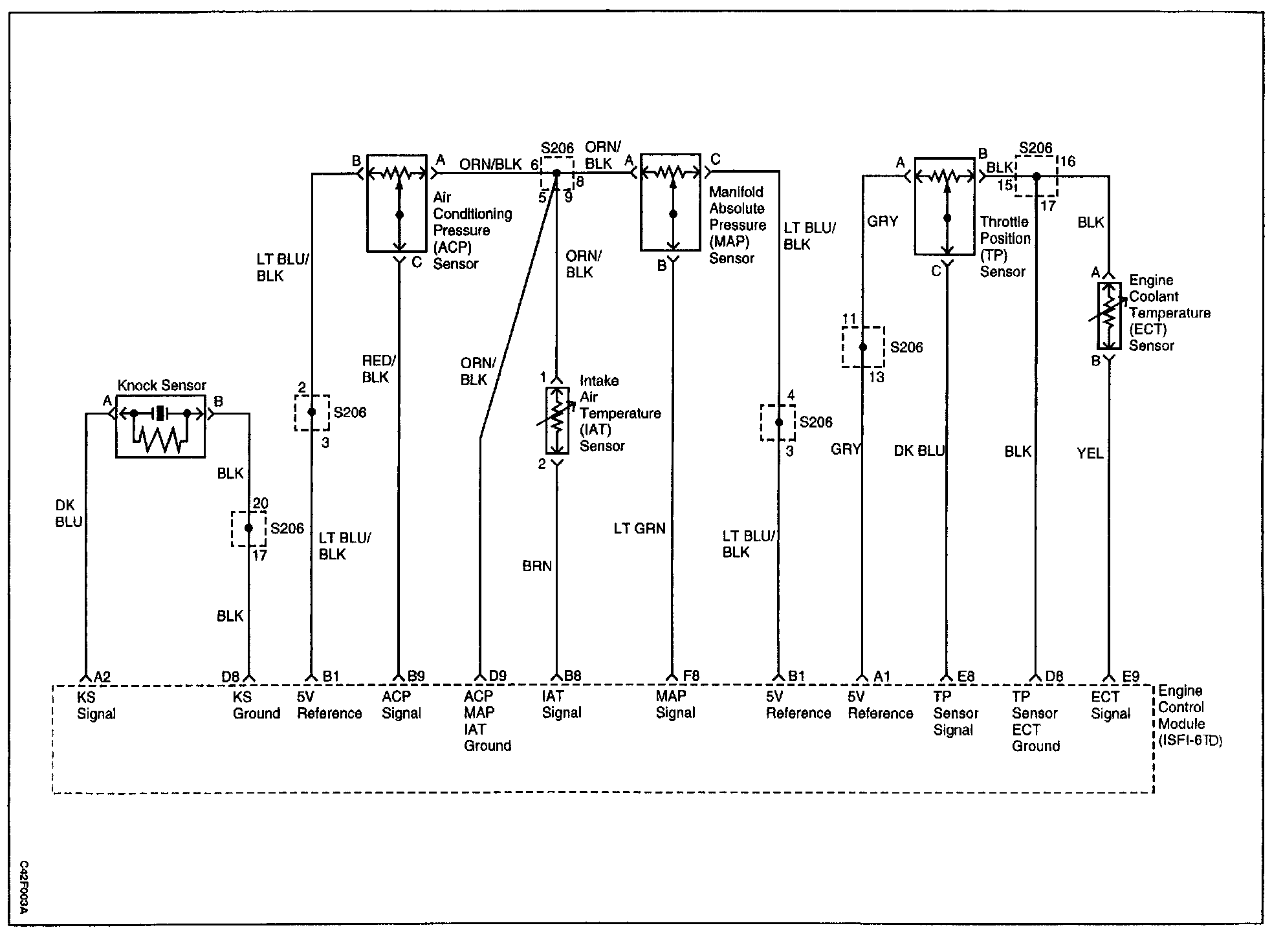

Engine Sensors:

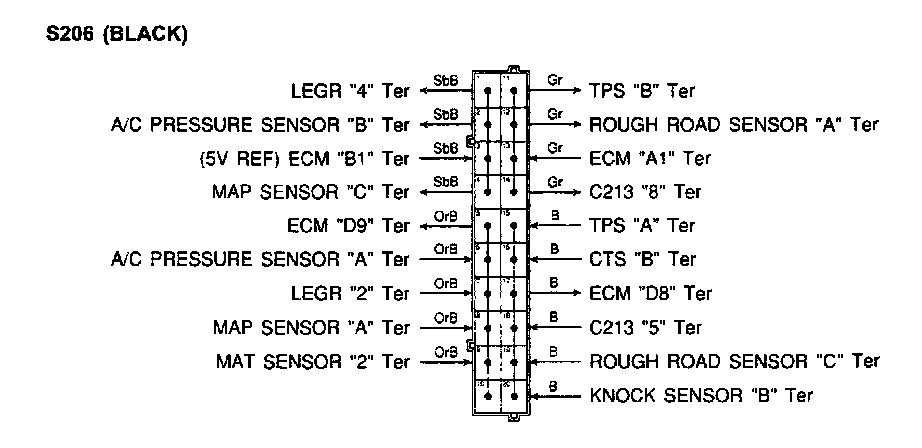

S206 Black:

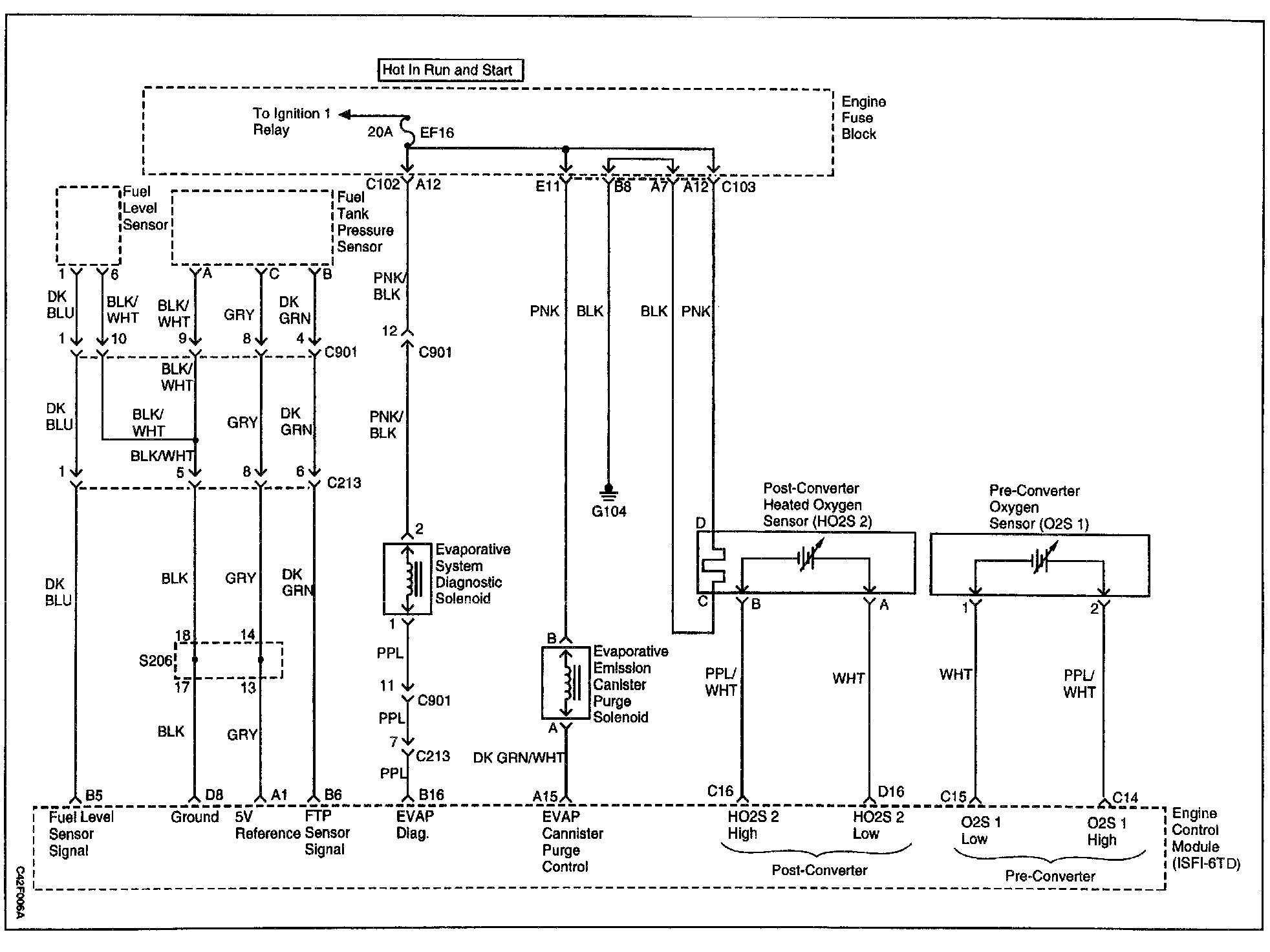

Camshaft Position Sensor And Oxygen Sensors:

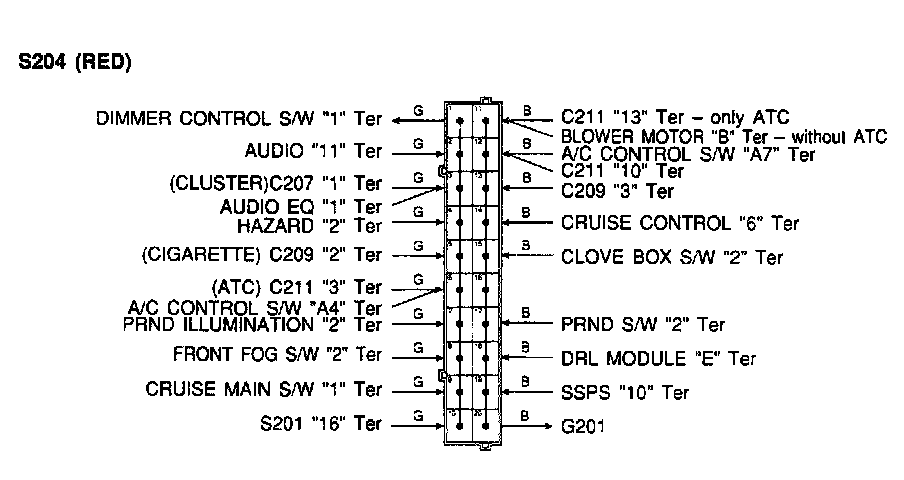

S204 Red:

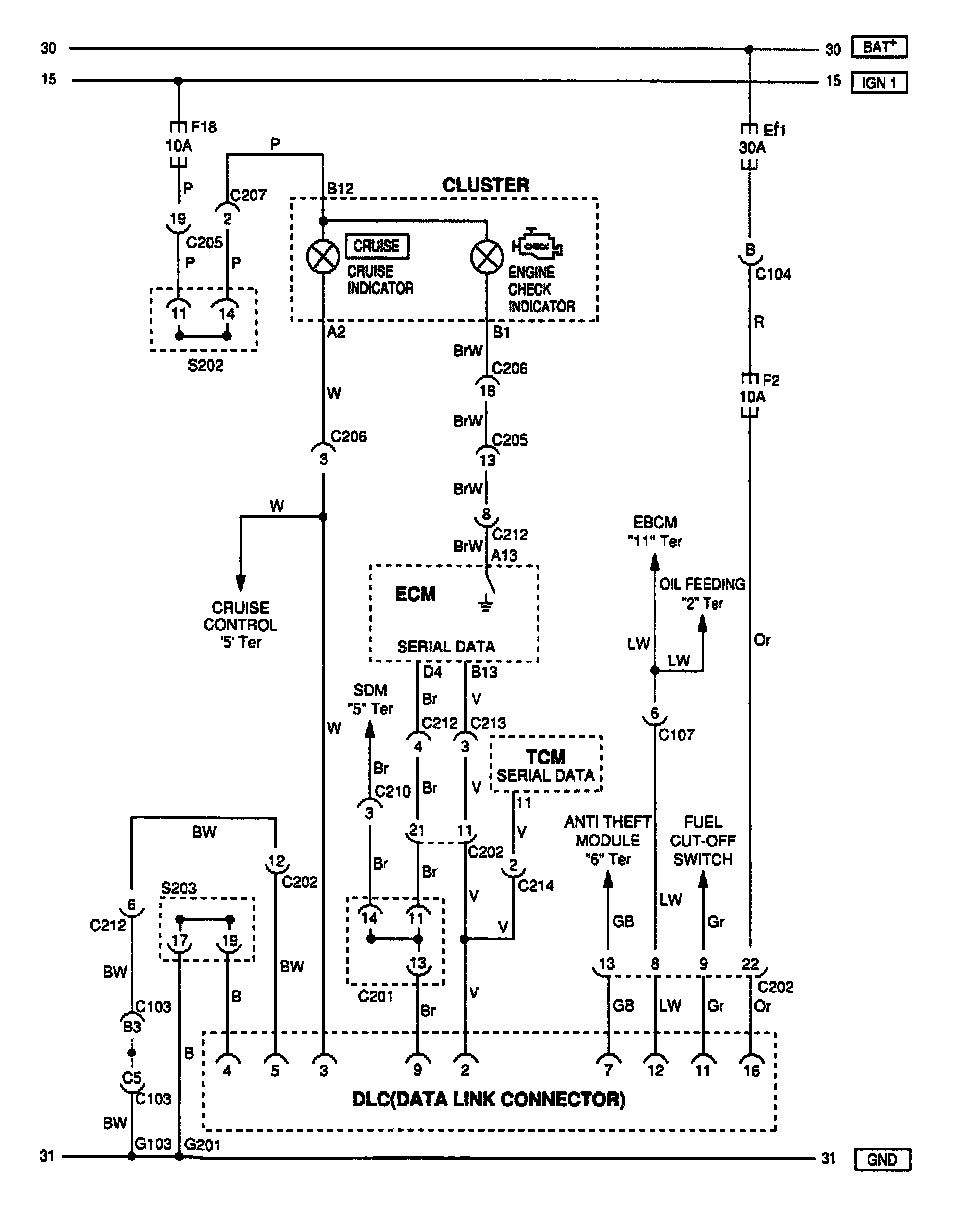

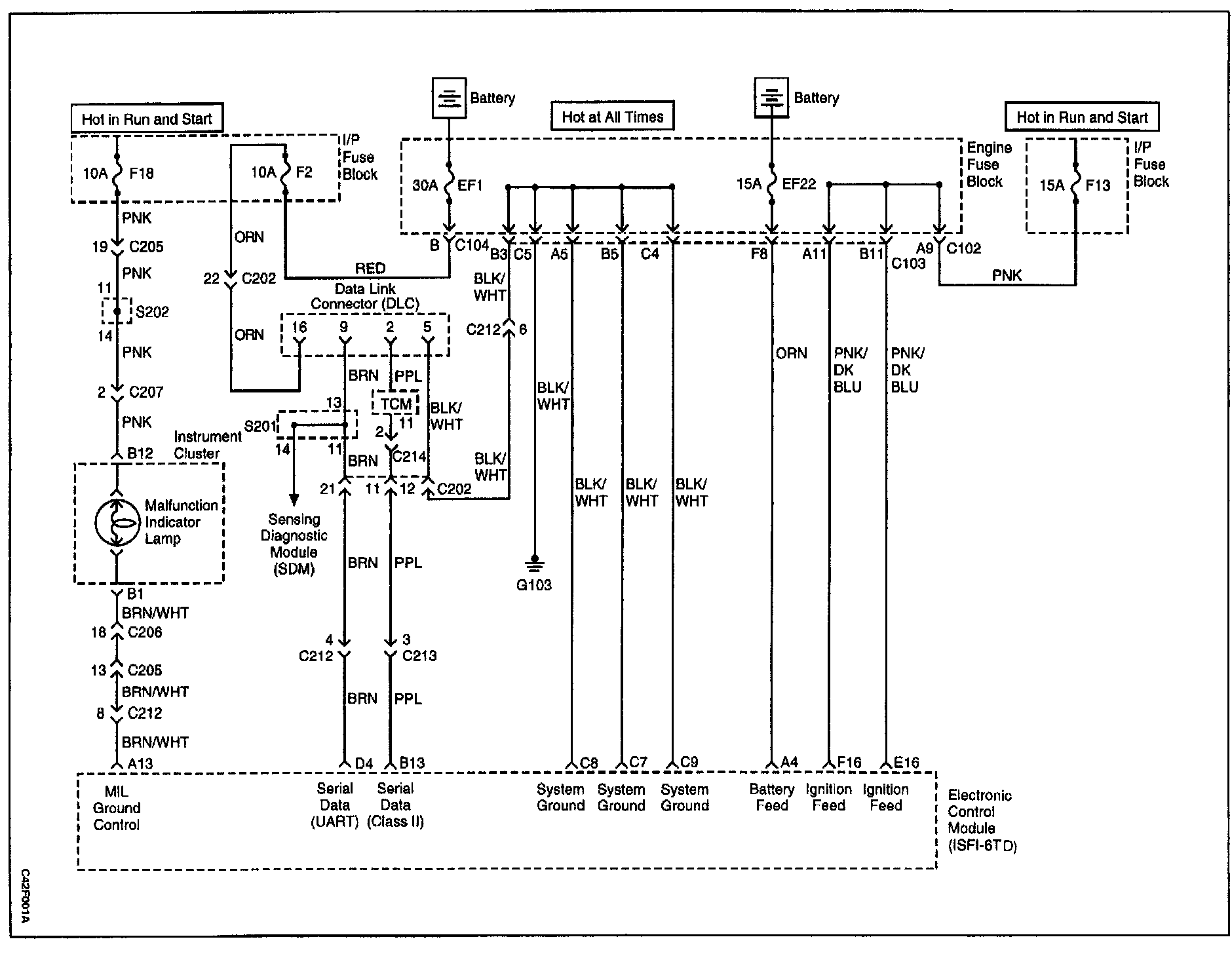

Data Link Connector, Cruise And Engine Check Indicators:

S201 Grey, S202 White And S203 White:

ECM Wiring Diagram (1 Of 6):

ECM Wiring Diagram (2 Of 6):

ECM Wiring Diagram (3 Of 6):

ECM Wiring Diagram (4 Of 6):

ECM Wiring Diagram (5 Of 6):

ECM Wiring Diagram (6 Of 6):
