Power and Ground Distribution

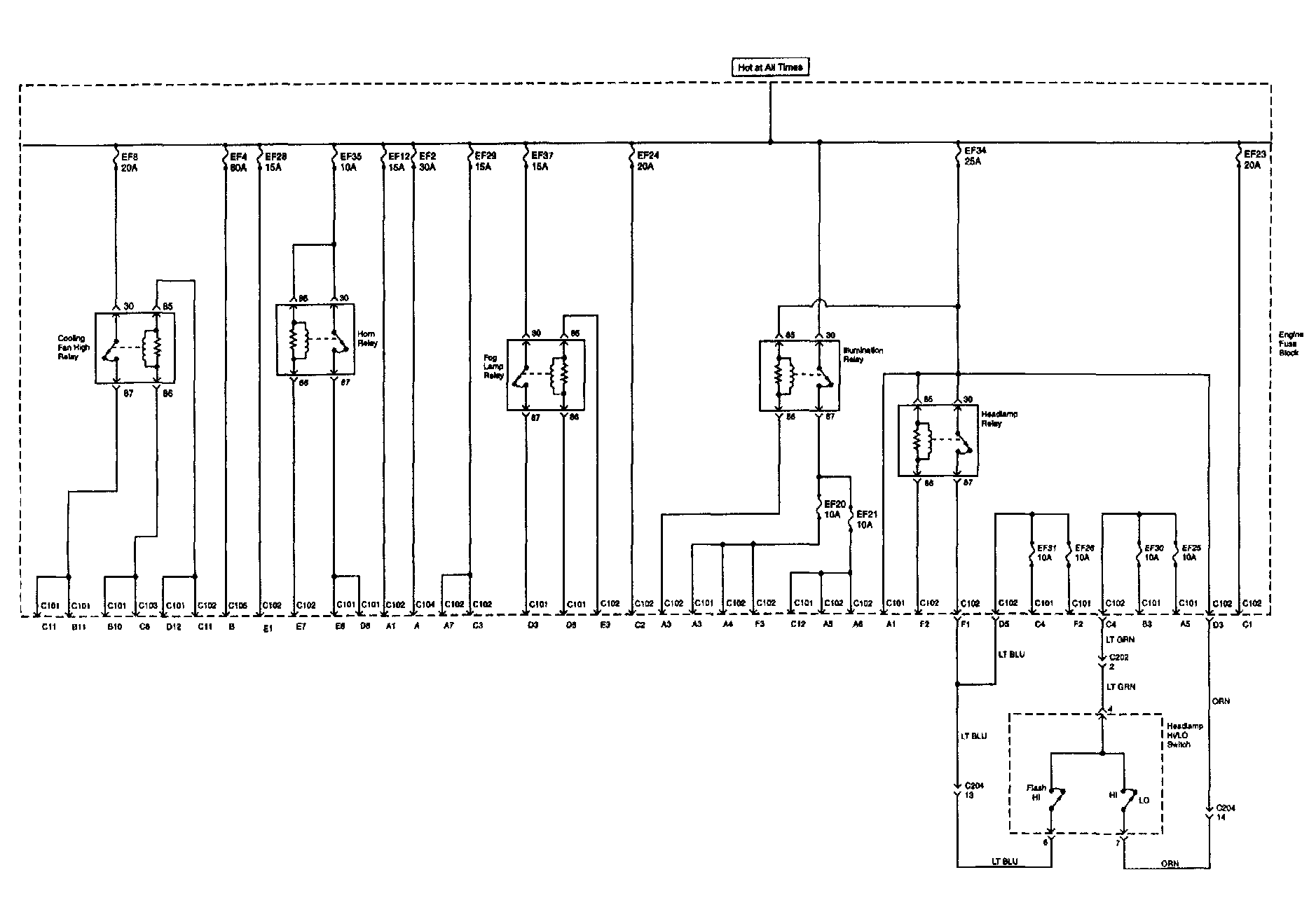

Power Distribution Schematic (Part 1 Of 2):

Power Distribution Schematic (Part 2 Of 2):

30 TER BAT+ Power Supply Circuit (Passenger Room Fuse Box):

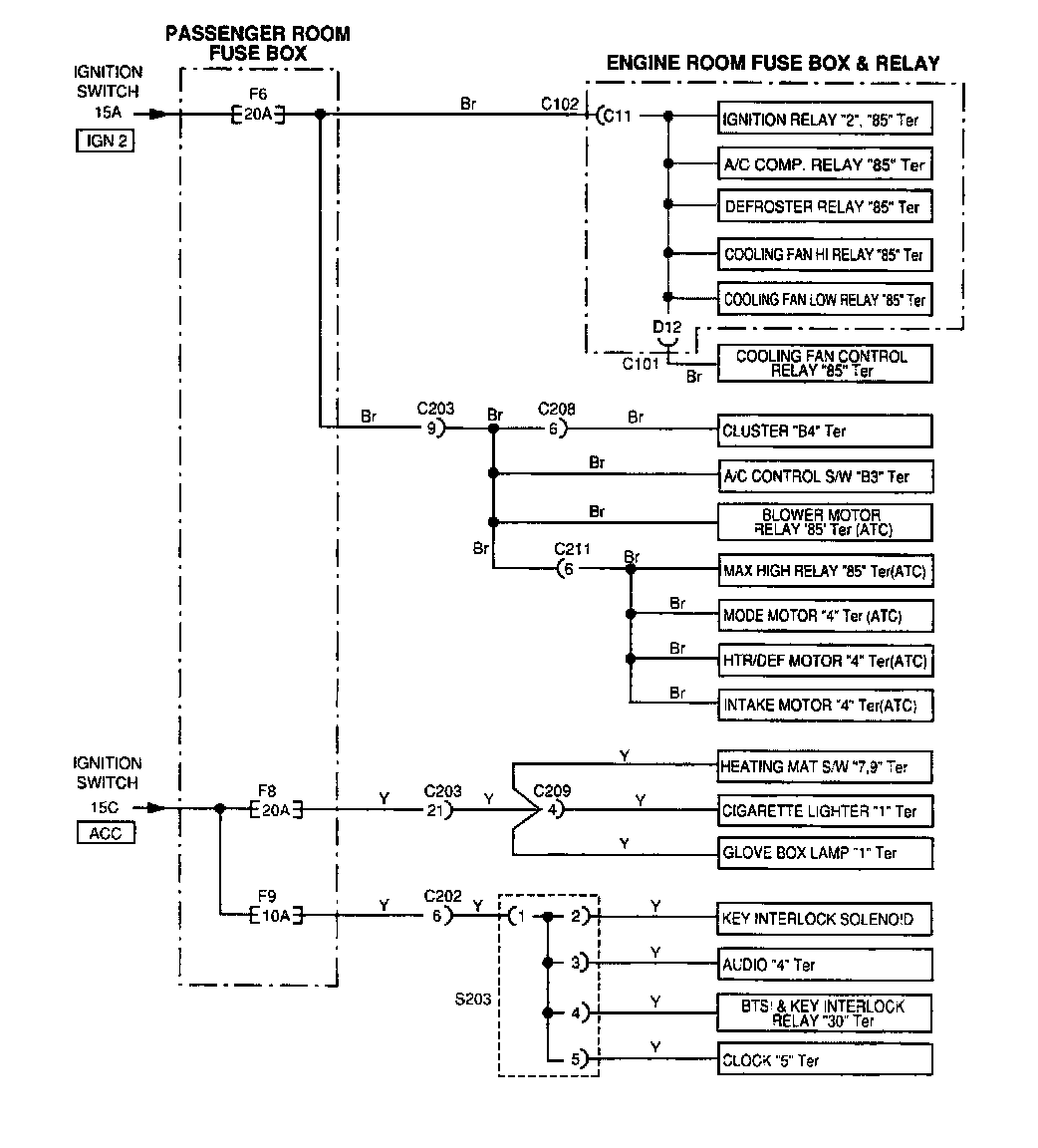

15A IGN 2, 15C ACC Power Supply Circuit (Passenger Room Fuse Box):

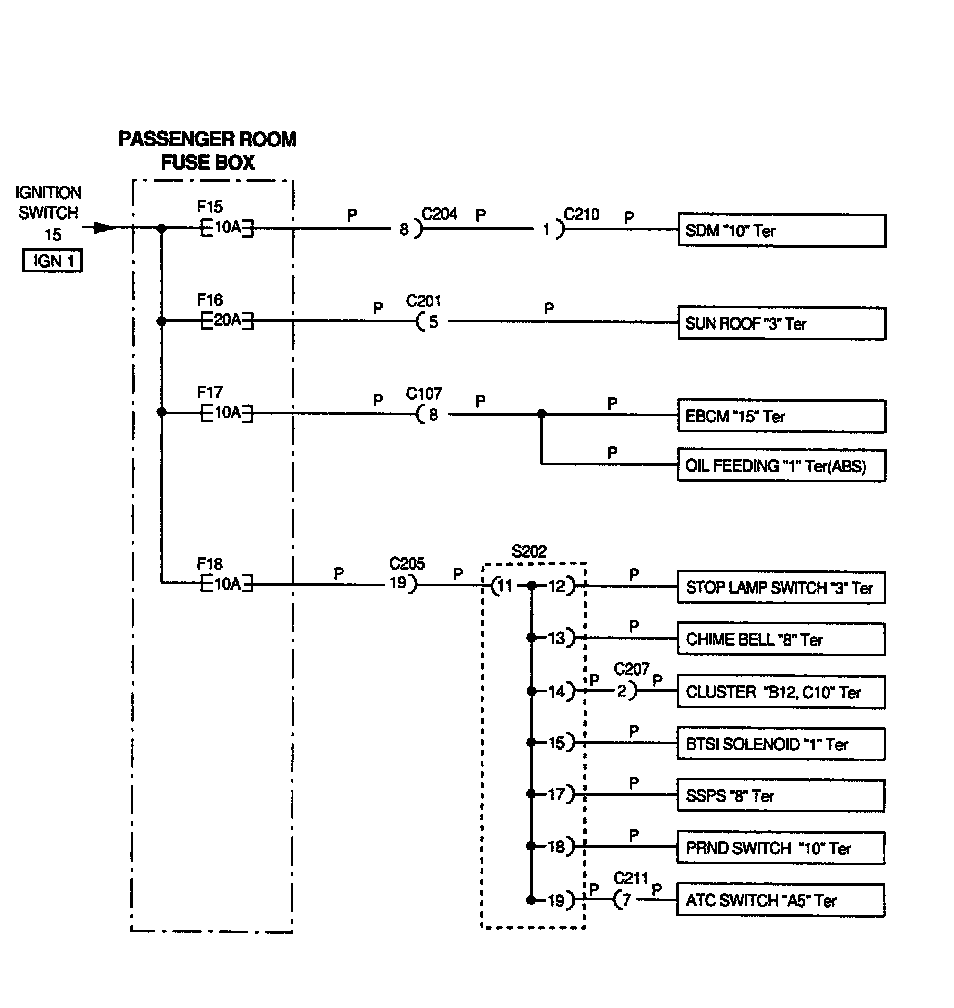

15 Ter IGN 1 Power Supply (Passenger Room Fuse Box, Part 1 Of 2):

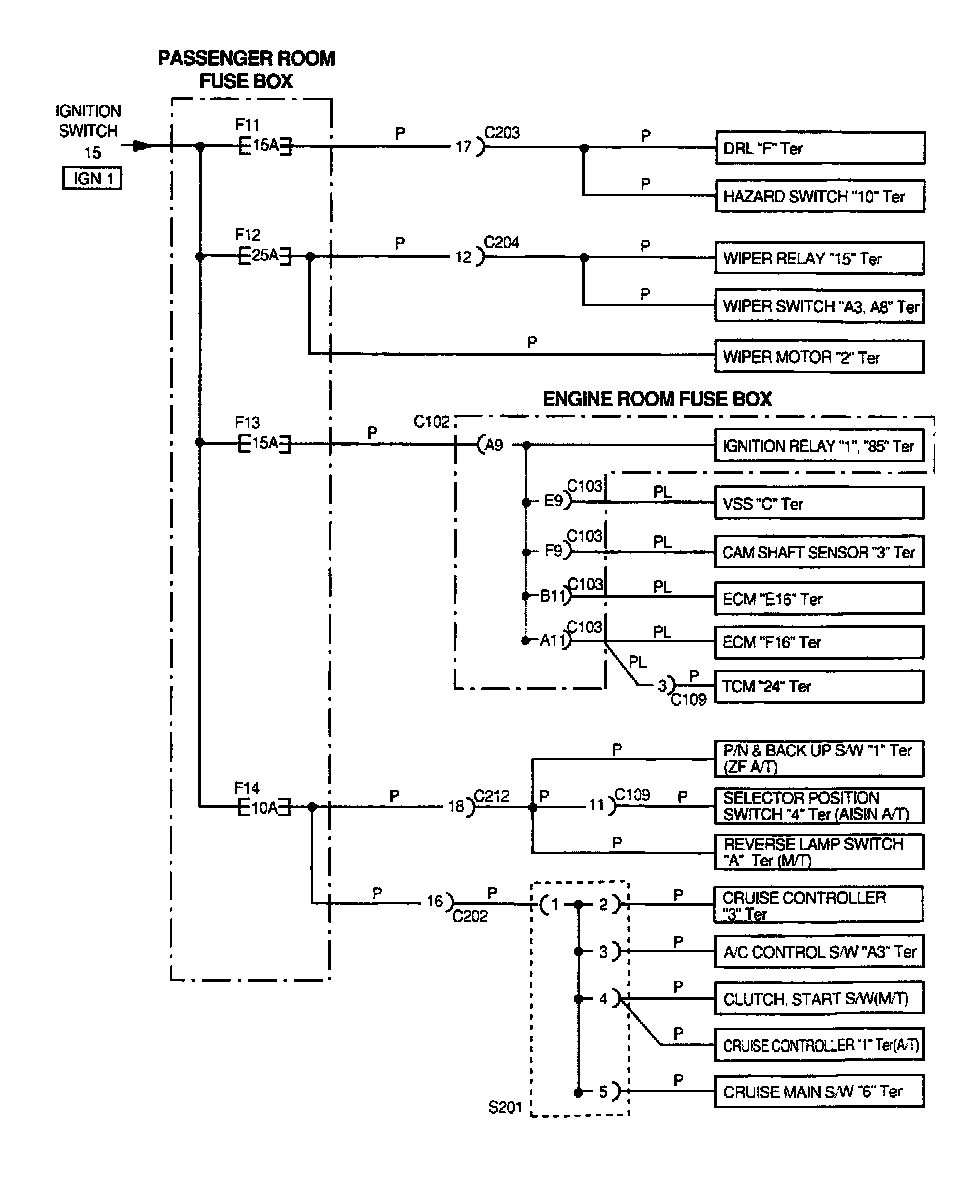

15 Ter IGN 1 Power Supply (Passenger Room Fuse Box, Part 2 Of 2):

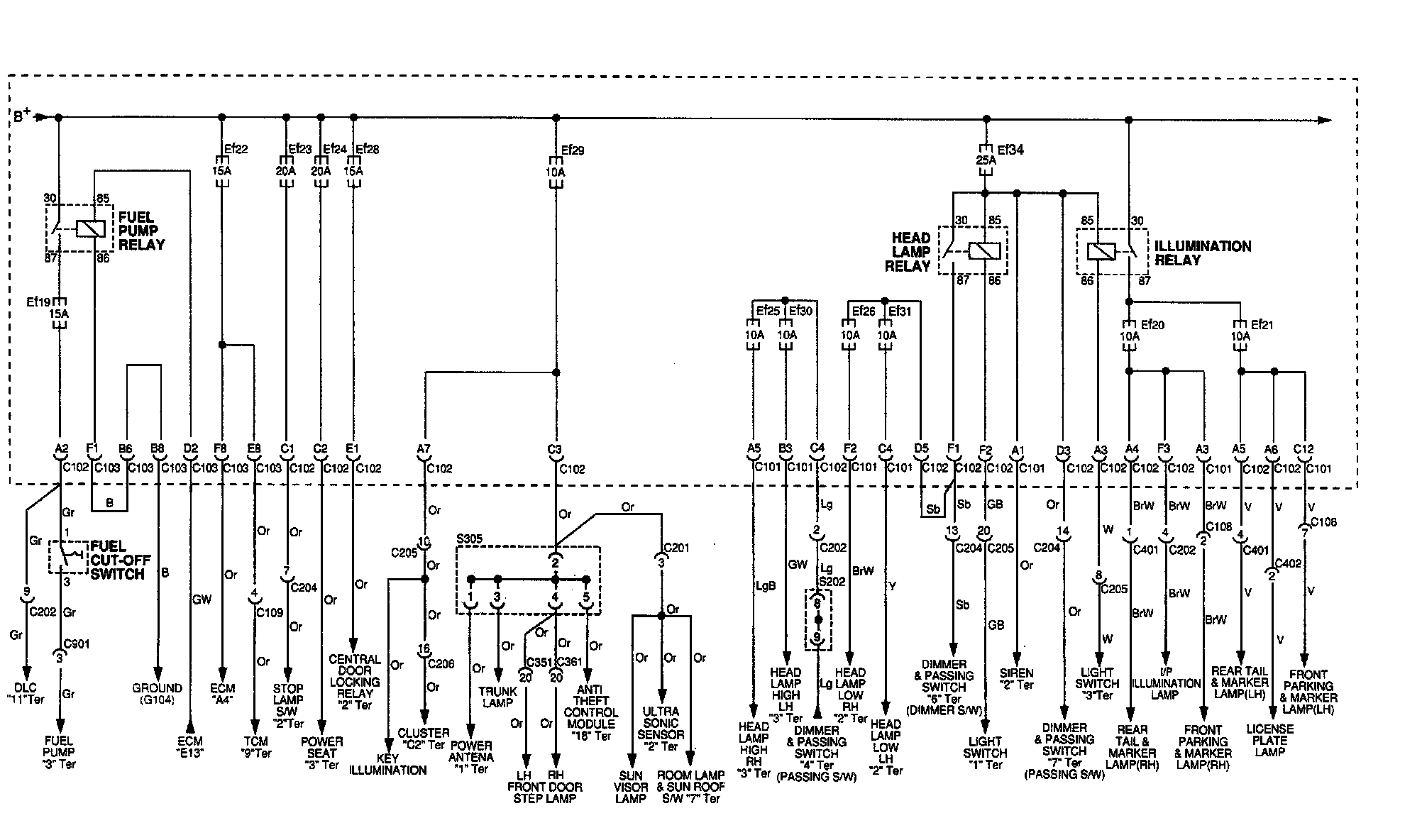

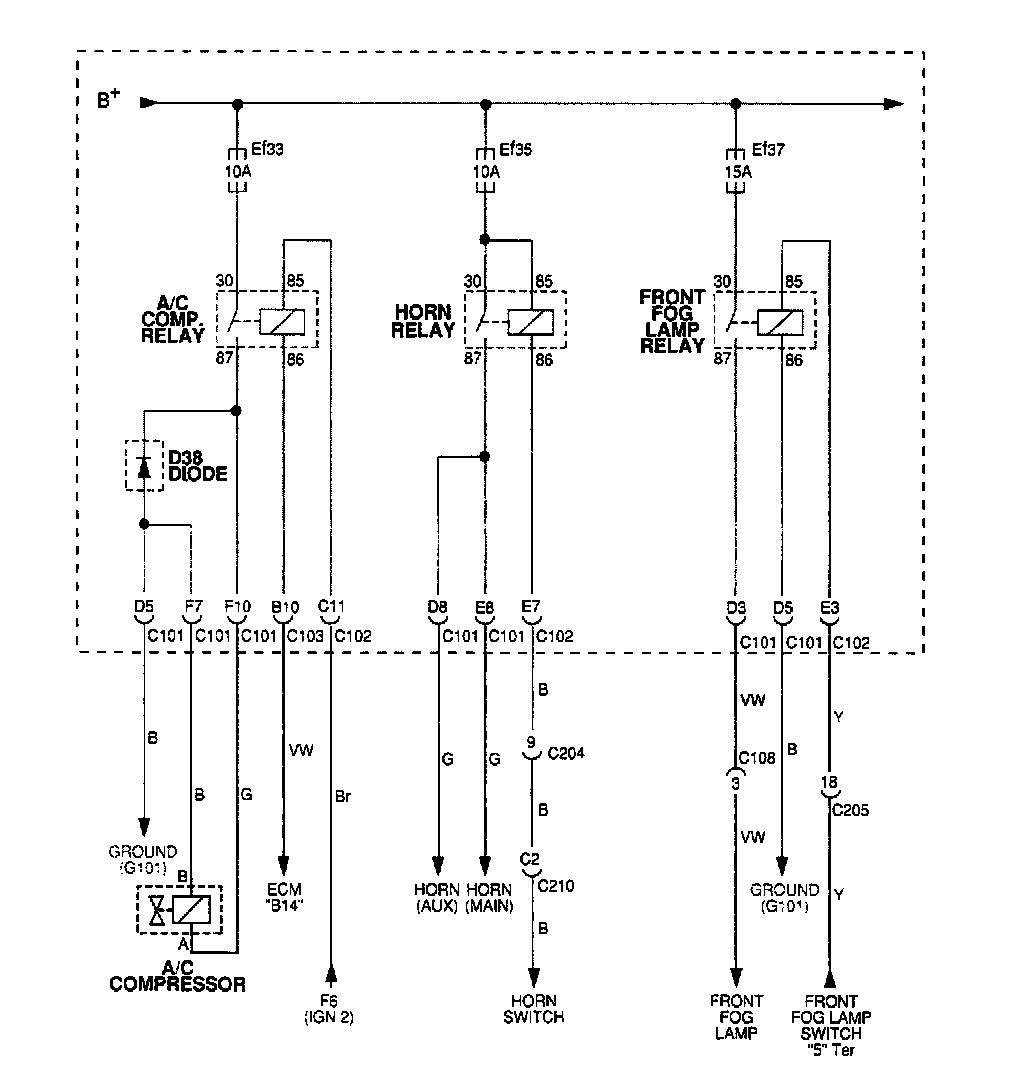

Engine Room Fuse & Relay Circuit (Part 1 Of 4):

Engine Room Fuse & Relay Circuit (Part 2 Of 4):

Engine Room Fuse & Relay Circuit (Part 3 Of 4):

Engine Room Fuse & Relay Circuit (Part 4 Of 4):
