Steering
Steering
Speed Sensitive Power Steering System (Block Diagram):

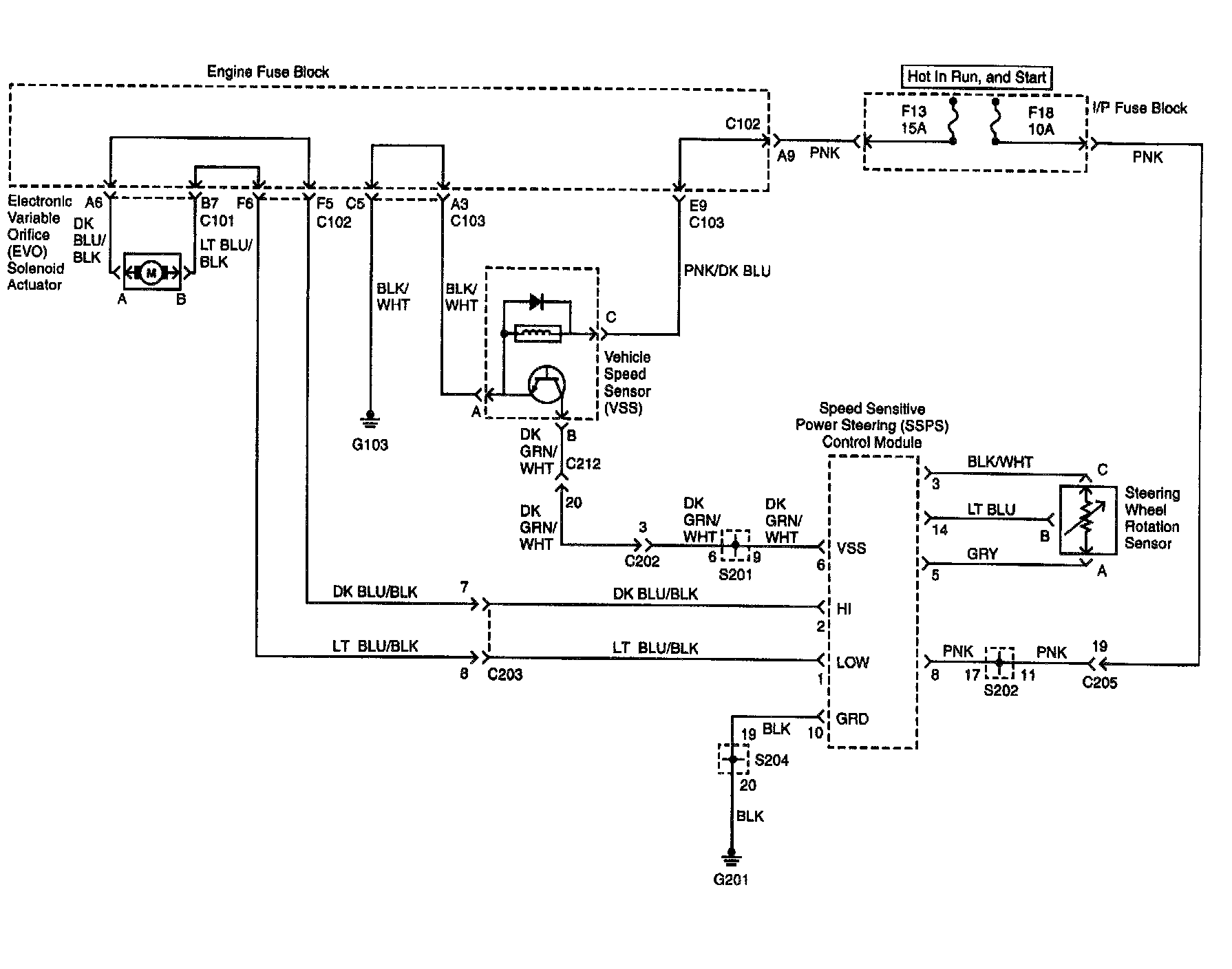

Speed Sensitive Power Steering (SSPS) Circuit:
