Home
>>
Daewoo
>>
1999
>>
Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sun Roof Circuit
>>
Electrical Diagram
Electrical Diagram

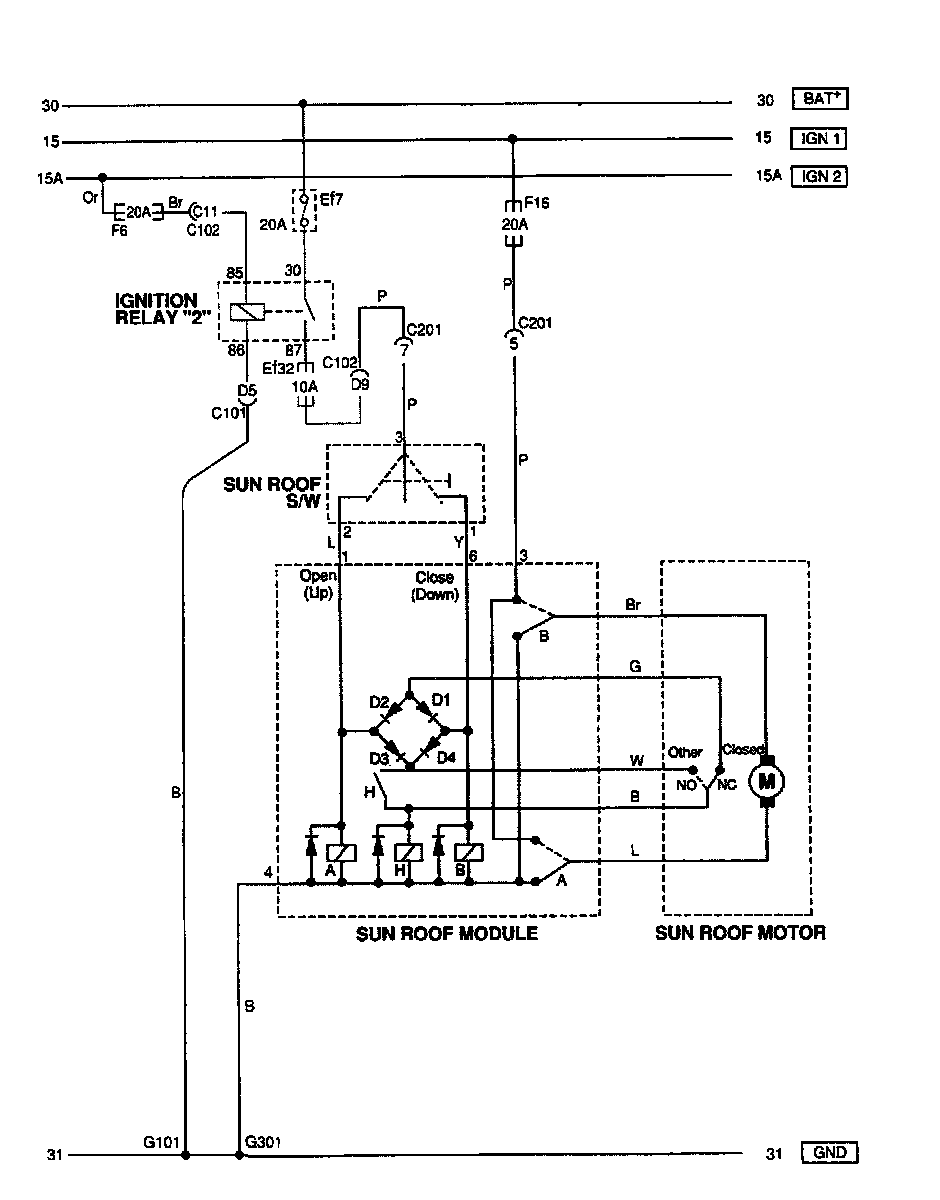

Sun Roof Circuit:
Sun Roof Block Diagram:
