Auto A/C

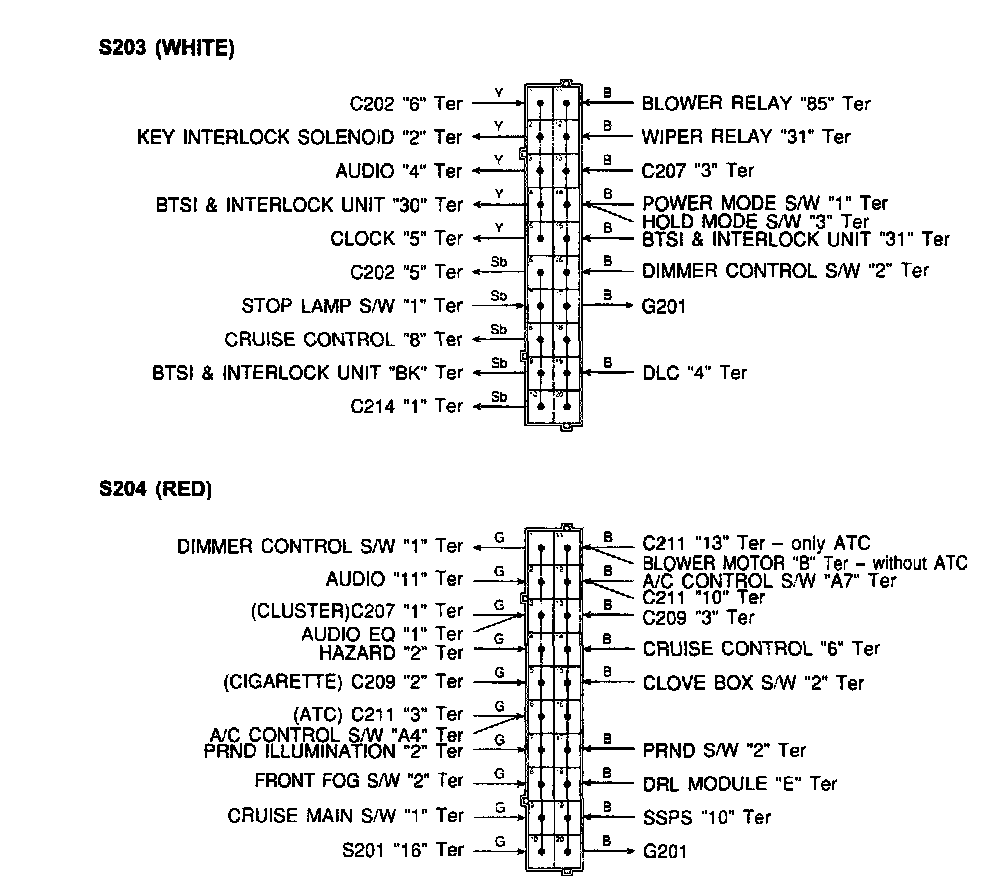

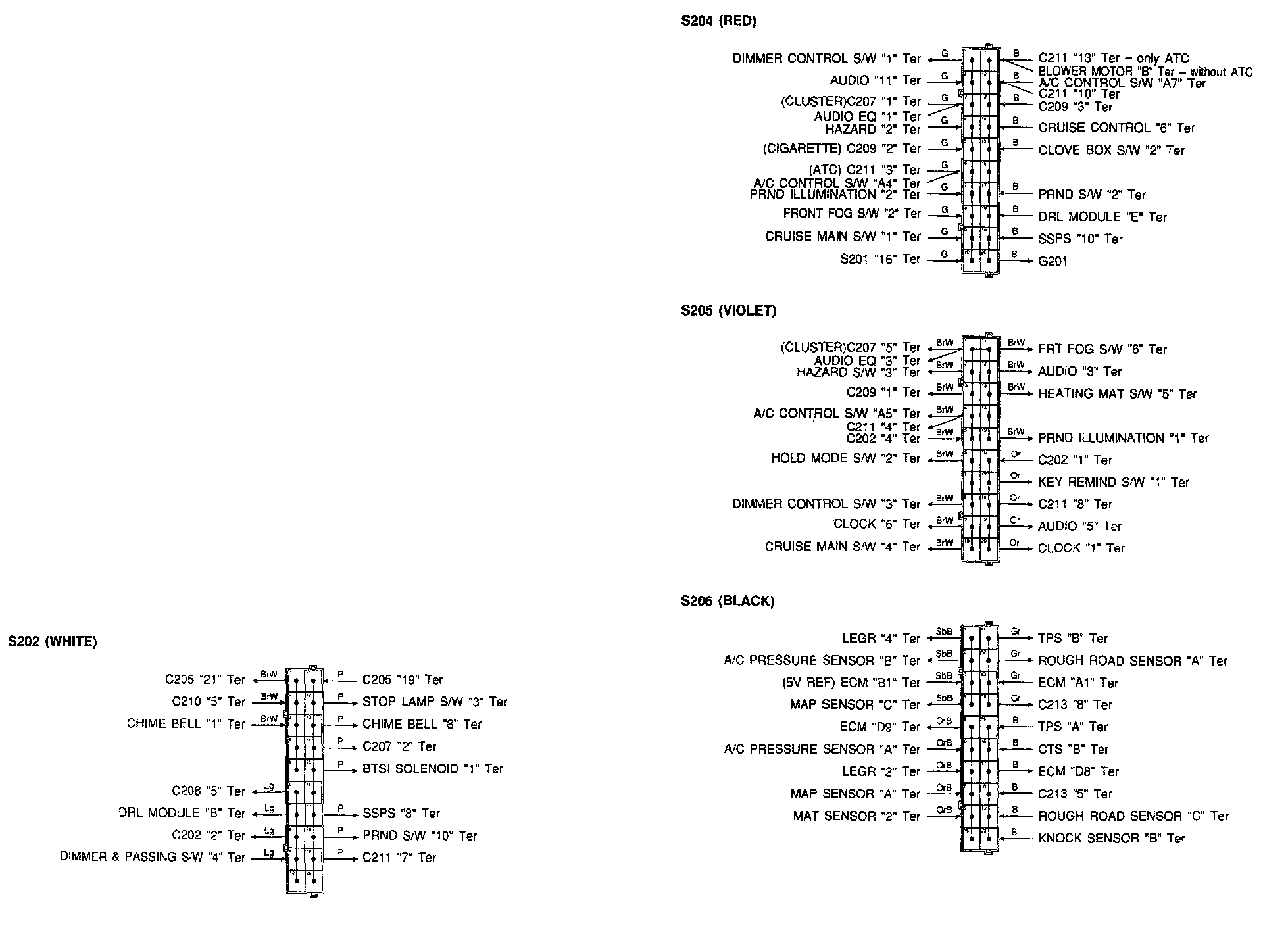

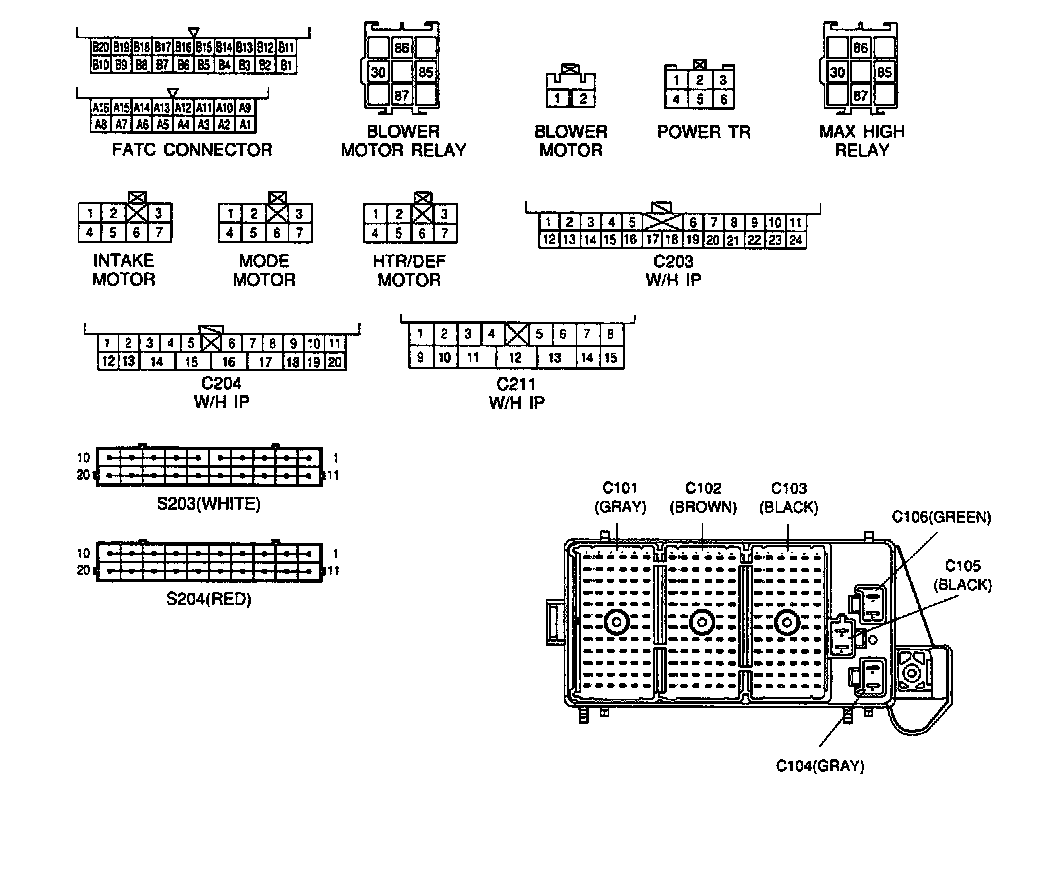

Motor (Intake, Mode, Heater/Defroster, Blower) & Power TR Circuit:



Motor (Intake, Mode, Heater/Defroster, Blower) & Power TR Circuit:

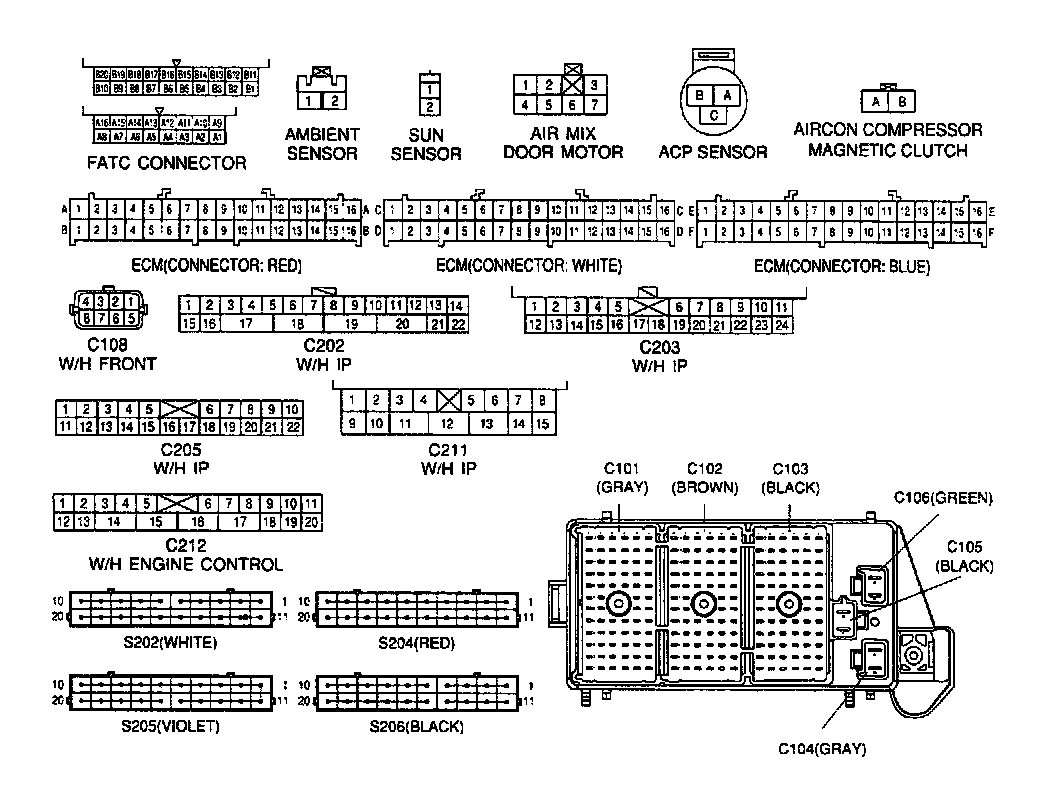

Air Mix Door Motor & A/C Comp. Sensors (Amient, Sun, Water, Incar) Circuit:



Air Mix Door Motor & A/C Comp. Sensors (Amient, Sun, Water, Incar) Circuit:
