Audible Warning Device Control Module: Testing and Inspection

Part 1 Of 2:

Part 2 Of 2:

No Chime With the Seat Belt Unfastened and the Key in the Ignition Switch

Diagnostic Aids
For headlamps reminder chime diagnosis,See Lighting Systems.

Test Description
The numbers below refer to steps on the diagnostic table.
7. The chime module is under the instrument panel on the left side.
10. The wires at the ignition switch may be RED and BLK, but they connect to ORN and LT GRN at the two-pin connector.

Part 1 Of 2:

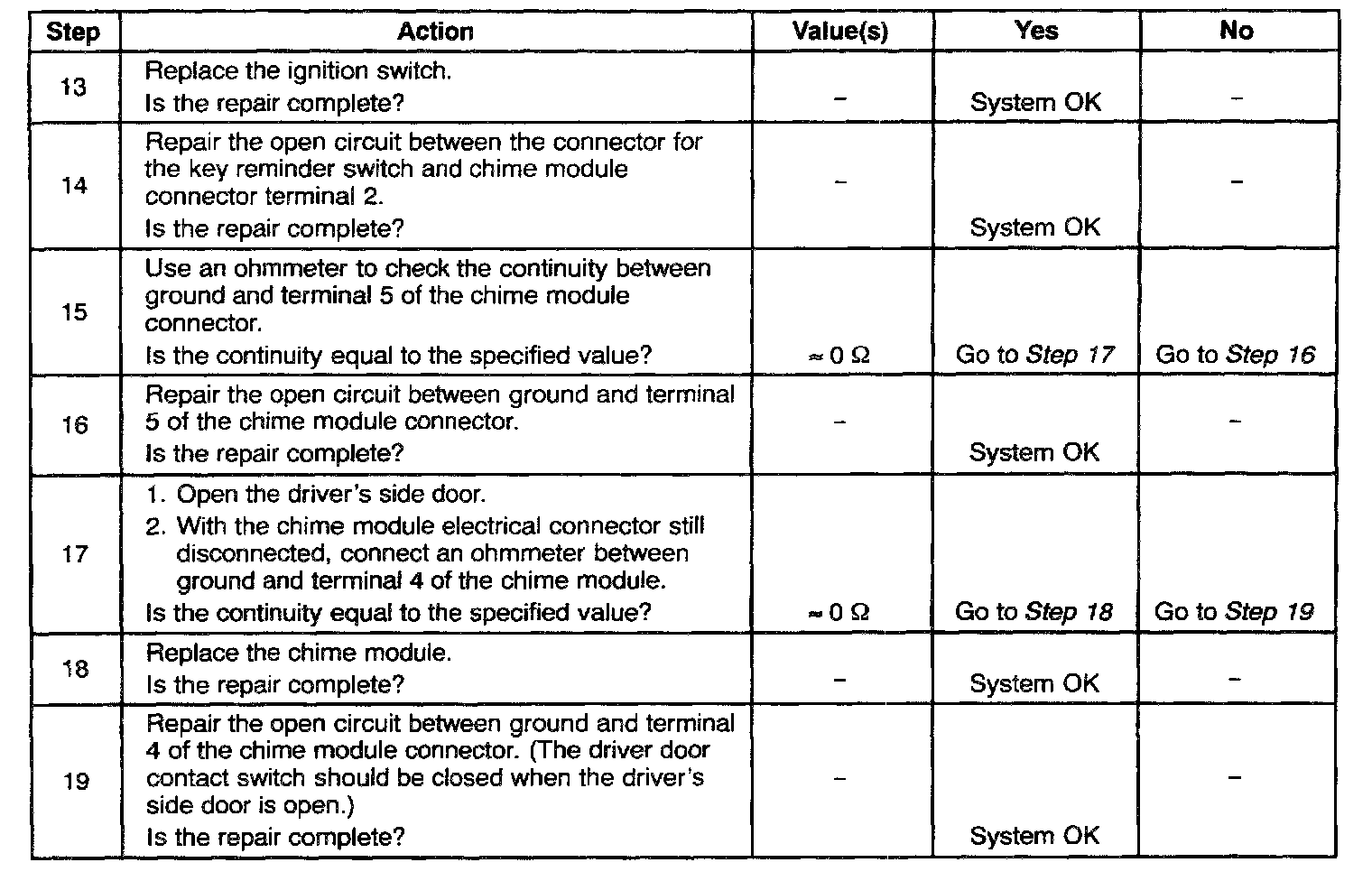

Part 2 Of 2:

No Chime With the Door Open and the Key in the Ignition Switch

Test Description
The number(s) below refer to step(s) on the diagnostic table.
7. The chime module is under the instrument panel on the left side.
10. The wires at the ignition switch may be RED and BLK, but they connect to ORN and LT GRN at the two-pin connector.
