Fuel Gauge: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the instrument cluster.

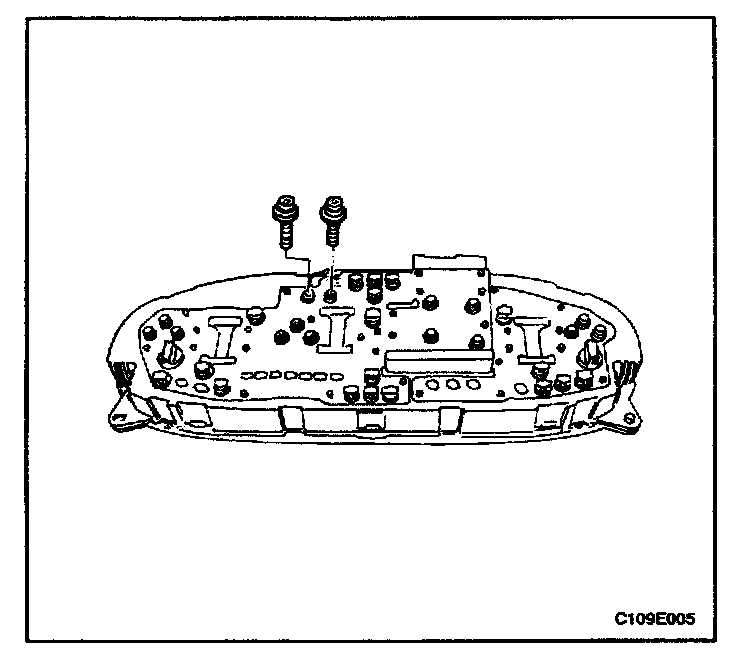

3. Remove the cluster illumination connector screws.
4. Press the clips down and remove the instrument cluster lens.




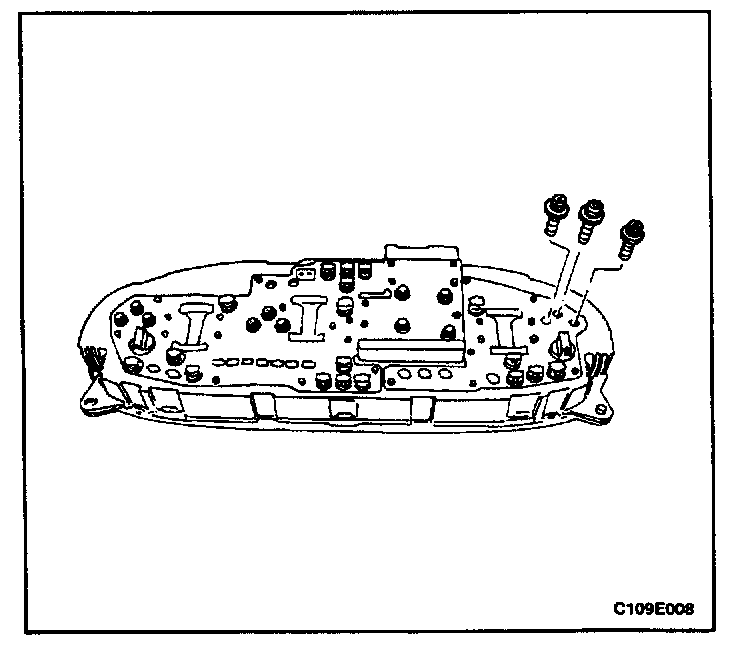

5. Remove the fuel gauge screws and the fuel gauge from the cluster assembly.

Installation Procedure




1. Install the fuel gauge to the cluster assembly with the screws.

Tighten
Tighten the fuel gauge screws to 2 Nm (18 lb.in).




2. Install the instrument cluster lens with the instrument cluster lens screws.

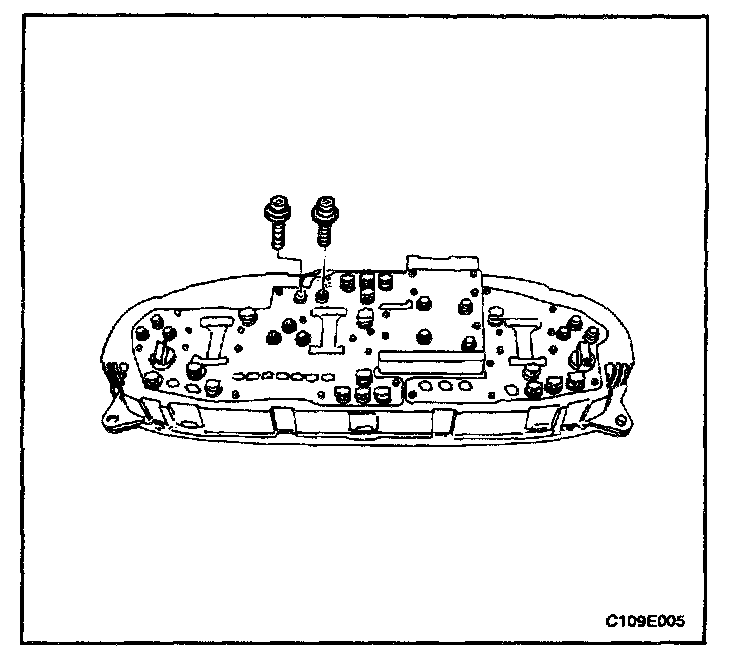

3. Install the cluster illumination connector screws.

Tighten
Tighten the cluster illumination connector screws to 2 Nm (18 lb.in).

4. Install the instrument cluster.
5. Connect the negative battery cable.
