Fuel Gauge: Testing and Inspection

Fuel Gauge Inoperative

Test Description

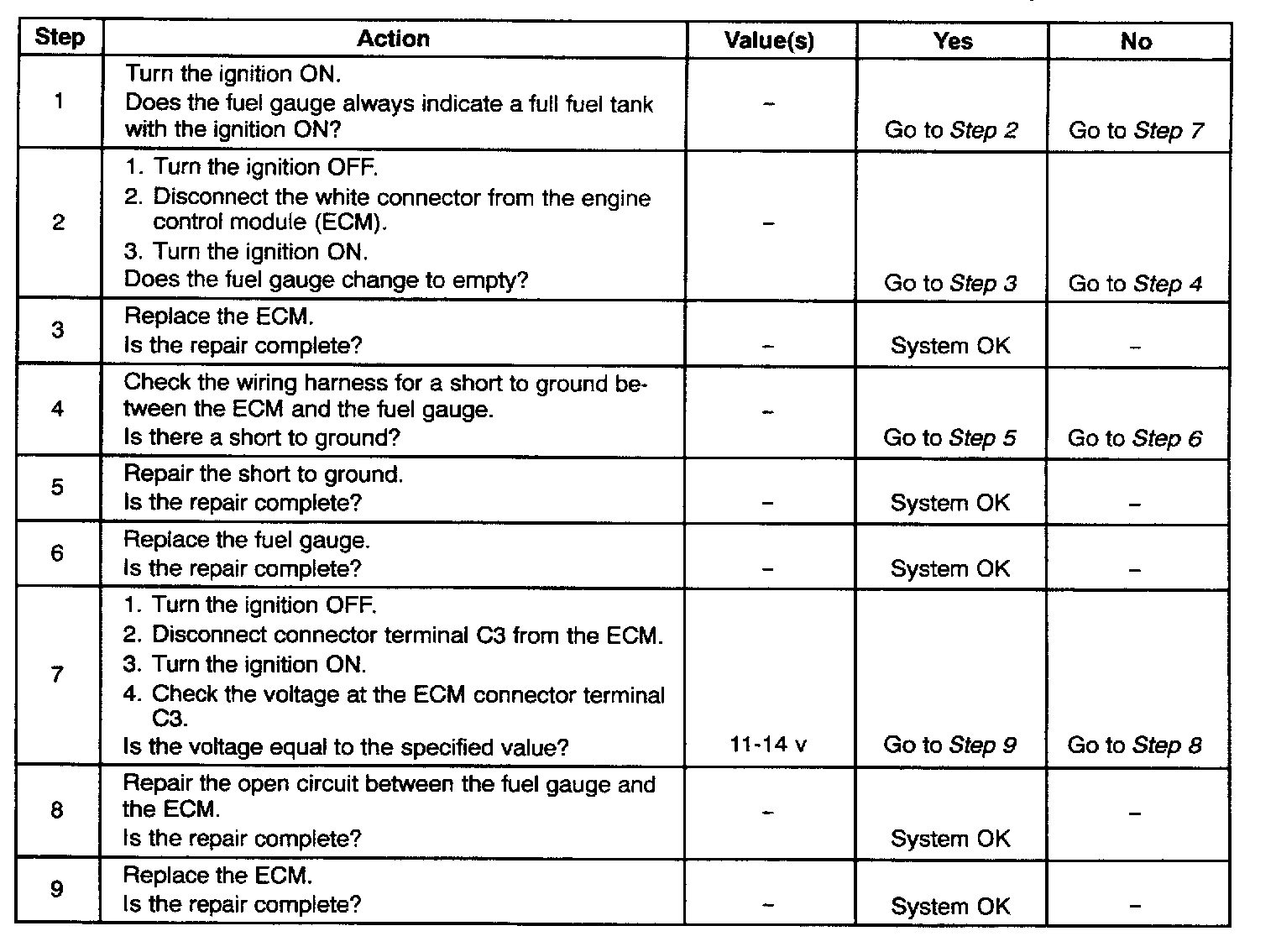

The numbers below refer to steps or, the diagnostic table.
1. Begin the diagnostic table at Step 1 if the problem is that the fuel gauge always indicates full. Begin the diagnostic table at Step 7 if the problem is that the fuel gauge always indicates empty.
