Tachometer: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the instrument cluster.
3. Remove the cluster illumination connector screws.




4. Press the clips down and remove the instrument cluster lens.

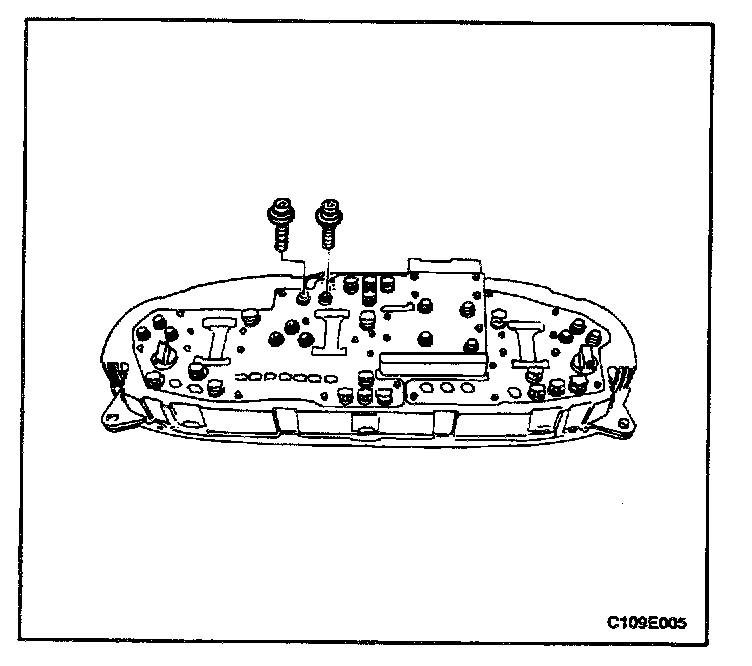

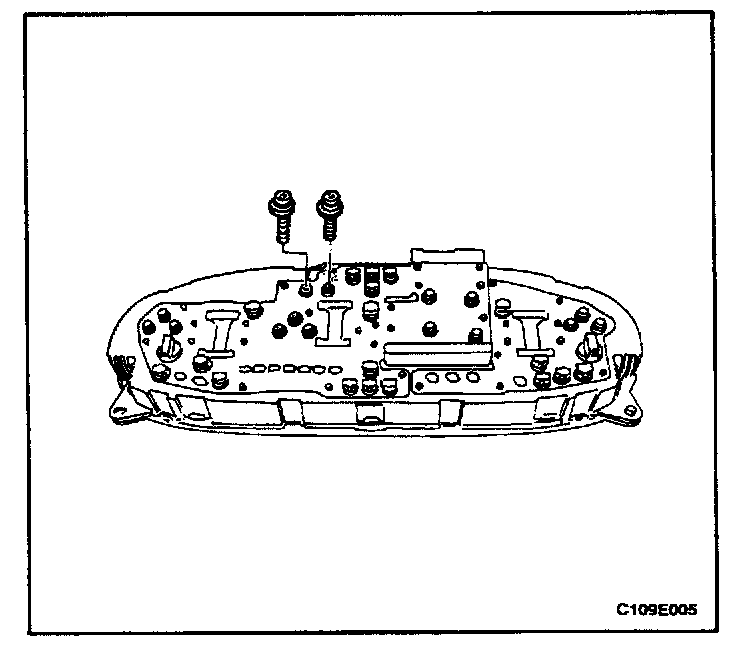

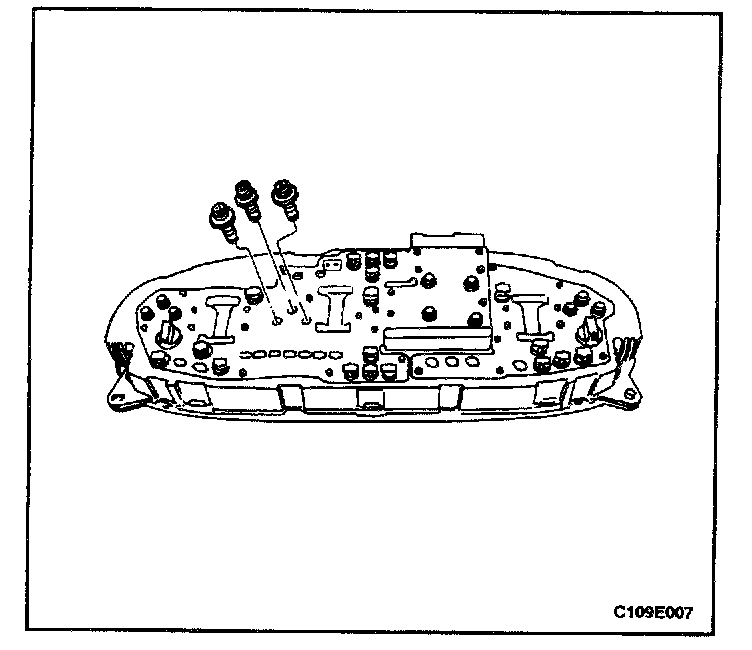

5. Remove the screws and the tachometer from the instrument cluster.

Installation Procedure




1. Install the tachometer to the instrument cluster with the screws.

Tighten
Tighten the tachometer screws to 2 Nm (18 lb.in).




2. Install the instrument cluster lens with the screws.
3. Install the cluster illumination connector screws.

Tighten
Tighten the cluster illumination connector screws to 2 Nm (18 lb.in).

4. Install the instrument cluster.
5. Connect the negative battery cable.
