Fog/Driving Lamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

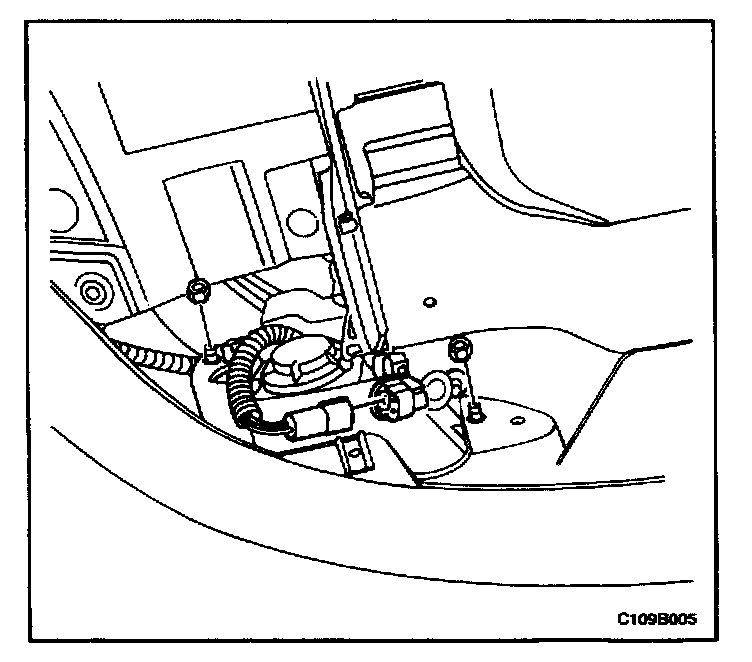

2. Remove the nuts that secure the fog lamp assembly.
3. Remove the fog lamp assembly.
4. Disconnect the fog lamp assembly electrical connector.




5. Remove the fog lamp access cover.
6. Remove the retaining wire.
7. Remove the bulb from the fog lamp assembly.
8. Disconnect the bulb electrical connector.

Installation Procedure




1. Connect the bulb electrical connector.
2. Install the replacement bulb into the fog lamp assembly.
3. Install the retaining wire.
4. Install the fog lamp access cover.






NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

5. Install the fog lamp assembly with the nuts.
6. Connect the fog lamp assembly electrical connector.

Tighten
Tighten the fog lamp assembly nuts to 2 Nm (18 lb.in).

7. Connect the negative battery cable.
